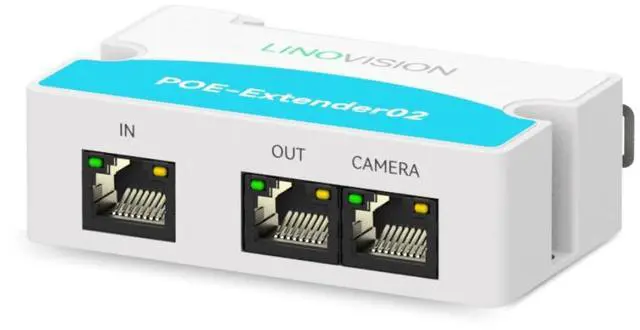

Mini 2 Port POE Extender
Merchant Video

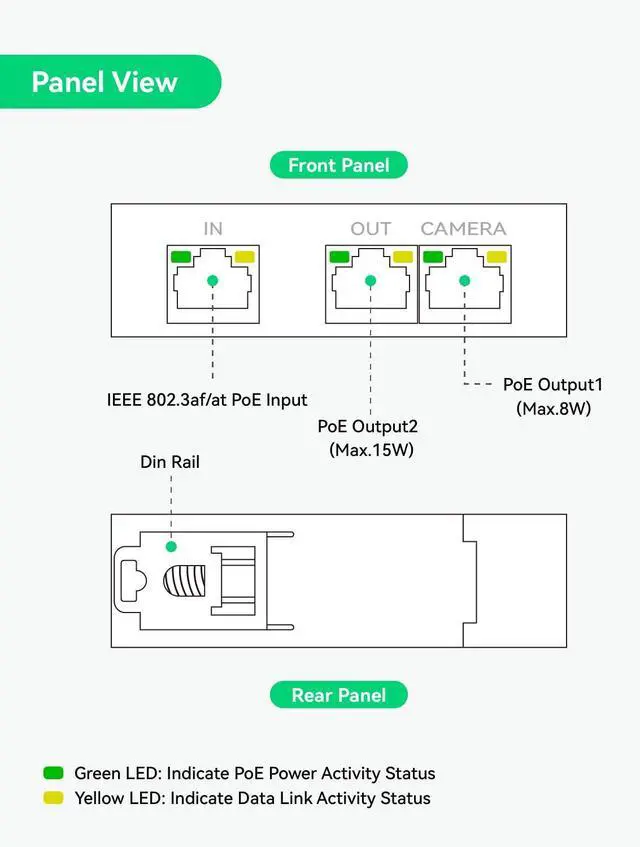

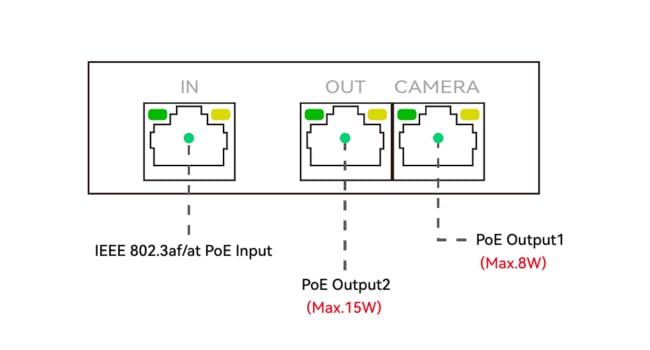

Interface detail
- The CAMERA Port: max 8W power consumption, the OUT Port: max 15W
- The POE input port: POE Mode A/B, 2 output ports: POE Mode A/B
- Max bandwidth :100Mbps
- Green LED: Indicate PoE Power Activity Status. Working status: Always on
- Yellow LED: Indicate Data Link Activity Status. Working status: Flashing
Excellent Compatibility and Safety

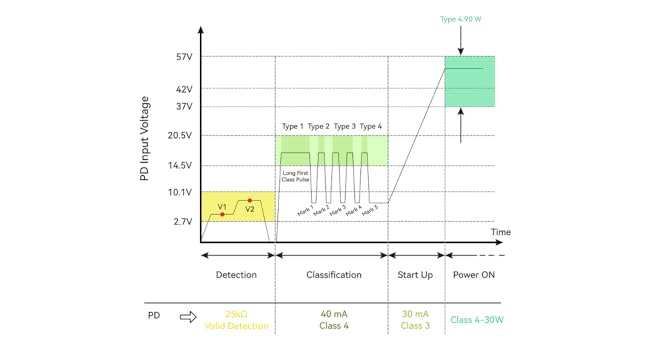

- Using hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices
Key Specification
Does this extender need an addition power supply?
No, it does not require local power supply. This PoE extender is powered by PoE devices (48V or 53V PoE Switch/PoE NVR/PoE Injector/Mid-span).

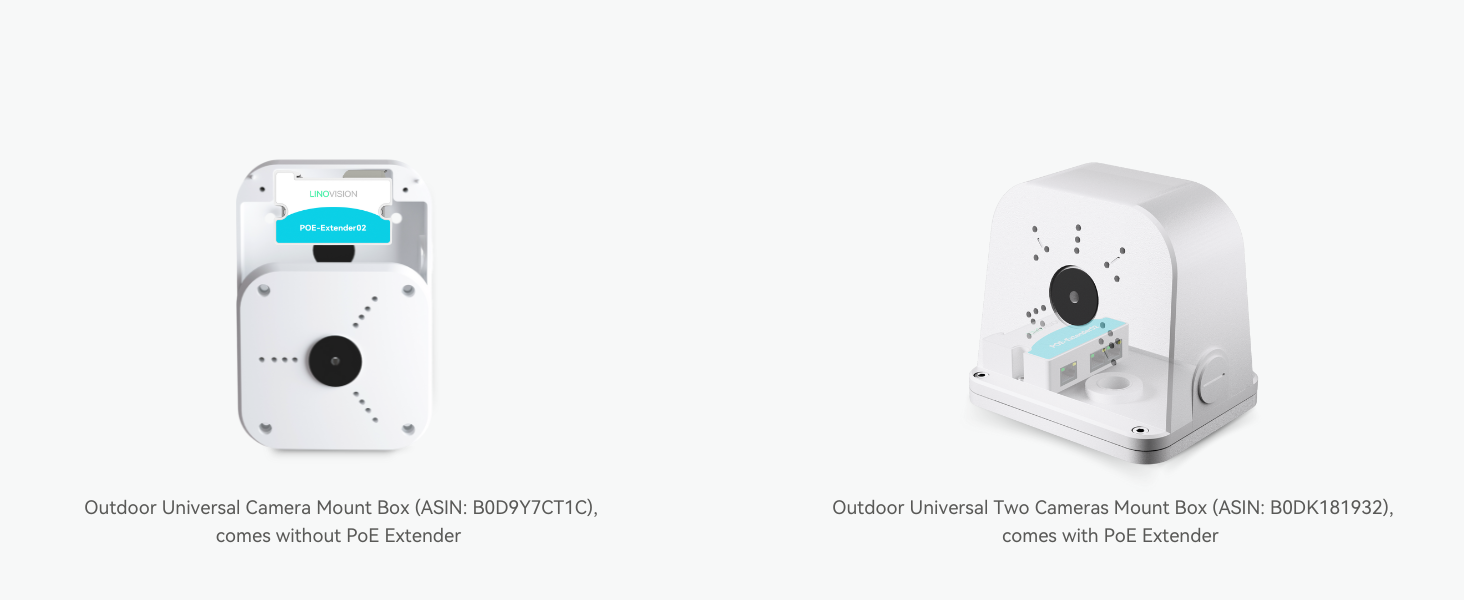

Can this extender be installed outdoors?
This PoE Extender is not waterproof, there is a version with waterproof box, please search ASIN: B0DK181932.

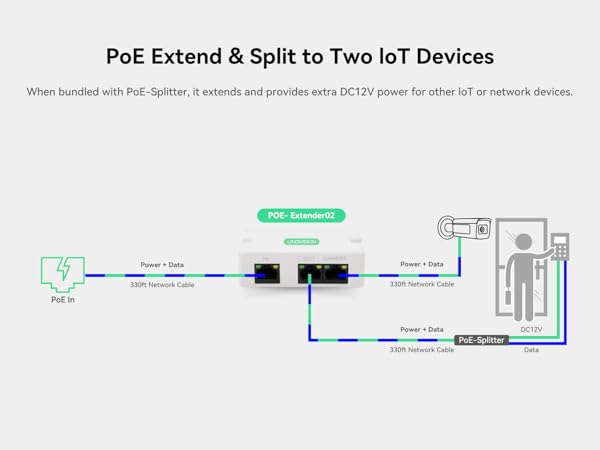

Can this be used as an ethernet splitter to connect non-PoE devices?
Yes, Our PoE Extender supports connecting PoE devices and non-PoE devices. When connecting non-PoE devices, only data is transmitted, the non-PoE devices need to be powered separately.
Why the extender is unable to work?
The main reason is that the load capacity of two PoE outputs exceeds the power input of PoE Extender. In this way, please try to use 60W high PoE injector or mid-span to fix this issue.
What is the load capacity of PoE device that connected to this PoE extender?
Basically, the load capability depends on the PoE supply device, the total power consumption of two PoE output is less than the PoE power input. We recommend to use 60W High PoE injector to connect to the PoE extender.
LINOVISION PoE Extender Selection Guide
 POE-Extender02 |  POE-Extender02WP2 |  POE-EXT02G |  POE-EXT6002GP |  POE-EXT3001GP |  POE-EXT3001LP(2 Pack) |  POE-EXT04 | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
PoE Input | Max 30W | Max 30W | Max 30W | Max 90W | Max 30W | Max 30W | Max 90W |
PoE Output | 1 x16W + 1 x 8W | 1 x16W + 1 x 8W | 2x 30W | 1 x 60W + 1 x 30W | 1x 30W | 1x 30W | 4 x 30W |
PoE Standard | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt |
Total PoE Budget | 30W | 30W | 30W | 90W | 30W | 30W | 80W |
Extend Data Transmission Range | 330ft (100m) | 330ft (100m) | 330ft (100m) | 330ft (100m) | 330ft (100m) | Max.2600ft(800m), Paired mode | 330ft (100m) |
Ethernet Speed | 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | 10/100Mbps | Gigabit |
Waterproof | ? | ? | ? | ? | ? | ? | ? |

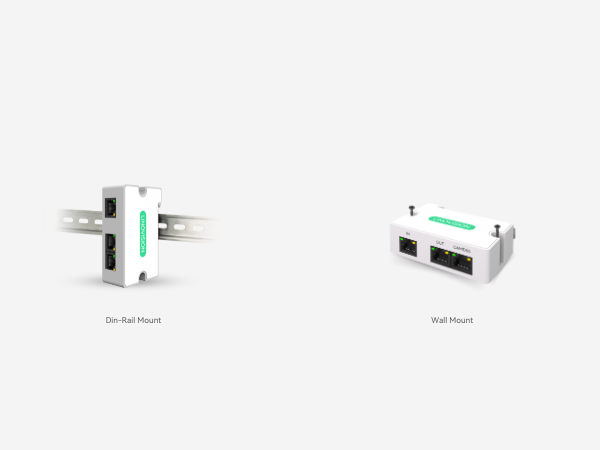

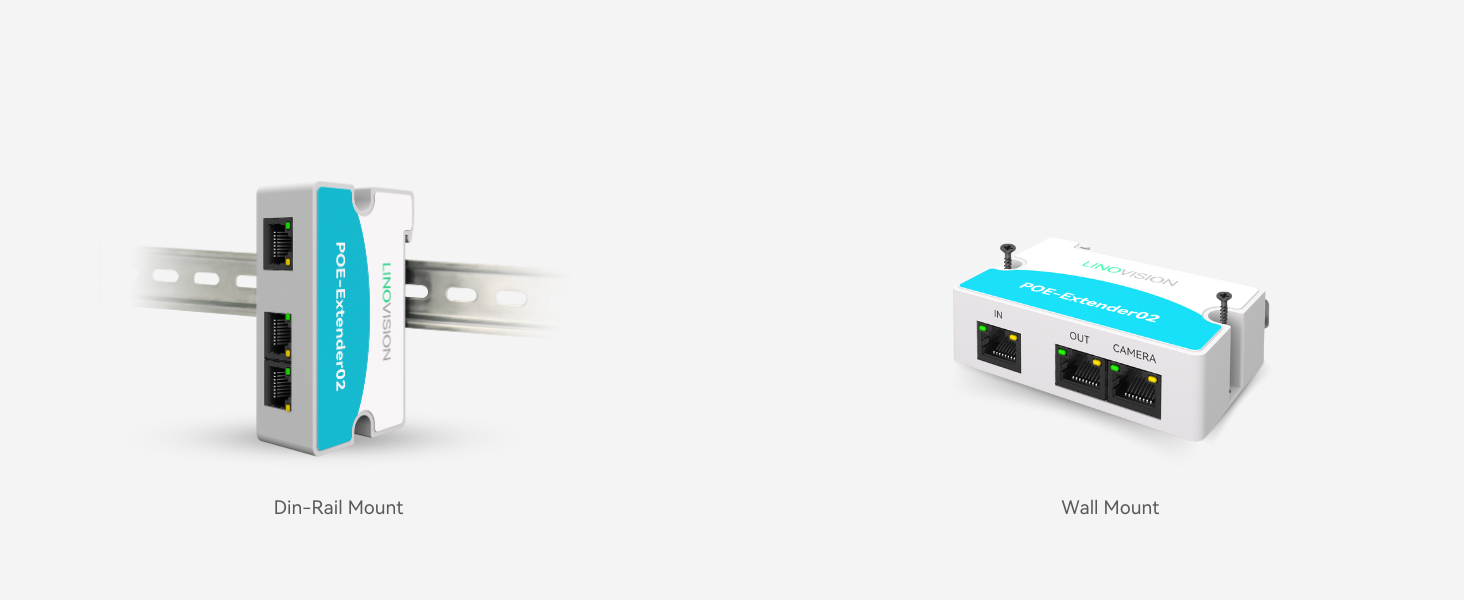

Installation Method | Wall/Din Rail Mount | Wall Mount | Din Rail Mount | Wall Mount | / | / | / |
Mini 2 Port POE Extender
Merchant VideoInterface detail
- The CAMERA Port: max 8W power consumption, the OUT Port: max 15W
- The POE input port: POE Mode A/B, 2 output ports: POE Mode A/B
- Max bandwidth :100Mbps
- Green LED: Indicate PoE Power Activity Status. Working status: Always on
- Yellow LED: Indicate Data Link Activity Status. Working status: Flashing
Excellent Compatibility and Safety
- Using hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices
Key Specification
| PoE Input | 1*10/100 Base-T RJ45 port; Compliant to IEEE802.3af/at PoE standard; |
|---|---|

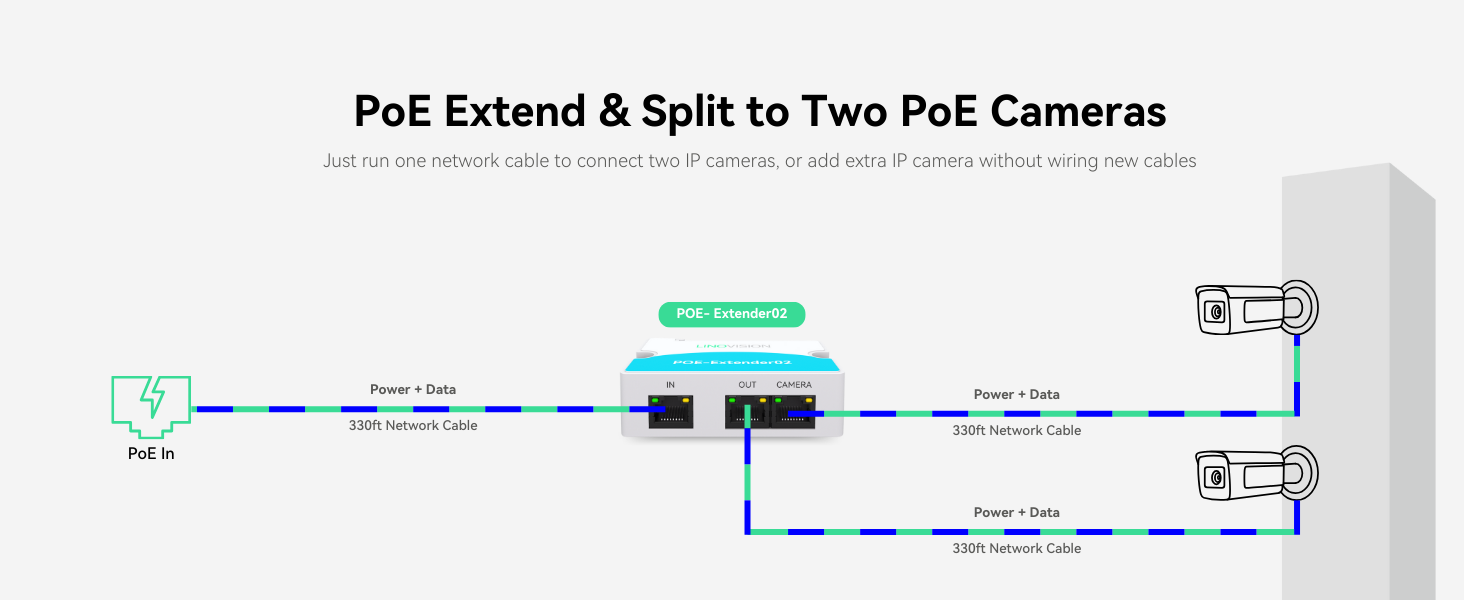

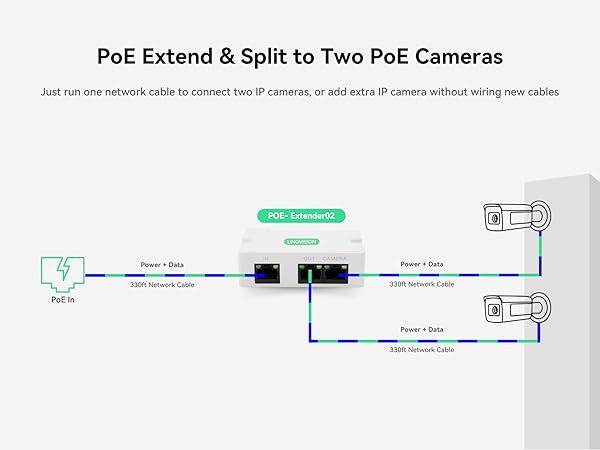

| PoE Output | 2*10/100 Base-T RJ45 ports; CAMERA Port: compliant to IEEE802.3af PoE standard, max 8W power consumption; OUT Port: compliant to IEEE802.3af/at PoE standard, max 16W power consumption; |

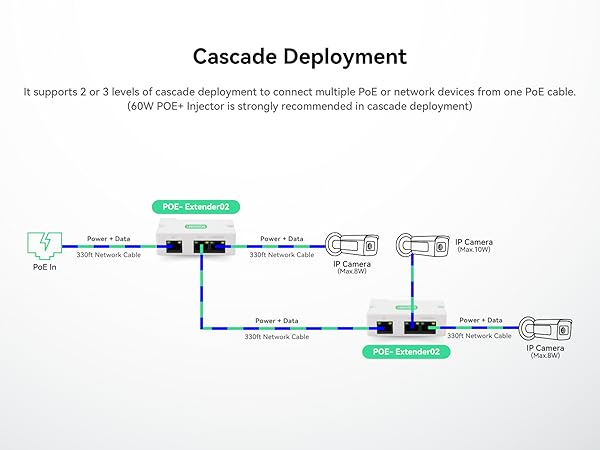

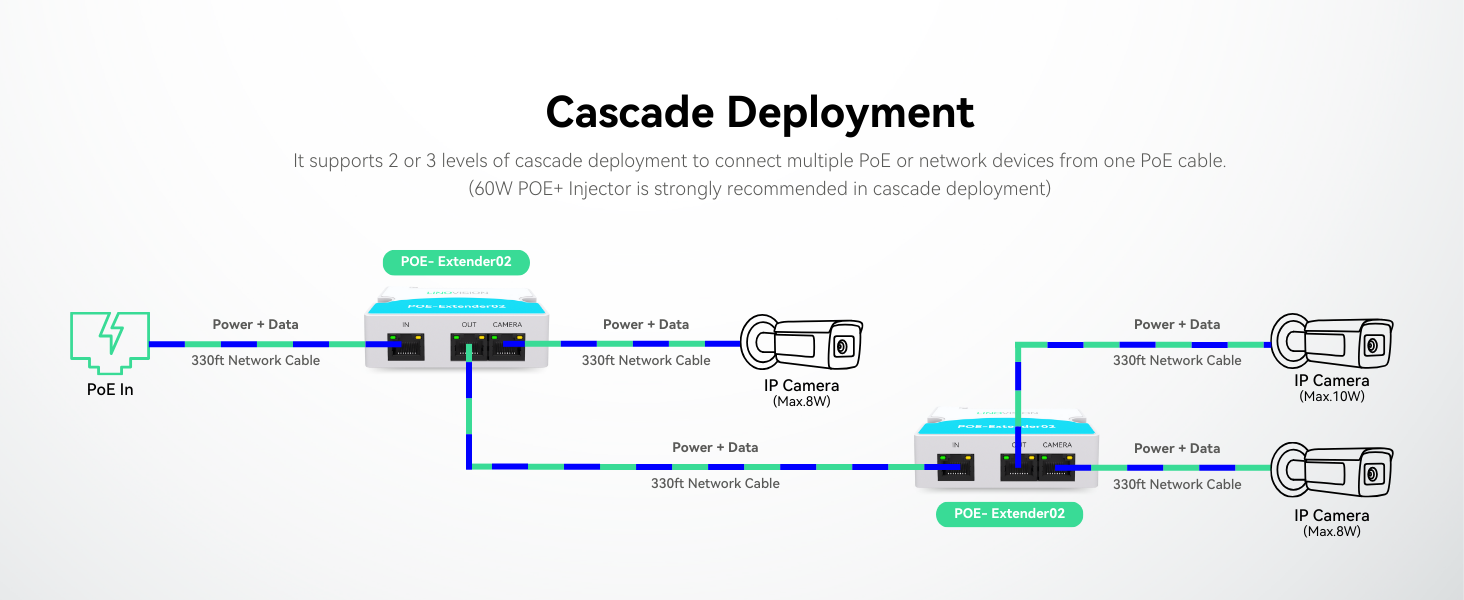

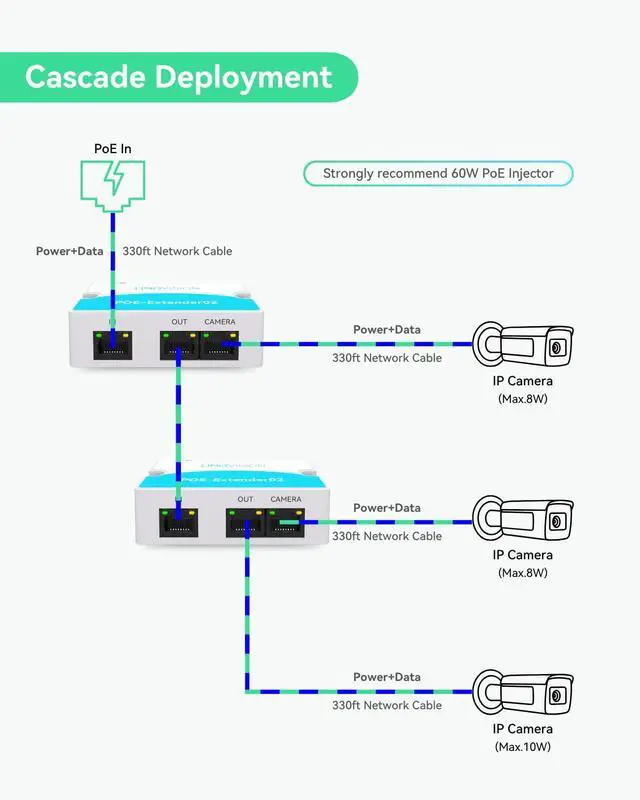

| Transmission Distance | Each PoE Extender will extend extra 330ft PoE + Data transmission; Two levels cascade deployment is supported, and total power consumption of PoE devices is less than 25W. (60W PoE Injector is required for cascade deployment) |
| PoE Status Indicator | Green LED: PoE Power Act Status ; Yellow LED: Ethernet Data Link Status;Working status: the green light is always on, and the yellow light is flashing |
| PoE Pin Assignment(PoE Input) | Support PoE Mode A and Mode B: Both 1/2(-), 3/6(+) and 7/8(-), 4/5(+) |
| PoE Pin Assignment(PoE Output) | Support PoE Mode A and Mode B: Both 1/2(-), 3/6(+) and 7/8(-), 4/5(+) |
| Power consumption | <=3W (or 30W with PoE device connected) |
| Working Humidity | 10%~90% |
| Working Temperature | -30°C ~ 65°C or -22 ? ~ 149 ? |
| Weight | 57g (2.01 ounces) |
| Dimension | 79mm×52mm×23mm (3.11”* 2.05” * 0.91”) |
Does this extender need an addition power supply?
No, it does not require local power supply. This PoE extender is powered by PoE devices (48V or 53V PoE Switch/PoE NVR/PoE Injector/Mid-span).

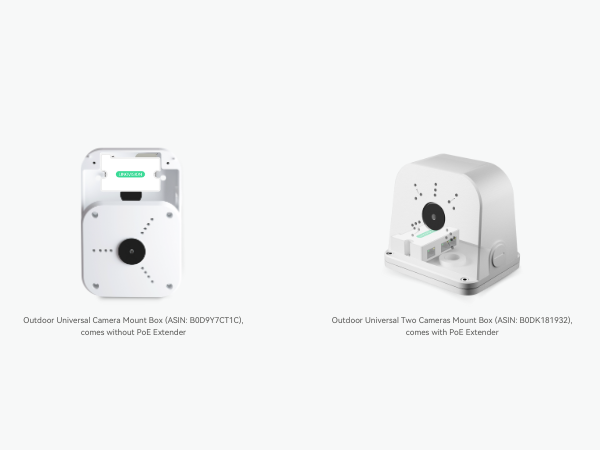

Can this extender be installed outdoors?
This PoE Extender is not waterproof, there is a version with waterproof box, please search ASIN: B0DK181932.

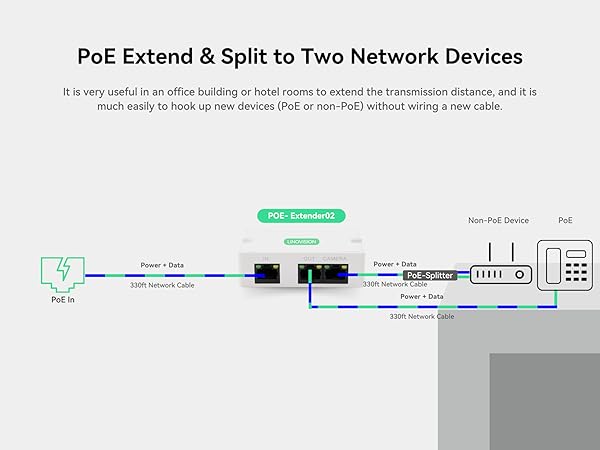

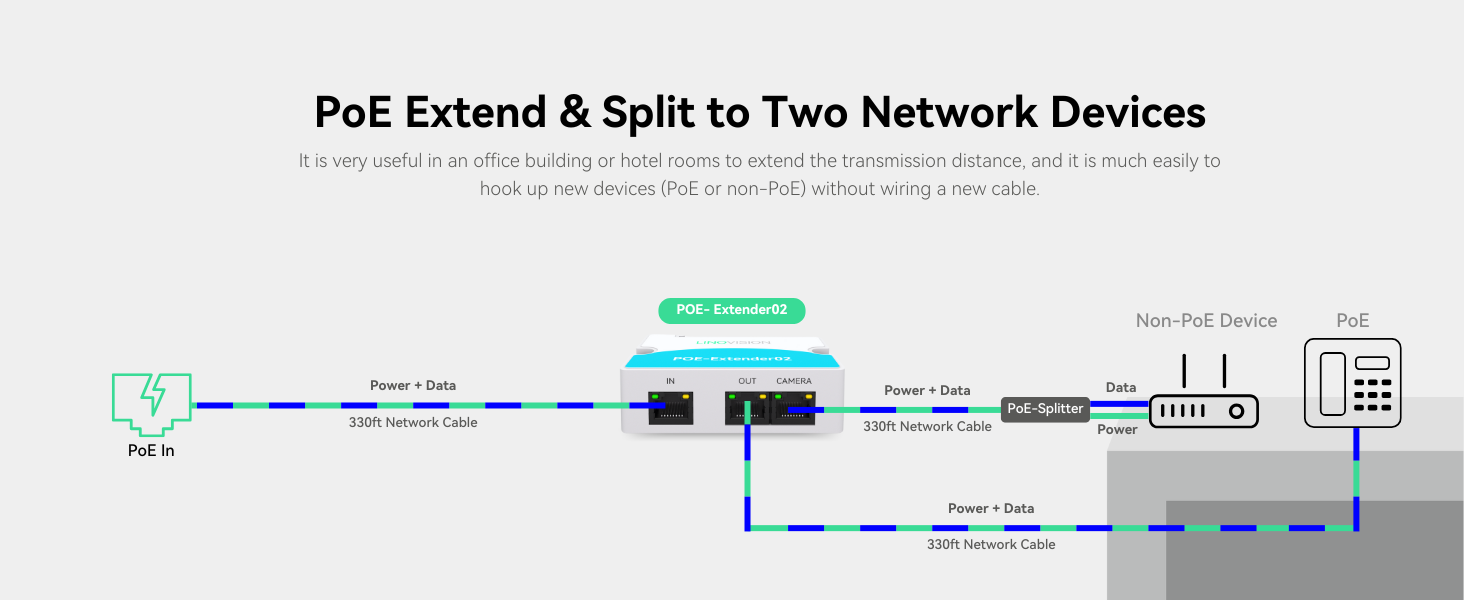

Can this be used as an ethernet splitter to connect non-PoE devices?
Yes, Our PoE Extender supports connecting PoE devices and non-PoE devices. When connecting non-PoE devices, only data is transmitted, the non-PoE devices need to be powered separately.
Why the extender is unable to work?
The main reason is that the load capacity of two PoE outputs exceeds the power input of PoE Extender. In this way, please try to use 60W high PoE injector or mid-span to fix this issue.
What is the load capacity of PoE device that connected to this PoE extender?
Basically, the load capability depends on the PoE supply device, the total power consumption of two PoE output is less than the PoE power input. We recommend to use 60W High PoE injector to connect to the PoE extender.
LINOVISION PoE Extender Selection Guide
POE-Extender02 | POE-Extender02WP2 | POE-EXT02G | POE-EXT6002GP | POE-EXT3001GP | POE-EXT3001LP(2 Pack) | POE-EXT04 |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| PoE Input | ||||||
| Max 30W | Max 30W | Max 30W | Max 90W | Max 30W | Max 30W | Max 90W |
| PoE Output | ||||||
| 1 x16W + 1 x 8W | 1 x16W + 1 x 8W | 2x 30W | 1 x 60W + 1 x 30W | 1x 30W | 1x 30W | 4 x 30W |
| PoE Standard | ||||||
| IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt |
| Total PoE Budget | ||||||
| 30W | 30W | 30W | 90W | 30W | 30W | 80W |
| Extend Data Transmission Range | ||||||
| 330ft (100m) | 330ft (100m) | 330ft (100m) | 330ft (100m) | 330ft (100m) | Max.2600ft(800m), Paired mode | 330ft (100m) |
| Ethernet Speed | ||||||
| 10/100Mbps | 10/100Mbps | Gigabit | Gigabit | Gigabit | 10/100Mbps | Gigabit |
| Waterproof | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Installation Method | ||||||
| Wall/Din Rail Mount | Wall Mount | Din Rail Mount | Wall Mount | / | / | / |
