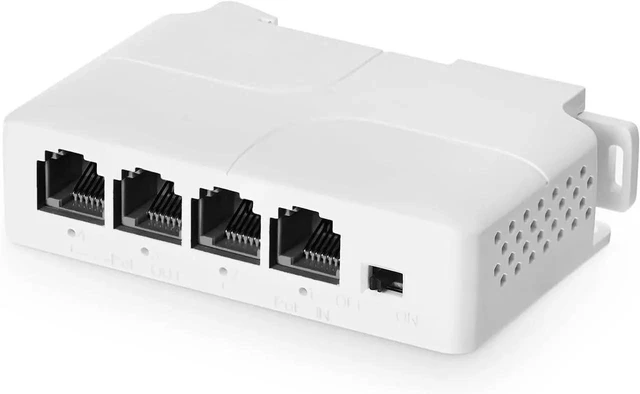

PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 100Mbps Ethernet, din-Rail & Wall Mount
Limited time offer, ends 06/28 By GGnix
- PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

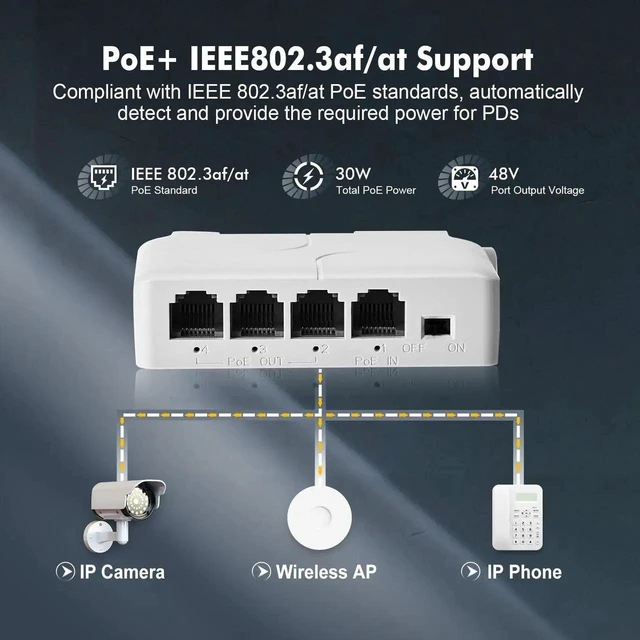

- IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-)
- Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*

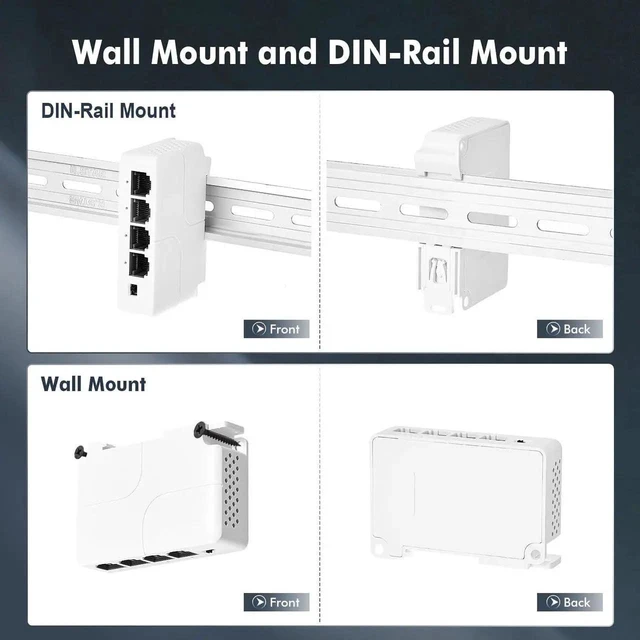

- Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions
- Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
+
+
Overview
Specs
Reviews

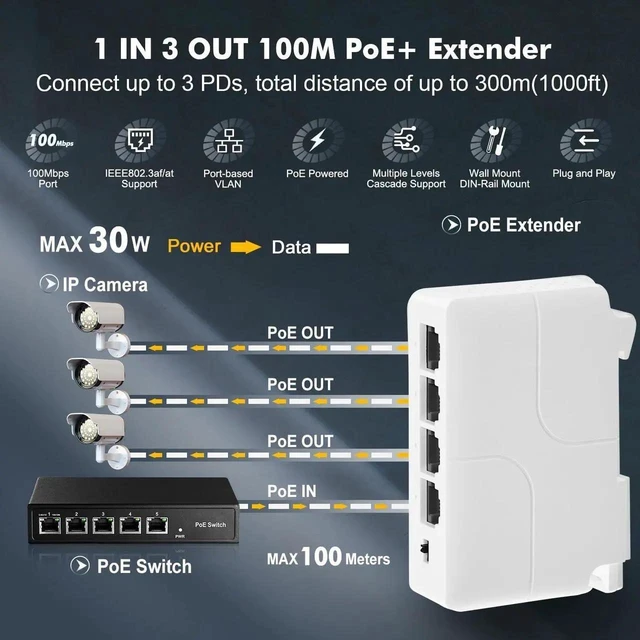

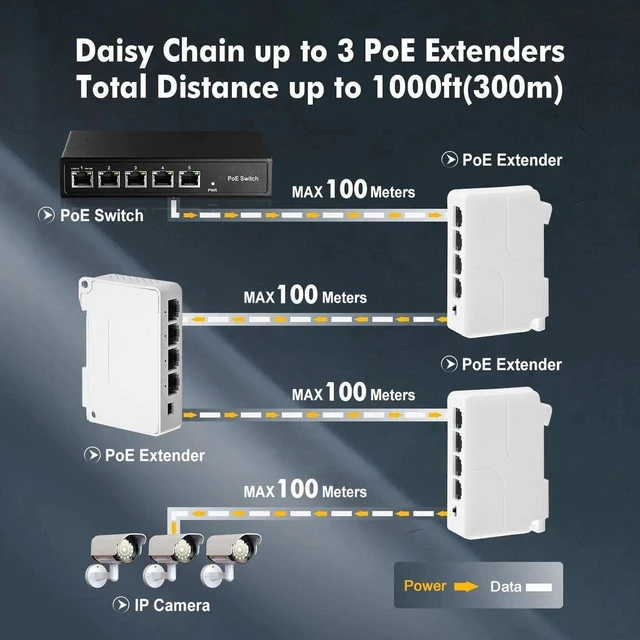

PoE+ extender provides 1 × 10/100Mbps PoE in port and 3 × 10/100Mbps PoE out ports for remote PoE/PoE+ device installation. The PoE extender auto-detects a PoE (15.4W) or PoE+ (30W) devices. The PoE extender features a convenient wall mountable and DIN mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft.).
Features
Support active PoE cascade power supply and Ethernet data exchange.
Support IEEE 802.3af/at standard power supply.
Cooperate with High PoE Midspan, able to cascade level 2 PoE Extender (total power consumption <=25W), max transmission distance 300m.
1* RJ45 10/100M PoE power supply input.
3* RJ45 10/100M PoE power supply output for PoE devices.
Installation mode: Wall mountable, DIN rail mountable.
