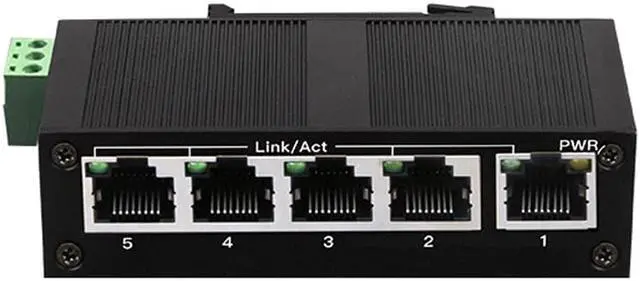

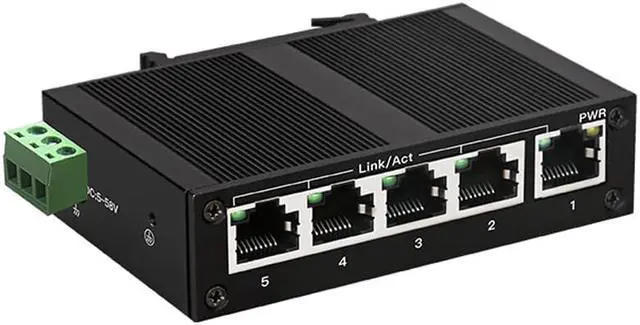

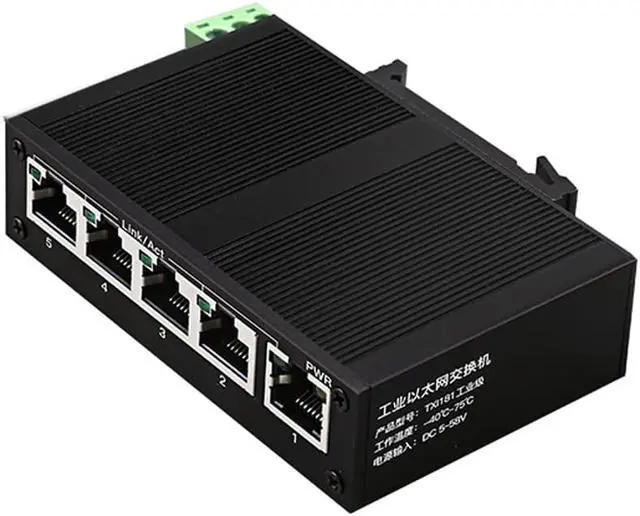

Industrial Grade Fast Ethernet Network Switch 5-Port 10Mbps/100Mbps RJ45 Unmanaged Network Splitter Switch with DIN Rail IP40 Protective Metal Shell
- Chip:IP175GI
- Supported standards and protocols:IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802. 3x.IEEE802. 3az
- Interface:5 x 10/100Mbps adaptive RJ45 ports (Auto MDI/MDIX)
- Network Media.
- 10Base-T:Category 3 or higher UTP
- 100Base-TX:Category 5 CTP and above
- Transmission mode:store-and-forward
- MAC address capacity:1K
- Switching capacity:1Gbps
- Packet forwarding rate:744Kpps
- Indicator Light
- Per Unit:Power (yellow)
- Per port:Link/Act (green)

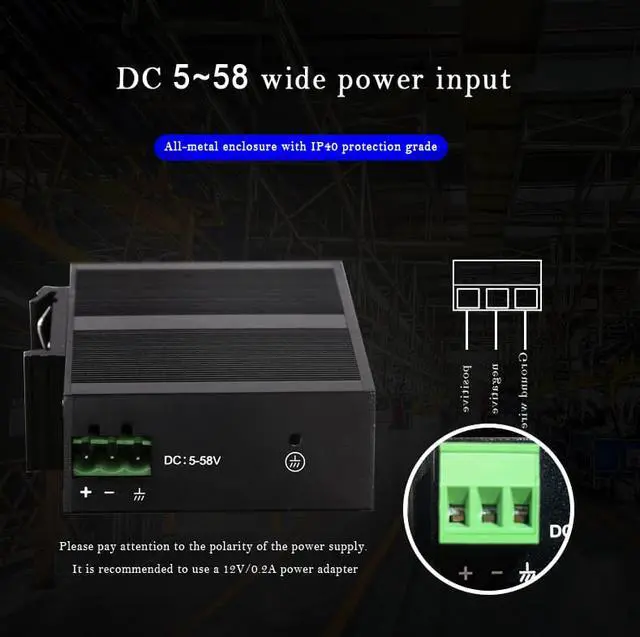

- Power supply:DC:5-58V
- Power consumption:Max: 0.7K
- Dimension (LXHXH):96*61*25. 3mm
- Use environment.

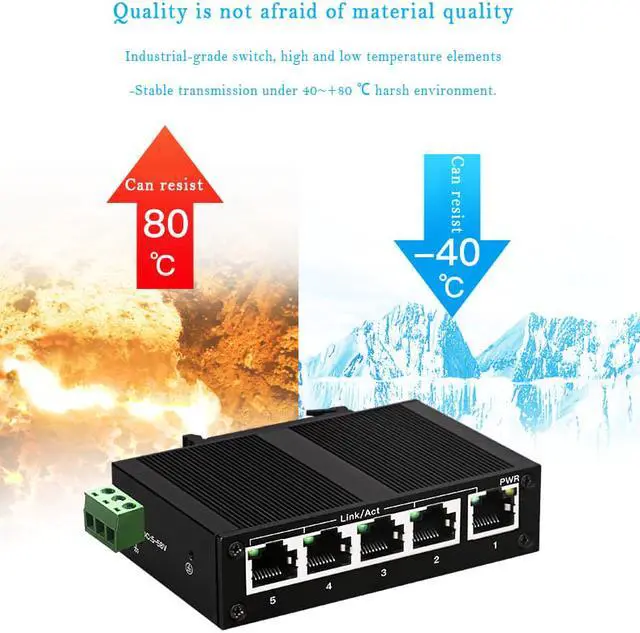

- Operating temperature:-40°C-75"
- Storage temperature:-40°C-75°C
- Operating humidity:10%-90% RH non-condensing
- Storage humidity:5%-90% RH non-condensing
+
+
Overview
Specs
Reviews
Chip:IP175GI
Supported standards and protocols:IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802. 3x.IEEE802. 3az
Interface:5 x 10/100Mbps adaptive RJ45 ports (Auto MDI/MDIX)
Network Media.
10Base-T:Category 3 or higher UTP
100Base-TX:Category 5 CTP and above
Transmission mode:store-and-forward
MAC address capacity:1K
Switching capacity:1Gbps
Packet forwarding rate:744Kpps
Indicator Light
Per Unit:Power (yellow)
Per port:Link/Act (green)
Power supply:DC:5-58V
Power consumption:Max: 0.7K
Dimension (LXHXH):96*61*25. 3mm
Use environment.
Operating temperature:-40°C-75"
Storage temperature:-40°C-75°C
Operating humidity:10%-90% RH non-condensing
Storage humidity:5%-90% RH non-condensing
