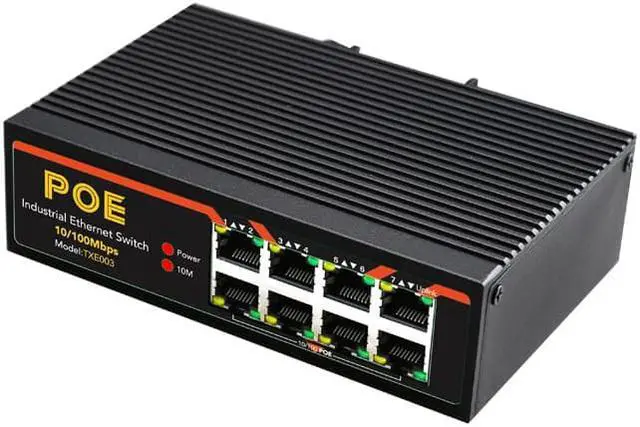

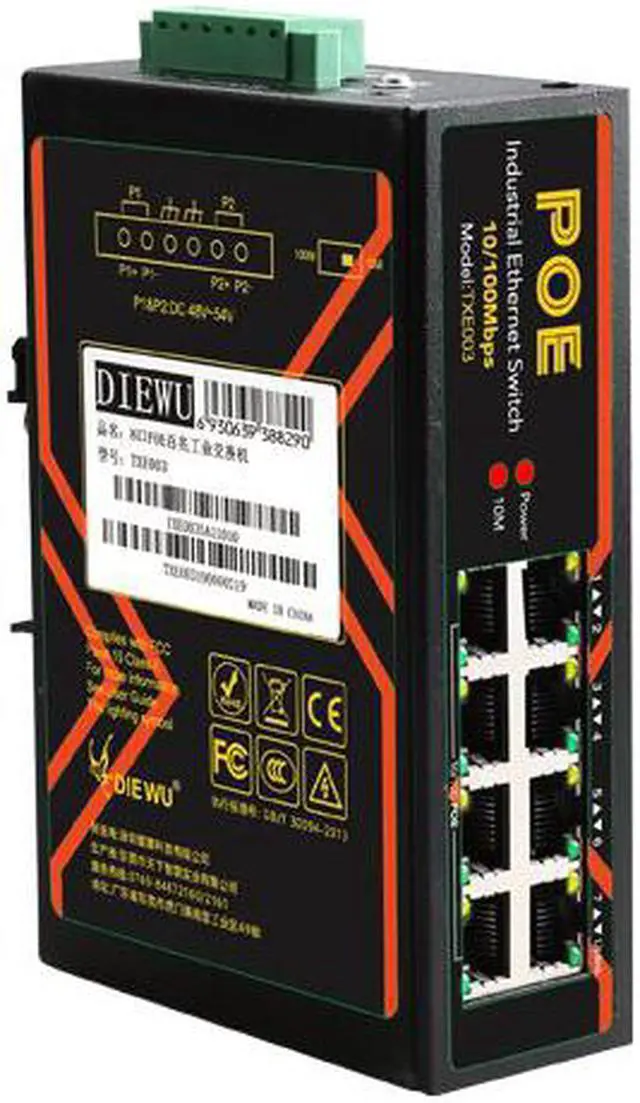

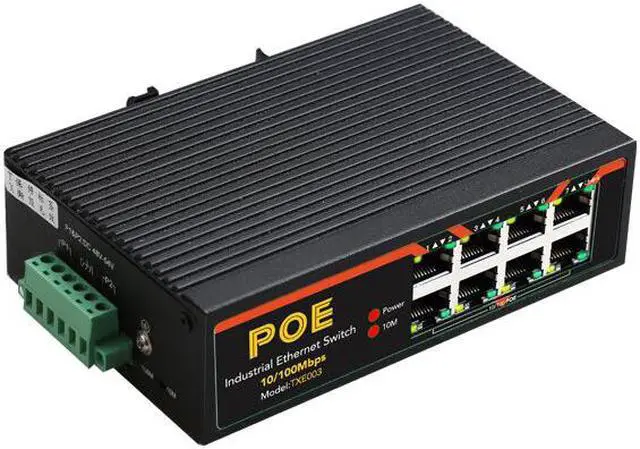

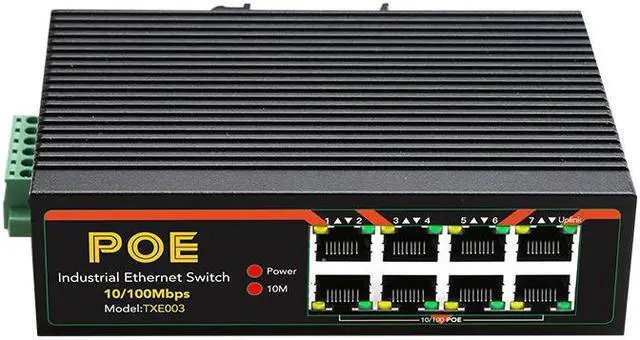

Weastlinks 8 Ports Industrial Fast Ethernet Switch 10/100Mbps POE Network Switch DIN Rail Type Network RJ45 Lan adapter
- Products Name:8 Ports Industrial POE switch.
- Size:118*80*30mm,Power supply:DC48-54V/ 1.5W.
- Protocol:IEEE 802.3AF, IEEE 802.3at, IEEE 802.3x; IEEE 802.3az.
- Industrial-grad,Build in signal Enhance & VLAN switch,Innovative design, metal case.
+
+
Overview
Specs
Reviews
Features:
8 Ports Industrial Fast Ethernet Switch 10/100Mbps POE Network Switch DIN Rail Type Network RJ45 Lan adapter
MODEL:TXE003
Products Name:8 Ports Industrial POE switch
Size:118*80*30mm
Power supply:DC48-54V/ 1.5W
Protocol:IEEE 802.3AF, IEEE 802.3at, IEEE 802.3x; IEEE 802.3az
Support DC 48~54V input range.
Industrial-grad.
Build in signal Enhance & VLAN switch.
Innovative design, metal case.
Specification:
Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az
Port number: 8 port 10/100M RJ45 POE port
Data rate: 10/100Mbps
Forwarding rate: 10 Mbps/14,880 pps,100 Mbps/148,800 pps
LED Indicator: 10/100Mbps(Link/Act, speed),POE Power, enhance Indicator
Power Input: DC48V-54V
Power Consumption:1.5W max
Operating Temperature: -40 -85 Celsius
Storage Temperature: -40-85 Celsius
Relative Humidity: 5%-90%(non-condensing)
Dimension: 118*80*30mm/4.64*3.14*1.18''
Package Included:
1 x 8 Port 100Mbps Ethernet Network Switch
8 Ports Industrial Fast Ethernet Switch 10/100Mbps POE Network Switch DIN Rail Type Network RJ45 Lan adapter
MODEL:TXE003
Products Name:8 Ports Industrial POE switch
Size:118*80*30mm
Power supply:DC48-54V/ 1.5W
Protocol:IEEE 802.3AF, IEEE 802.3at, IEEE 802.3x; IEEE 802.3az
Support DC 48~54V input range.
Industrial-grad.
Build in signal Enhance & VLAN switch.
Innovative design, metal case.
Specification:
Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az
Port number: 8 port 10/100M RJ45 POE port
Data rate: 10/100Mbps
Forwarding rate: 10 Mbps/14,880 pps,100 Mbps/148,800 pps
LED Indicator: 10/100Mbps(Link/Act, speed),POE Power, enhance Indicator
Power Input: DC48V-54V
Power Consumption:1.5W max
Operating Temperature: -40 -85 Celsius
Storage Temperature: -40-85 Celsius
Relative Humidity: 5%-90%(non-condensing)
Dimension: 118*80*30mm/4.64*3.14*1.18''
Package Included:
1 x 8 Port 100Mbps Ethernet Network Switch
