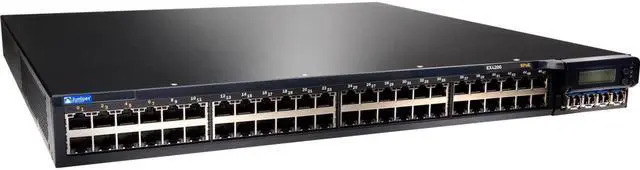

Juniper EX4200-48T Layer 3 Switch

The Juniper Networks® EX4200 line of Ethernet switches with Virtual Chassis technology combine the high availability (HA) and carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus and branch office environments.

Offering a full suite of Layer 2 and Layer 3 switching capabilities as part of the base software, the EX4200 satisfies a variety of high-performance applications, including branch, campus and data center access deployments as well as Gigabit Ethernet (GbE) aggregation deployments. A single 24-port or 48-port switch can be deployed initially; as requirements grow, Juniper Networks Virtual Chassis technology allows up to 10 EX4200 switches to be interconnected over a 128 gigabit-per-second (Gbps) backplane and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments. Flexible Gigabit Ethernet (GbE) and 10-Gigabit Ethernet (10GbE) uplink options enable high-speed connectivity to aggregation- or core-layer switches which connect multiple floors or buildings.

Features

* Product Type: Layer 3 Switch
* Manageable: Yes
* Ethernet Technology: Gigabit Ethernet
* Number of Total Expansion Slots: 1
* Product Family: EX
* Media Type Supported: Twisted Pair
* Total Number of Network Ports: 48
* PoE (RJ-45) Port: No
* Port/Expansion Slot Details: Gigabit Ethernet
* Expansion Slot Type: Uplink Module
* Brand Name: Juniper
* Form Factor: Rack-mountable
* Form Factor: Desktop
* Network Technology: 10/100/1000Base-T
* Power Source: Power Supply
* Layer Supported: 3
* Product Type: Layer 3 Switch
* Manageable: Yes
* Green Compliant: Yes
* Green Compliance Certificate/Authority: RoHS-5
* Green Compliance Certificate/Authority: WEEE
* Green Compliance Certificate/Authority: REACH
* Compatible Rack Unit: 1U
* Ethernet Technology: Gigabit Ethernet
* Number of Total Expansion Slots: 1
* Modular: No
* Media Type Supported: Twisted Pair
* Total Number of Network Ports: 48
* Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
* Port/Expansion Slot Details: 1 x Expansion Slot
* Height: 1.7"
* Width: 17.4"
* Depth: 16.4"
* Expansion Slot Type: Uplink Module
* Product Series: EX
* Brand Name: Juniper
* Form Factor: Rack-mountable
* Form Factor: Desktop
* Product Model: EX4200-48T
* Product Name: EX4200-48T Layer 3 Switch
* Network Technology: 10/100/1000Base-T
* Power Source: Power Supply
* Layer Supported: 3
* Weight (Approximate): 17.10 lb
