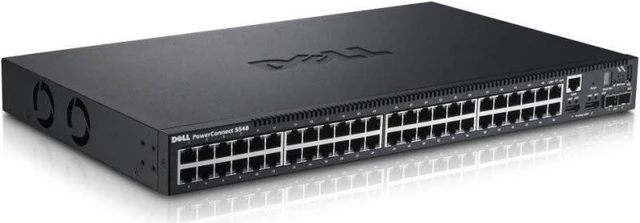

Dell PC5548 PowerConnect 5548 Managed Switch - 48 Ethernet Ports

DELL 469-3415 Powerconnect 5548 Managed Switch - 48 Ethernet Ports & 2 10-gigabit Sfp+ Ports.

General Information:


Device Type: Switch - 48 Ports - Managed - Stackable

Enclosure Type: Desktop, Rack-mountable - 1u

Ports: 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+

Performance: Switching
Capacity: 128 Gbps Forwarding Performance: 65.47 Mpps

Capacity: Mac
Addresses: 16000
Virtual Interfaces (vlans): 4000
Qos Hardware Queues: 8
Igmp Snooping Entries: 256 Acl: 3000 Acl Entries: 3000

Mac Address Table Size: 16k Entries

Remote Management Protocol: Snmp 1, Rmon, Telnet, Snmp 2c, Http, Https, Tftp, Ssh, Ssh-2, Cli

Encryption Algorithm: Ssl 3.0

Authentication Method: Radius, Tacacs+

Features: Layer 3 Switching, Layer 2 Switching, Dhcp Support, Auto-negotiation, Bootp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Port Mirroring, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Ip Address Filtering, Sntp Support, Weighted Random Early Detection (wred), Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Cable Test (vct) Technology, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Ipv4 Support, Lacp Support, Management Information Base (mib)

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 i, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ac, Ieee 802.1 ad, Ieee 802.1 v

Ram: 1 Gb - Sdram

Flash Memory: 16 Mb

Expansion / Connectivity:

Interfaces: 48 X 10base-t/100base-tx/1000base-t - Rj-45 2 X 10gb Ethernet -
Sfp+ Usb: 1 X

Power:

Power Device: Power Supply - Internal

Voltage Required: Ac 120/230 V ( 50/60 Hz )
