Tenda TEG1009P-EI 9Port Gigabit Desktop Switch With 8Port Poe

  • Compliant with IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at standards
  • 1-8 ports support PoE (AF/AT), wire-speed forwarding on each port
  • Backplane broadband up to 18Gbps, packet forwarding rate up to 13.4Mpps, and supports non-blocking wire-speed forwarding
  • Provides 9 10/100/1000Mbps auto-sensing RJ45 ports, support parallel-line and cross-line auto-detection (Auto MDI/MDIX)
  • Integrates with professional lightning-proof circuit, supports 2-level lightning -proof for uplink port
Overview
Specs
Reviews (1)
Tenda logo

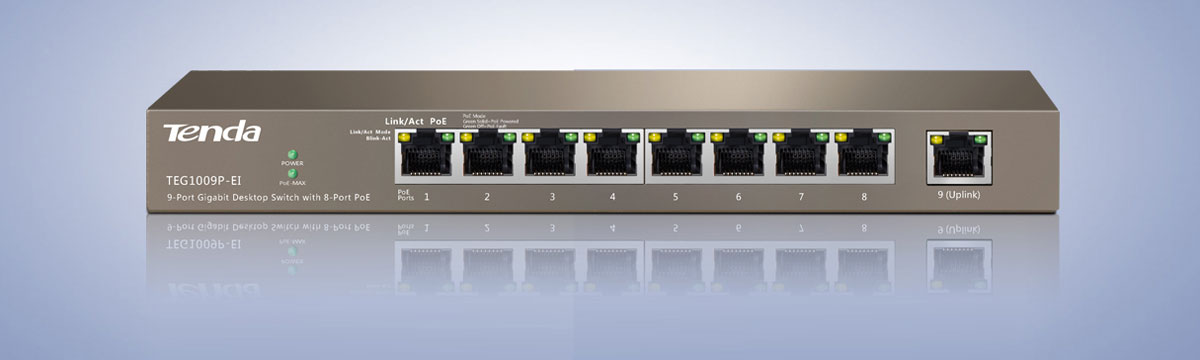

  Front view of the Tenda TEG1009P-EI Switch, showing all nine ports, indicator and Tenda brand logo

Tenda TEG1009P-EI Switch

A nine-port Gigabit desktop switch that lets you easily deploy and expand network. Including eight GbE ports and a GbE uplink port, this switch supports IEEE802.3af PoE (15.4W, port 1-8) and 802.3at PoE (30W, four ports). The PoE capability allows transmission of both power and data over a single Ethernet cable, allowing flexible deployment of compatible device such as AP, IP camera and IP phone.

Performance-wise, this switch offers backplane bandwidth up to 18Gbps, packet forwarding rate up to 13.4Mpps, and supports non-blocking wire-speed. It also supports 4K MAC address list with address learning and aging. Plus, this model complies with 802.az (EEE), uses energy-saving chipsets and features fan-less design for silent operation.

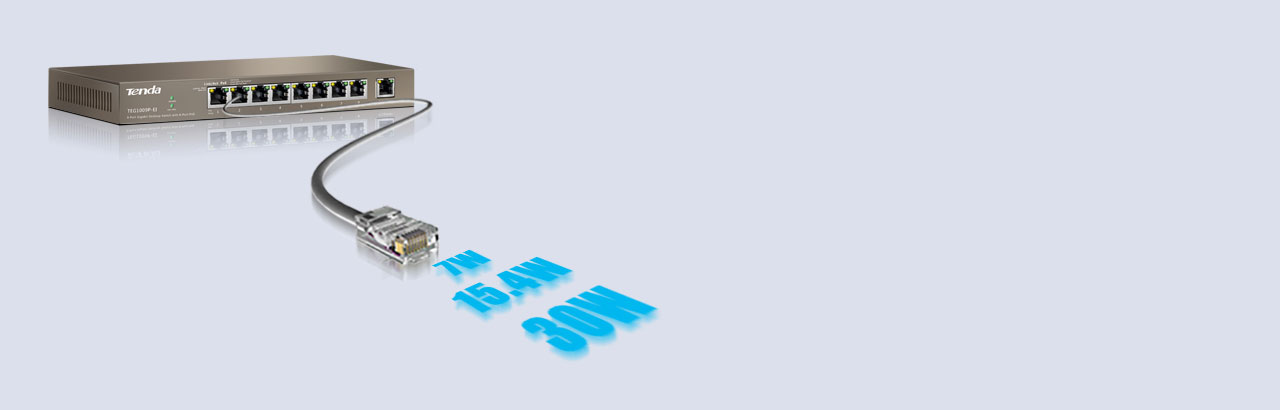

 Front view of the Tenda TEG1009P-EI Switch, angled slightly to the left. An Ethernet cable connecting to Port 2, and following the other end of this cable are some texts reading as “7W”, “15.4W” and “30W”
Superior PoE Performance

1-8 ports support IEEE 802.3af (15.4W) or 1-4 ports IEEE 802.3at (30W). Providing PoE dynamic power, the device can auto-detect power consumption of PD device and match proper output power.

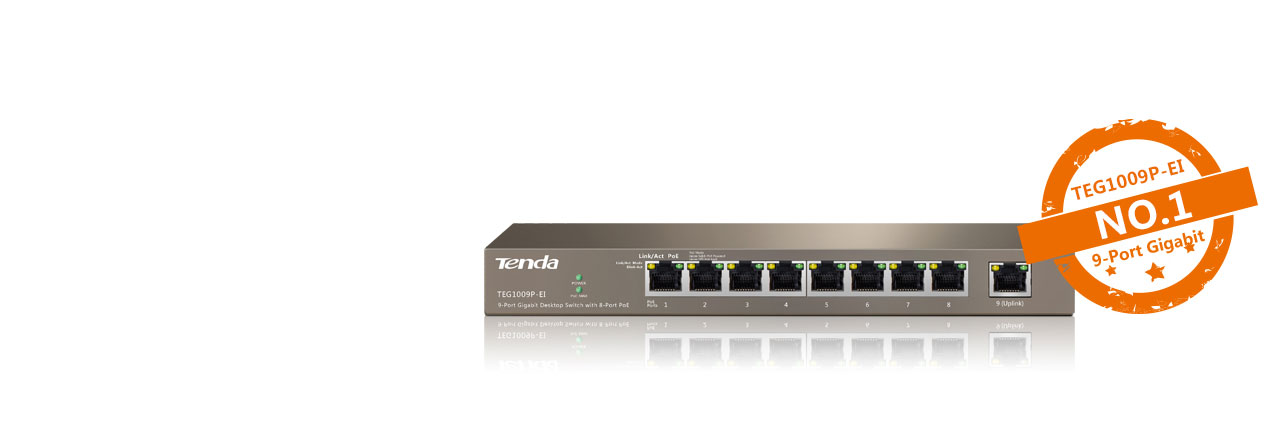

 Front view of the Tenda TEG1009P-EI Switch. Next to it on the right is a badge with “NO.1” texts in the center
Pioneered 9 GbE Ports in Domestic

This swtich provides nine GbE Ethernet ports, supports layer 2 wire speed forwarding on each port, and fully meets the needs of Gigabit WLAN, HD surveillance and more.

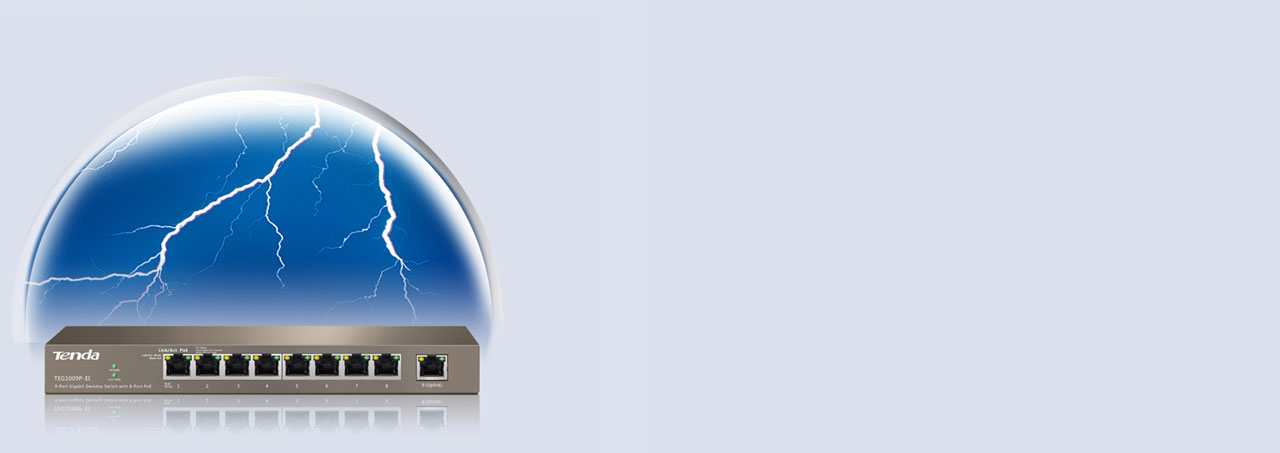

Front view of the Tenda TEG1009P-EI Switch. On top of it is a dome sealing lightning in
High Reliability

Integrates with professional lightning protection circuit and 2-level lightning-proof for uplink ports (4KV lightning proof for 9th port).

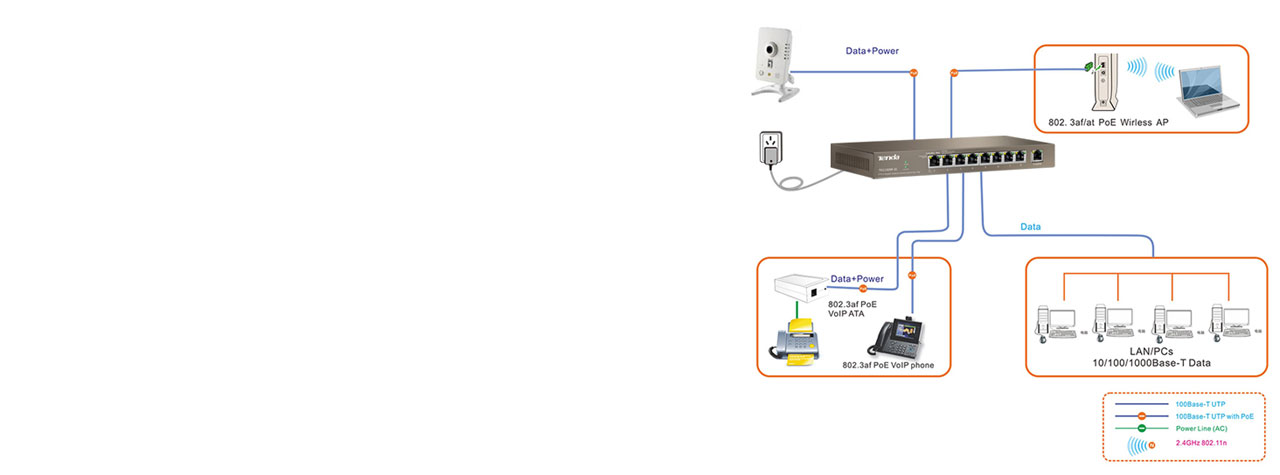

 Diagram illustrating the Tenda TEG1009P-EI Switch connecting to a variety of devices, including camera, wireless AP, IP phone and computers
Plug & Play

Plug and play, no configuration needed. Maintenance is also a breeze.

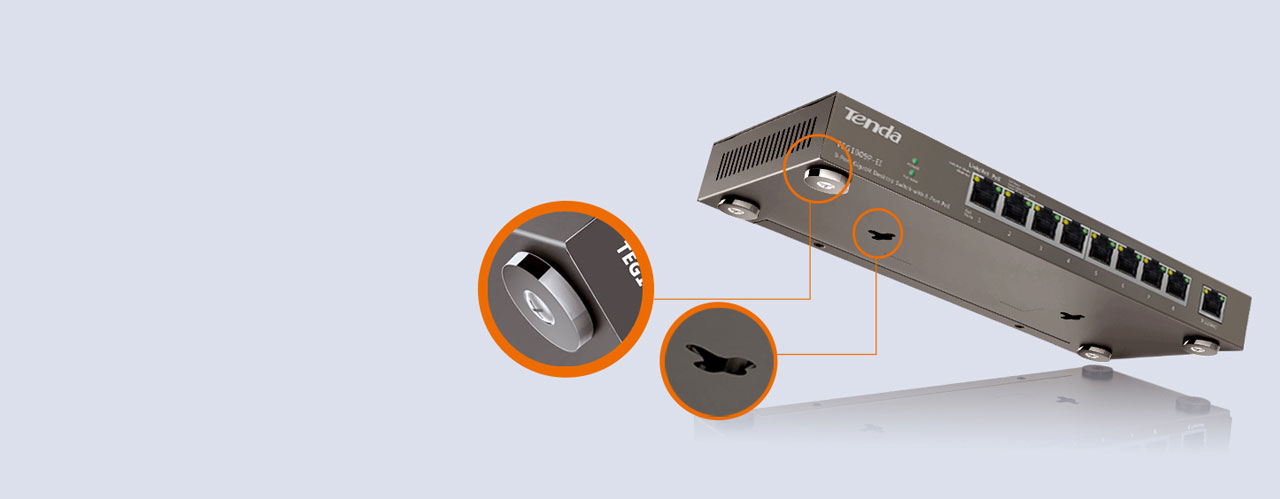

 Bottom view of the Tenda TEG1009P-EI Switch, highlighting mounting hole and stands
Easy to Install

The device is equipped with magnet and mounting hole, so it's easy to be installed on metal platform or mounted on smooth wall.

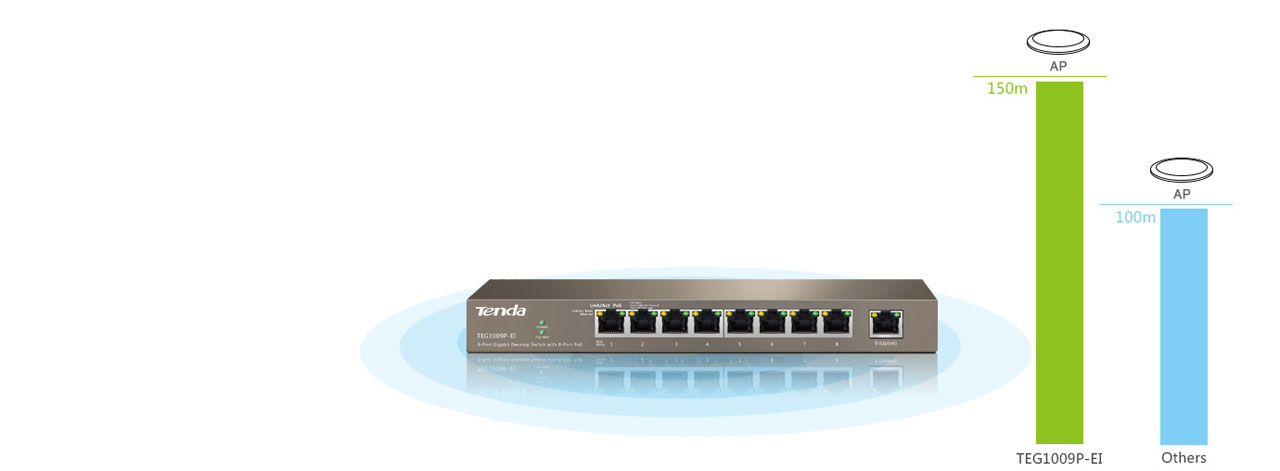

 Front view of the Tenda TEG1009P-EI Switch, next to it on the right are chart and numbers indicating it supports up to 150m transmission distance
Extend Power Supply Distance

Using a Cat-5e cable, power and data can be transmitted up to 150 meters. The device not only improves the quality of data delivery, but also expands coverage of small network.

Standardprotocol Ieee 802.3Ieee 802.3Uieee 802.3Xieee 802.3Afieee 802.3At Port Description Support Ieee802.3X Flow Control (Half/Full Duplex) Eight 10/100/1000Base-Tx Poe Portone 10/100/1000Base-Tx Uplink Port Port Features Support Ieee802.3X Flow Control (Half/Full Duplex) Support Port-Based Broadcast Storm Controlsupport Pps-Based Broadcast Storm Control Power Dc Inputpower Consumption: Switching Capacity Backplane Bandwidth 18Gbpspacket Forwarding Rate 13.4Mppsfull Duplex On Each Port Mac Address Table 4K Switching Mode Storage Forward Item Dimension (Lxwxh) : 10.43 X 6.14 X 3.5 Weight:4.16Lbwarranty Infotmation 1 Year
