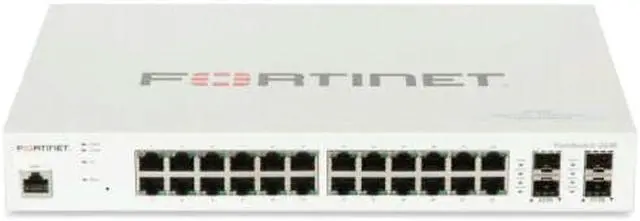

FS-224E - Fortinet Switch 200 Series is the Layer 2/3 FortiGate switch controller compatible switch with 24 x GE RJ45 ports, 4 x GE SFP.
- Product Code
- FS-224E
- Form Factor
- 1 RU Rack Mount
- Switching Capacity (Duplex)
- 56 Gbps
- Packets Per Second (Duplex)
- 83 Mpps
- MAC Address Storage
- 16 K
- Height x Depth x Width (inches)
- 1.73 x 9 x 12.99
- Height x Depth x Width (mm)
- 44 x 230 x 330
- Power Required
- 100240V AC, 5060 Hz
- Power Consumption (Average / Maximum)
- 17.2 W / 17.3 W
+
+
Overview
Specs
Reviews
FS-224E specification
Hardware specification
Total Network Interfaces
24x GE RJ45 ports and 4x GE SFP ports
Dedicated Management 10/100 Port
1
RJ-45 Serial Console Port
1
Form Factor
1 RU Rack Mount
Power over Ethernet (PoE) Ports
NA
PoE Power Budget
NA
Mean Time Between Failures
> 10 years
System specification
Switching Capacity (Duplex)
56 Gbps
Packets Per Second (Duplex)
83 Mpps
MAC Address Storage
16 K
Network Latency
< 1µs
VLANs Supported
4 K
Link Aggregation Group Size
8
Total Link Aggregation Groups
Up to number of ports
Packet Buffers
1.5 MB
DRAM
512 MB
FLASH
128 MB
Dimensions
Height x Depth x Width (inches)
1.73 x 9 x 12.99
Height x Depth x Width (mm)
44 x 230 x 330
Environment
Power Required
100240V AC, 5060 Hz
Power Supply
AC Built in
Redundant Power
Redundant AC
Power Consumption (Average / Maximum)
17.2 W / 17.3 W
Heat Dissipation
59.095 BTU/h
Operating Temperature
32122°F (050°C)
Storage Temperature
-4158°F (-2070°C)
Humidity
1090% non-condensing
Hardware specification
Total Network Interfaces
24x GE RJ45 ports and 4x GE SFP ports
Dedicated Management 10/100 Port
1
RJ-45 Serial Console Port
1
Form Factor
1 RU Rack Mount
Power over Ethernet (PoE) Ports
NA
PoE Power Budget
NA
Mean Time Between Failures
> 10 years
System specification
Switching Capacity (Duplex)
56 Gbps
Packets Per Second (Duplex)
83 Mpps
MAC Address Storage
16 K
Network Latency
< 1µs
VLANs Supported
4 K
Link Aggregation Group Size
8
Total Link Aggregation Groups
Up to number of ports
Packet Buffers
1.5 MB
DRAM
512 MB
FLASH
128 MB
Dimensions
Height x Depth x Width (inches)
1.73 x 9 x 12.99
Height x Depth x Width (mm)
44 x 230 x 330
Environment
Power Required
100240V AC, 5060 Hz
Power Supply
AC Built in
Redundant Power
Redundant AC
Power Consumption (Average / Maximum)
17.2 W / 17.3 W
Heat Dissipation
59.095 BTU/h
Operating Temperature
32122°F (050°C)
Storage Temperature
-4158°F (-2070°C)
Humidity
1090% non-condensing
