WiFi 7 BE200 BE200NGW M.2 WiFi Card BT5.4 802.11BE Tri-Band 8774Mbps NGFF WiFi 7 Wireless Network Laptop Adapter for PC Windows 11/10

Features:

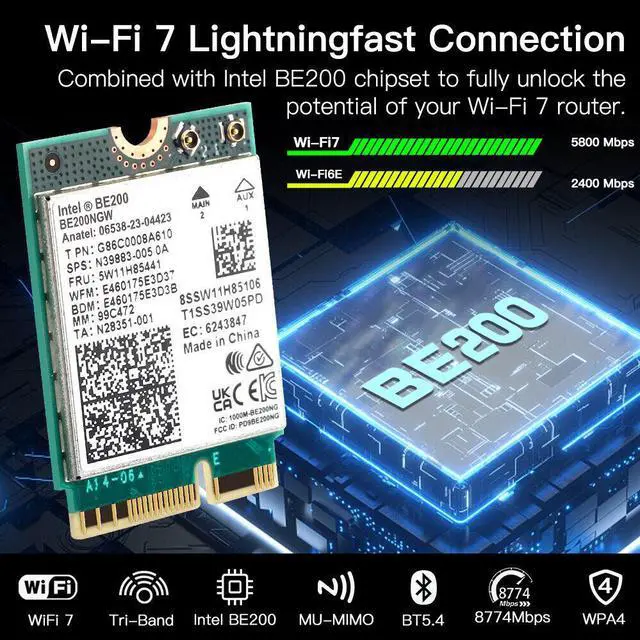

The BE200 Wi-Fi 7 network card features a 2*2 antenna configuration, supporting 2.4GH z, 5GHz, and 6GHz frequency bands, and boasts a maximum network speed of 5.8G bps.
The biggest technical highlight of WiFi 7 is the support for 320MHz channel, which is a channel that has never been used by past home routers.




In theory, 320MHz channels allow devices to enjoy higher single-device throughput. WiFi 6 can achieve a maximum of 160MHz, and WiFi 7 directly doubled, so that the access of digital devices can have greater wireless throughput capacity.




Faster speed and lower latency. WiFi 7 can support data transmission rates of up to 30Gbps, which is equivalent to three times that of WiFi 6, and can meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.




In addition, WiFi 7 can support 2.4GH z, 5GHz, 6GHz three frequency bands at the same time, which can automatically swing the signal to the appropriate frequency band according to the strength of the signal. It can also achieve "self" load balancing, using its own multi-channel advantages for concurrent data transmission. Solve the problem that WiFi 6 cannot automatically switch bands.






Specification:
Model: Wi-Fi 7 BE200
Interface: NGFF M. 2
Antenna: 2x2
TX/RX Streams: 2x2, 320 MHz, 4K QAM
Bands: 2.4, 5, 6 GHz

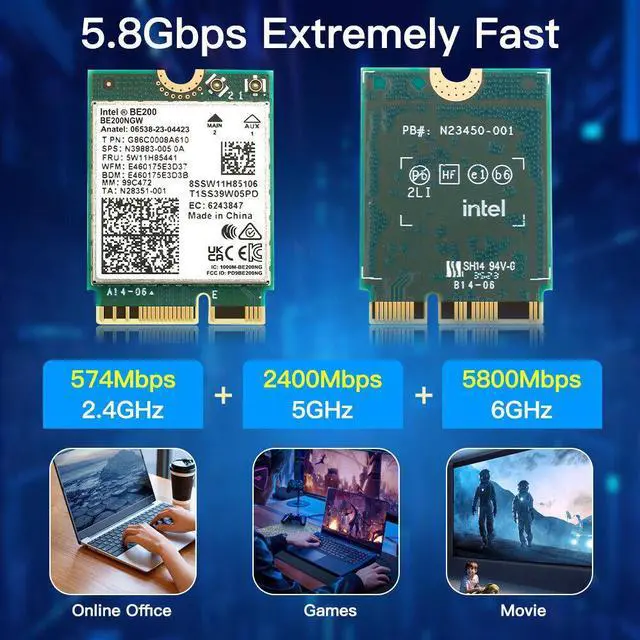

2.4G hz 574Mbps/5Ghz (2400Mbps);
6Ghz (320Mhz): 5.8G bps
Max Speed: 5.8 Gbps
Compliance: FIPS
Bluetooth Version: 5.4
Board Form Factor: M. 2 2230, M. 2 1216
System Interface Type: M

. 2: PCIe*, USB
MU-MIMO: Yes

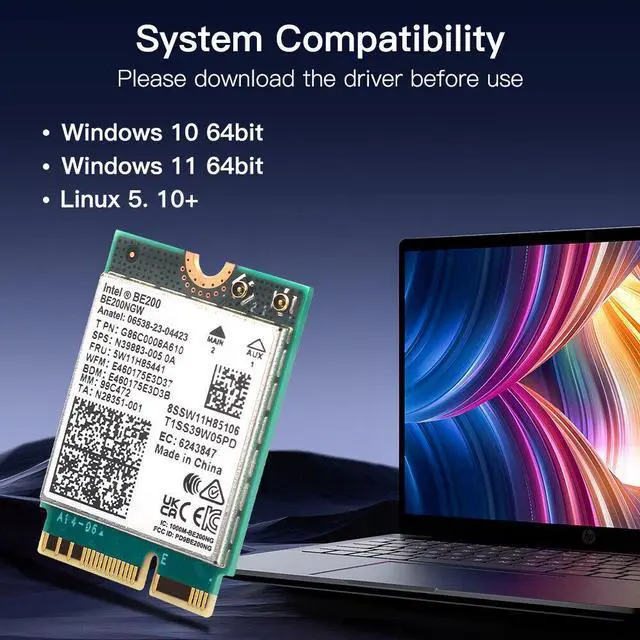

Supported Operating Systems:
Windows 11*, Windows 10*

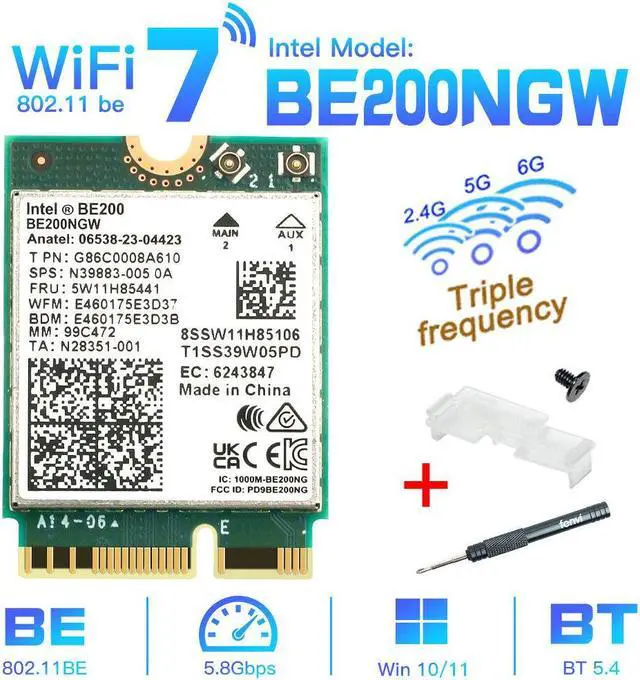

Package Includes:
1 x Wi-Fi 7 BE200NGW WiFi Card
1 x Plastic shell
1 x Screwdriver
1 x Screw
