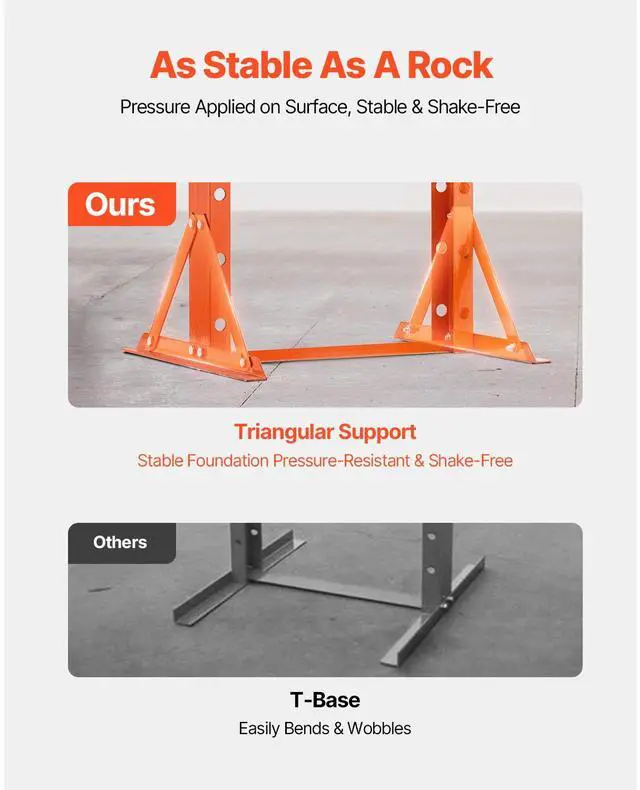

Hydraulic Shop Press, 20 T H-Frame Pneumatic Shop Press with Press Plate, Stable Garage Floor Adjustable Hydraulic Press with Triangular Support, Fit for Bending, Straightening & Stamping

Specifications

Item Model Number: ZX0901 item 20T
Product Dimensions: 30.2 × 23.6 × 69.8 in/770×596×1770 mm
Cylinder Stroke: 5.7 in/145 mm
Rated Load: 20T
Hydraulic Pump Operating Pressure: 0.8 - 1.2 MPa
Hydraulic Oil Model: 15#
Net Weight: 190.5 lbs/ 86.35 kg (Include all accessories)

Package Content

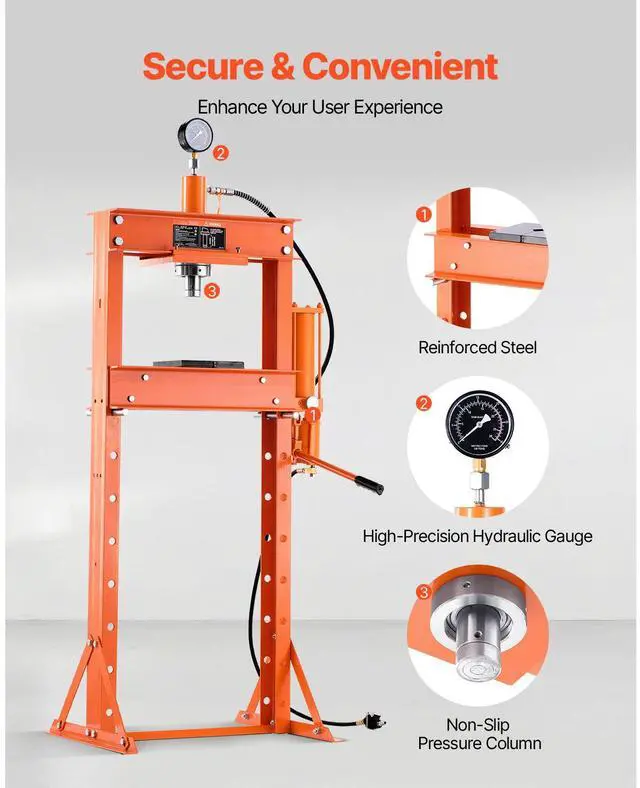

1 x 20T Pressure Gauge
1 x Nylon Washer
1 x Oil Cylinder Component
1 x Tapered End Tightening Screw M8×8 (pre-installed on oil cylinder component)
1 x Upper Cap (pre-installed on oil cylinder component)
1 x Piston (pre-installed on oil cylinder component)
4 x Hex Bolt M8×16
2 x Cross Beam
8 x Hex Bolt M16×35
8 x Flat Washer 16
8 x Spring Washer 16
8 x Hex Nut M16
2 x Vertical Column
1 x Oil Cylinder Mounting Plate Welded Assembly
1 x Lower Cap (Pre-installed on oil cylinder component)
15 x Flat Washer 10
15 x Spring Washer 10
12 x Hex Nut M10
2 x Pressure Block
4 x Workbench Support Pipe
2 x Channel Steel Workbench
2 x Cotter Pin
4 x Hex Bolt M10×130
8 x Hex Bolt M10×25
4 x Diagonal Brace
4 x Hex Bolt M12×30
2 x Angle Iron
1 x Connecting Rod Component
4 x Flat Washer 12
4 x Spring Washer 12
4 x Hex Nut M12
1 x Handle
3 x Hex Bolt M10×20
1 x Pneumatic Quick Connect Hose (European-style)
1 x Pneumatic Manual Pump Component
1 x User Manual
1 x European-style Quick Connect Fitting
