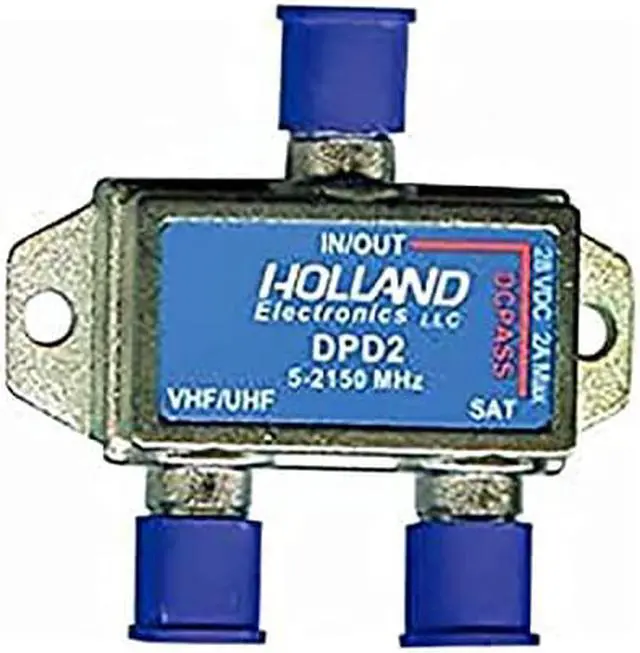

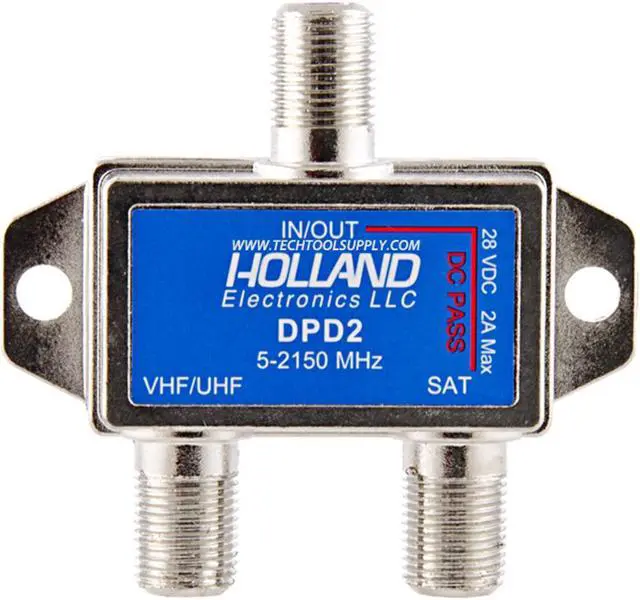

HOLLAND DIPLEXER COMBINER / 5-2150MHZ DPD2 28V 2A MAX / SATELLITE / FTA / NEW!
+
+
Overview
Specs
Reviews
Provides low loss diplexing of DBS and TV signals. Separates TV and DBS signals prior to satellite receiver input, and filters harmonics in the off-air spectrum from satellite conversion devices. The DPD2 diplexer is specifically designed for Dish Network TM DP44 installations, allowing 2 amp passing without burning out.
Features:
* · Low Insertion Loss
* · High Return Loss
* · Increased Stop Band Isolation
* · Color Coded Insulators
* · DISH Network Approved
Specifications:
* · Insertion Loss:
* · VHF/UHF Port: = 1.5 dB
* · Satellite Port: = 1.5 dB
* · Return Loss:
* · VHF/UHF Port: = 12dB
* · Satellite Port: = 15dB
* · Stop Band Rejection (isolation): = 40dB
* · Complies with CEA-897 Connector Color Coding
* · Complies with ASTMB 117-97, 500 hours
Features:
* · Low Insertion Loss
* · High Return Loss
* · Increased Stop Band Isolation
* · Color Coded Insulators
* · DISH Network Approved
Specifications:
* · Insertion Loss:
* · VHF/UHF Port: = 1.5 dB
* · Satellite Port: = 1.5 dB
* · Return Loss:
* · VHF/UHF Port: = 12dB
* · Satellite Port: = 15dB
* · Stop Band Rejection (isolation): = 40dB
* · Complies with CEA-897 Connector Color Coding
* · Complies with ASTMB 117-97, 500 hours
