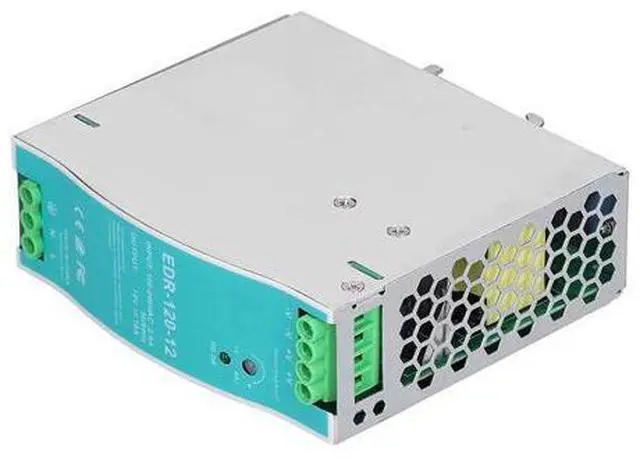

Industrial Rail Power Supply, Stable Rail Power Supply 10A Rail Power Supply 12V Rail Power Supply for Rail Power Supply
- Multiple protection functions such as over current protection, over voltage protection, overload protection, short circuit protection.; The voltage regulator is smaller and more stable than the traditional transformer, so that you can use it at ease.; EDR?120?12 Model rail power supply, easy installation, designed with back mounting hole; All copper transformer have strong electrical conductivity and are not easy to generate heat.; Good ventilation and heat dissipation performance, fast air heat dissipation, lasting operation, safety to use.
+
+
Overview
Reviews
Feature: 1. EDR? 120? 12 Model rail power supply, easy installation, designed with back mounting hole
2. All copper transformer have strong electrical conductivity and are not easy to generate heat.
3. The voltage regulator is smaller and more stable than the traditional transformer, so that you can use it at ease.
4. Good ventilation and heat dissipation performance, fast air heat dissipation, lasting operation, safety to use.
5. Multiple protection functions such as over current protection, over voltage protection, overload protection, short circuit protection.
Specification: Item
Type: Rail
Power Supply Material: Aluminum
Shell Model: EDR-120-12 Output
DC Voltage: 12V
Rated Current: 10A
Current Range: 0-10A
Rated Power: 120W
Ripple and Noise: 80 MVP-P
Voltage Adjustment Range: 12-14V
Voltage Accuracy: ± 2.0 %
Linear Adjustment: ± 0.5 %
Load Adjustment Rate: ± 1.0 % Start and
Rise Time: 500ms, 70ms/230VAC 500ms, 70ms/115VAC (full load)
Holding Time (TYP): 36ms/230VAC 32ms/115VAC (full load)
Input Voltage Range: 100-240VAC
Frequency Range: 50-60Hz
Efficiency (TYP): 85%
AC current (TYP): 1.45A /115VAC 0.9A /230VAC Inrush
Current (TYP): 20A/115VAC 35A/230VAC
Leakage Current: < 3.5 mA/240VAC
Package List: 1 x Rail
Power Supply Note: Wiring according to the diagram, check again that the wiring is correct before turning on the power.
2. All copper transformer have strong electrical conductivity and are not easy to generate heat.
3. The voltage regulator is smaller and more stable than the traditional transformer, so that you can use it at ease.
4. Good ventilation and heat dissipation performance, fast air heat dissipation, lasting operation, safety to use.
5. Multiple protection functions such as over current protection, over voltage protection, overload protection, short circuit protection.
Specification: Item
Type: Rail
Power Supply Material: Aluminum
Shell Model: EDR-120-12 Output
DC Voltage: 12V
Rated Current: 10A
Current Range: 0-10A
Rated Power: 120W
Ripple and Noise: 80 MVP-P
Voltage Adjustment Range: 12-14V
Voltage Accuracy: ± 2.0 %
Linear Adjustment: ± 0.5 %
Load Adjustment Rate: ± 1.0 % Start and
Rise Time: 500ms, 70ms/230VAC 500ms, 70ms/115VAC (full load)
Holding Time (TYP): 36ms/230VAC 32ms/115VAC (full load)
Input Voltage Range: 100-240VAC
Frequency Range: 50-60Hz
Efficiency (TYP): 85%
AC current (TYP): 1.45A /115VAC 0.9A /230VAC Inrush
Current (TYP): 20A/115VAC 35A/230VAC
Leakage Current: < 3.5 mA/240VAC
Package List: 1 x Rail
Power Supply Note: Wiring according to the diagram, check again that the wiring is correct before turning on the power.
