1/4"-20x10mm Threaded Insert Nuts Hex Socket Drive for Wood Furniture 100pcs

Be the first to review this product...

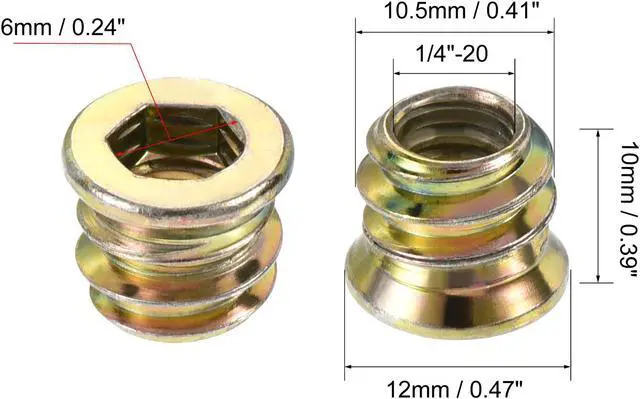

[Sizes] Internal Thread Size: 1/4"-20; External Thread Diameter: 10.5mm / 0.41"; Total Height: 10mm / 0.39"; Head Diameter: 12mm / 0.47"; Hex Socket Width: 6mm / 0.24"
[Material] Made of carbon steel, color galvanized surface treatment, high hardness, and perfect wear resistance, inner hexagon socket, smooth, non-slip.
[Applications] Suitable for hardwood, such as solid wood, has a good effect on the furniture combination. Package Content: 100pcs x Threaded Insert Nuts
[Advantage] The unique external thread ensures positive locking and offers strong resistance against pull-out due to torsion or vibration.
[Installation] Make a hole smaller than the outer diameter of 0.2-0.5mm and lock the nut with a hex wrench. The mounting hole should not be larger than the outer diameter of the thread. When the nut is locked, some wood glue can be applied to the outer teeth to make the fastening effect good.

Overview

Specs

Reviews

Description: 1. Made of carbon steel, color galvanized surface treatment, high hardness, and perfect wear resistance, inner hexagon socket, smooth, non-slip. 2. Suitable for hardwood, such as solid wood, has a good effect on the furniture combination. 3. The unique external thread ensures positive locking and offers strong resistance against pull-out due to torsion or vibration. 4. Make a hole smaller than the outer diameter of 0.2 - 0.5 mm and lock the nut with a hex wrench. The mounting hole should not be larger than the outer diameter of the thread. When the nut is locked, some wood glue can be applied to the outer teeth to make the fastening effect good.
Specification: Product
Name: Insert
Nuts for woodMaterial: Q235
Carbon SteelMain Color: Color
ZincFinish: Color
Zinc PlatingHead Type: Hex
Socket HeadInternal Thread Size: 1/4"-20External
Thread Diameter: 10.5 mm / 0.41"T otal
Height: 10mm / 0.39"H ead
Diameter: 12mm / 0.47"H ex
Socket Width: 6mm / 0.24"P ackage
Content: 100pcs x Threaded Insert Nuts
