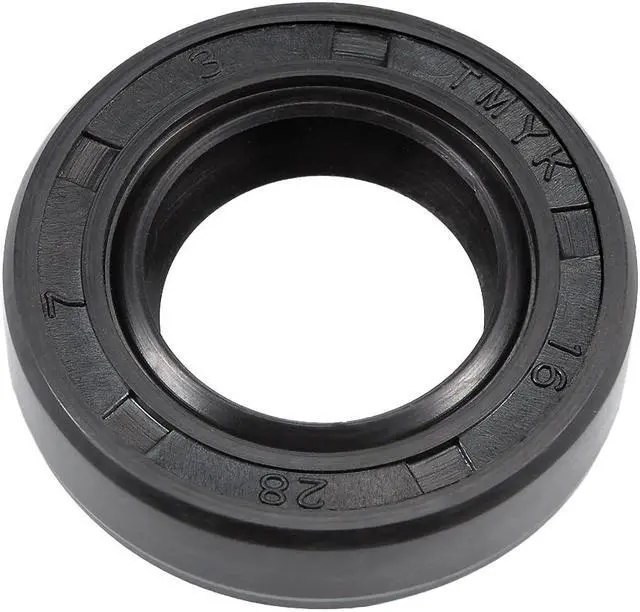

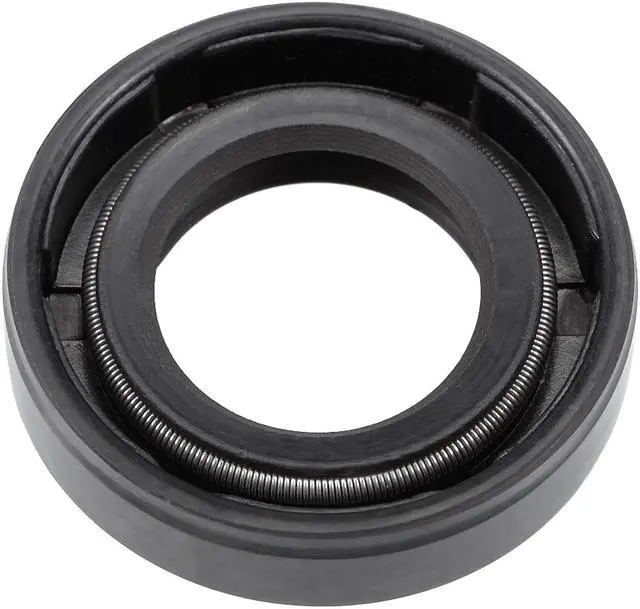

Oil Seal, TC 16mm x 28mm x 7mm, Nitrile Rubber Cover Double Lip

[Metric Size] - 28mm Outside Diameter, 16mm Inner Diameter, 7mm Width
[Nitrile Rubber] - Standard 70A NBR with a temperature range from -4℉ (-20°C) to 212℉ (100°C)
[Advantage] - Good resistance to many petroleum oils, greases, hydraulic fluids, mineral oil, and grease
[Application] - Oil seals are used to protect shafts and bearings from ingress of dirt and foreign matter and egress of oil or grease
[NOTE] - Please confirm the required size and material before purchase, and put it in the right place

Overview

Specs

Reviews

Description:

KEY_TAB

For use across a wide temperature range from -22 degrees F (-30 degrees C) to 212 degrees F (100 degrees C).
This shaft oil seal has a durometer of 70.
Nitrile Rubber or Nitrile has good mechanical properties when compared with other elastomers and high wear resistance. Good resistance to many petroleum oils, greases, hydraulic fluids, mineral oil and grease.
It is widely used in the manufacture of sealing products, but it is not suitable for phosphate series hydraulic oils and gear oils with extreme additives.

KEY_TAB

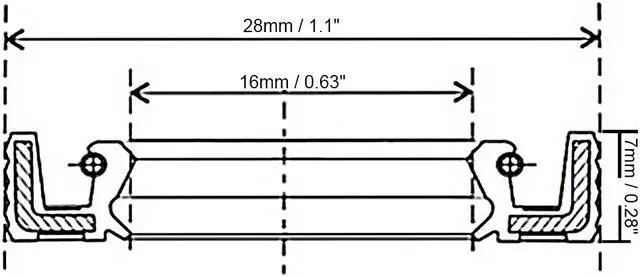

Specifications:

KEY_TAB

Inner Diameter: 16mm / 0.63-inch
Outer Diameter: 28mm / 1.1-inch
Thickness: 7mm / 0.28-inch
Material : Nitrile Rubber Cover, Steel Spring
Working Temperature Range : -22KEY_TAB degreesKEY_TAB F to 212KEY_TAB degreesKEY_TAB F
Pressure: 0.3bar

General
Brand	Unique Bargains

Type
Type	Washers

Features
Features	Lip Seals;Engine Front Cover Seal;Dual Lips Oil Shaft Seal;Oil Seal for Trailer;Radial Shaft Seals

Additional Information
First Listed on Newegg	March 07, 2019
