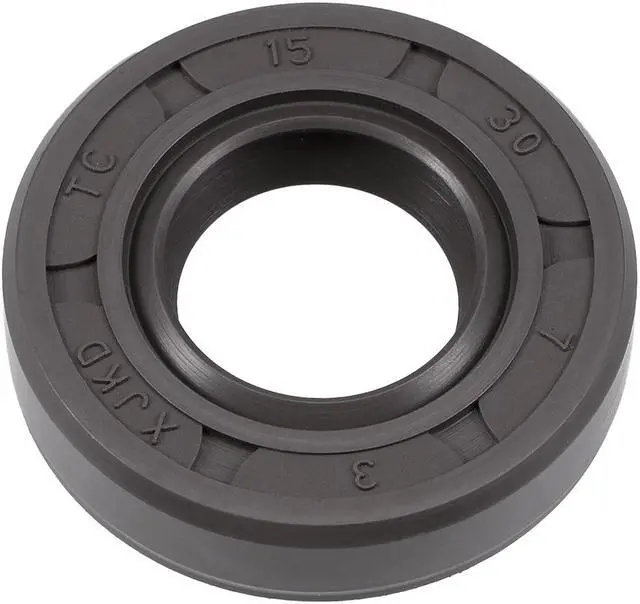

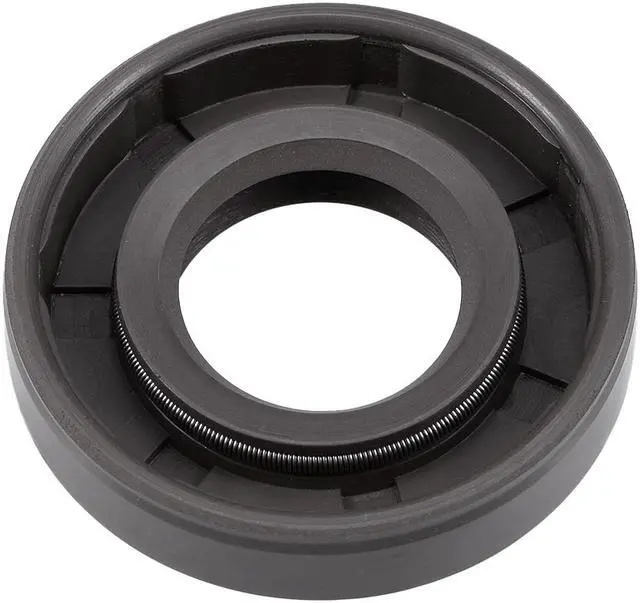

Oil Seal, TC 15mm x 30mm x 7mm, Nitrile Rubber Cover Double Lip
- [Metric Size] - 30mm Outside Diameter, 15mm Inner Diameter, 7mm Width
- [Nitrile Rubber] - Standard 70A NBR with a temperature range from -4℉ (-20°C) to 212℉ (100°C)
- [Advantage] - Good resistance to many petroleum oils, greases, hydraulic fluids, mineral oil, and grease
- [Application] - Oil seals are used to protect shafts and bearings from ingress of dirt and foreign matter and egress of oil or grease
- [NOTE] - Please confirm the required size and material before purchase, and put it in the right place
+
+
Overview
Specs
Reviews
Description:
- For use across a wide temperature range from -22 degrees F (-30 degrees C) to 212 degrees F (100 degrees C).
- This shaft oil seal has a durometer of 70.
- Buna N or Nitrile has good mechanical properties when compared with other elastomers and high wear resistance. Good resistance to many petroleum oils, greases, hydraulic fluids, alcohol, mineral oil and grease.
- It is widely used in the manufacture of sealing products, but it is not suitable for phosphate series hydraulic oils and gear oils with extreme additives.

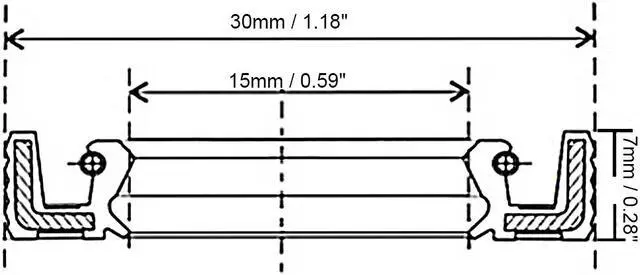

Specifications:
- Inner Diameter: 15mm / 0.59-inch
- Outer Diameter: 30mm / 1.18-inch
- Width: 7mm / 0.28-inch
- Material : Nitrile Rubber Cover, Steel Spring
- Working Temperature Range : -22 degrees F to 212 degrees F
- Pressure: 0.3bar
