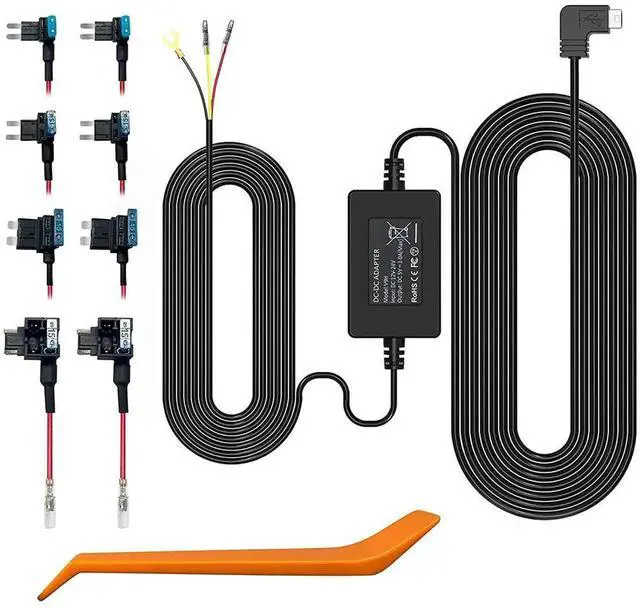

WOLFBOX USB C Hardwire Kit for G840S/G930/G850 PRO/G850/G900/G900 PRO/G840H Mirror Dash Cam, Parking Monitor with Multiple Size connectors

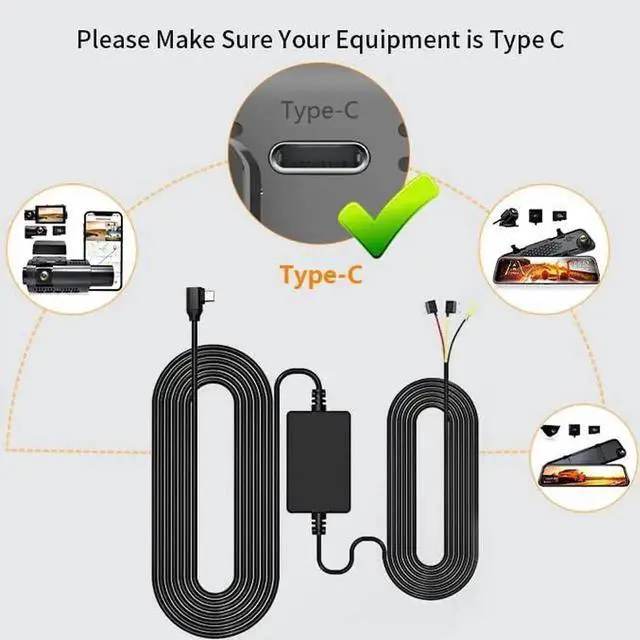

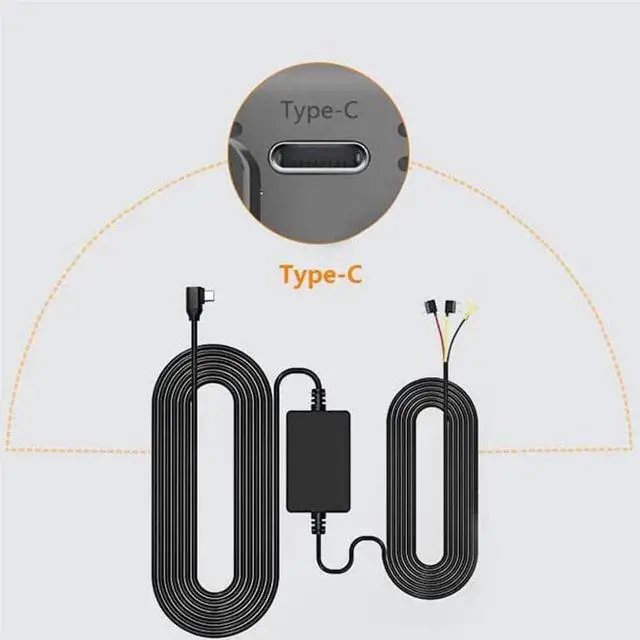

WOLFBOX USB Type-C Hardwire Kit

Warm tips:

1. Please make sure the ACC and BAT is connected correctly.

2. The length of this hardwire kit is 11.5ft, suitable for most trucks, SUVs and other vehicles.

3. Please note that installation steps may vary by vehicle model and specific conditions. It is strongly recommended to refer to the vehicle manual or seek professional help before installation.

Time-lapse function:

After WOLFBOX mirror dash cam is connected to this dedicated hardwire kit and turn the time-lapse function on the dash cam, the camera will enter the time-lapse recording function automatically when the car engine is off. In this mode, it records one frame per second, which extremely saves power and capacity, you don't need to worry about draining out of the car battery. This is because when the car engine is off, the ACC will have no power, and the dash cam will detect it and change recording mode from normal to time-lapse.

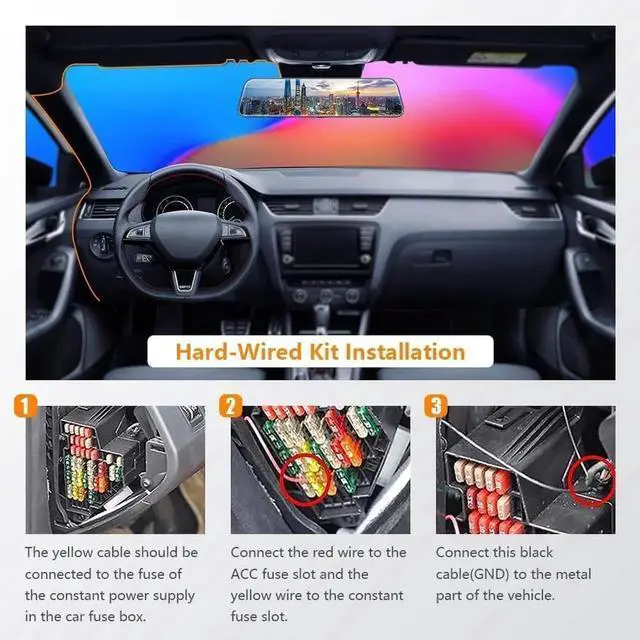

-Instructions for installation-

1. Stop the engine.

2. Open the fuse box.

3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.

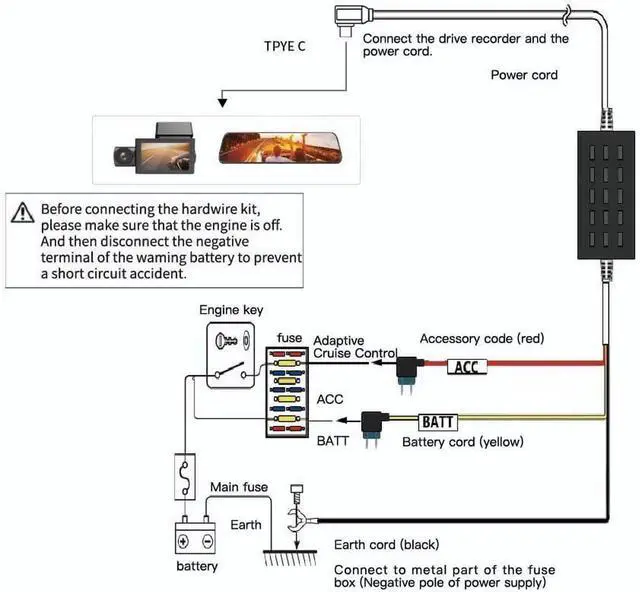

4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
