$19.99
Meet Your Seller

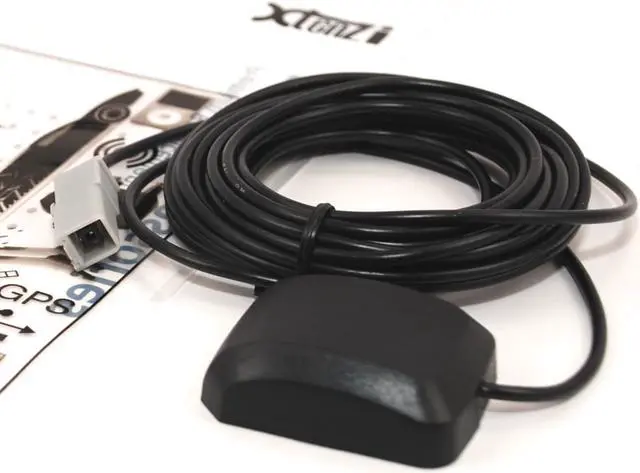

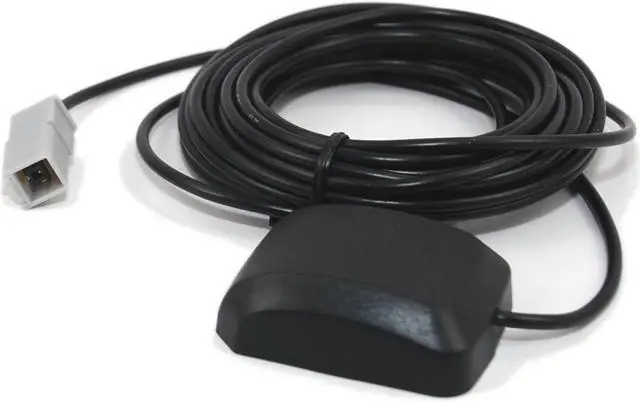

Xtenzi Cable Active GPS Antenna Alpine Compatible models INA-w900BT Nve-n055ps Nve-n055pv Nve-n055vp Nve-n055zp Nve-n077p Nve-n077ps Nve-n099p
- Xtenzi Brand , 5 Meters Active GPS Antenna For Alpine

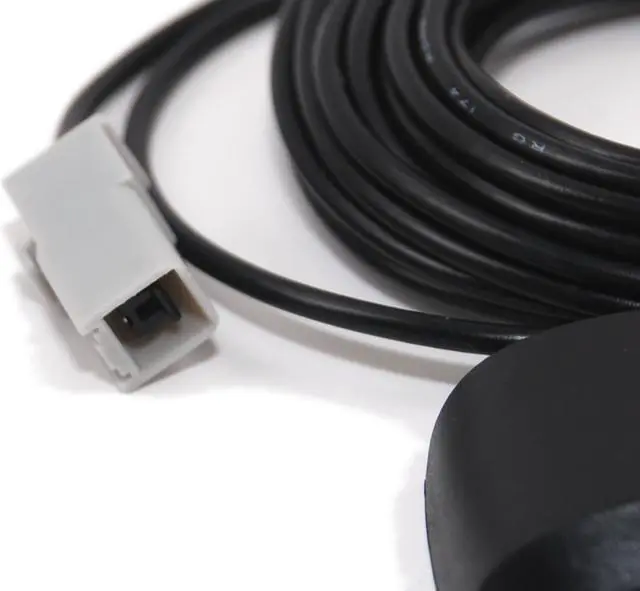

- GT5 Connector Compatible with almost all GPS with GT5 plug
- Active Gain for better signal
- Built-in Powerful Low Noise Amplifier
+
+
Overview
Specs
Reviews
Alpine gps antenna for following models will fit: Alpine INA-W900 INA-W900BT Alpine NVE-N055PS NVE-N055PV NVE-N055VP NVE-N055ZP NVE-N077P NVE-N077PS NVE-N099P see you catalog for exact replacement or email us Dielectric Antenna Center Frequency 1575.42MH z±3 MHz V. S. W.
R 1.5: 1 Band Width ±5 MHz Impendence 50 ohm Peak Gain >3dBic Based on 7×7cm ground plane Gain Coverage >-4dBic at -90°<0<+90°(over 75% Volume) Polarization RHCP # LNA/Filter LNA Gain (Without cable) 28dB Typical Noise Figure 1.5 dB Filter Out Band Attenuation (f0= 1575.42 MHZ) 7dB Min f0+/-20MHZ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ V. S. W. R < 2.0 DC Voltage 3V, 5V, 3V to 5V DC current 5mA, 10mA Max # Mechanical Weight <110 (g) Size 50×39×16mm Cable RG174 3 meters Connector GT5 Mounting Magnetic base Housing Black # Environmental Working Temp -40? ~+85? Vibration Sine sweep 1g(0-p)10~50~10Hz each axis Humidity Humidity95%~100%RH Weatherproof 100%Waterproof
R 1.5: 1 Band Width ±5 MHz Impendence 50 ohm Peak Gain >3dBic Based on 7×7cm ground plane Gain Coverage >-4dBic at -90°<0<+90°(over 75% Volume) Polarization RHCP # LNA/Filter LNA Gain (Without cable) 28dB Typical Noise Figure 1.5 dB Filter Out Band Attenuation (f0= 1575.42 MHZ) 7dB Min f0+/-20MHZ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ V. S. W. R < 2.0 DC Voltage 3V, 5V, 3V to 5V DC current 5mA, 10mA Max # Mechanical Weight <110 (g) Size 50×39×16mm Cable RG174 3 meters Connector GT5 Mounting Magnetic base Housing Black # Environmental Working Temp -40? ~+85? Vibration Sine sweep 1g(0-p)10~50~10Hz each axis Humidity Humidity95%~100%RH Weatherproof 100%Waterproof
