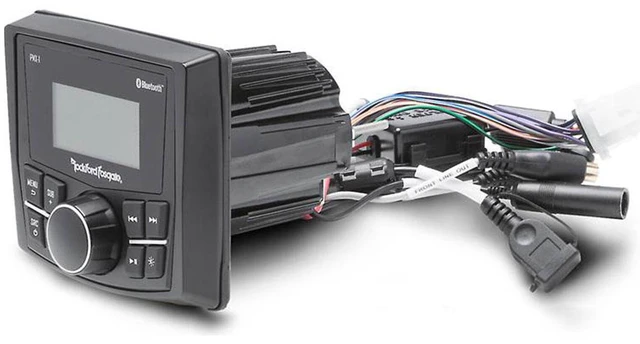

Rockford Fosgate PMX-1 2.3" Display Marine Digital Media Receiver

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready design also provides protection against water, dust, and UV rays.

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

1. 2-Year Warranty
2. AUX and USB Inputs with USB Charging
3. Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
4. AM/FM/WB Tuner
5. RF Connect iOS / Android App with native control of PMX-1
6. A2DP and AVRCP Bluetooth® Wireless Streaming
7. Voltage gauge with Low voltage Warning
8. 7-Band Graphic EQ + PEQ
9. Independent Subwoofer Level Control
10. Multi-region radio frequencies

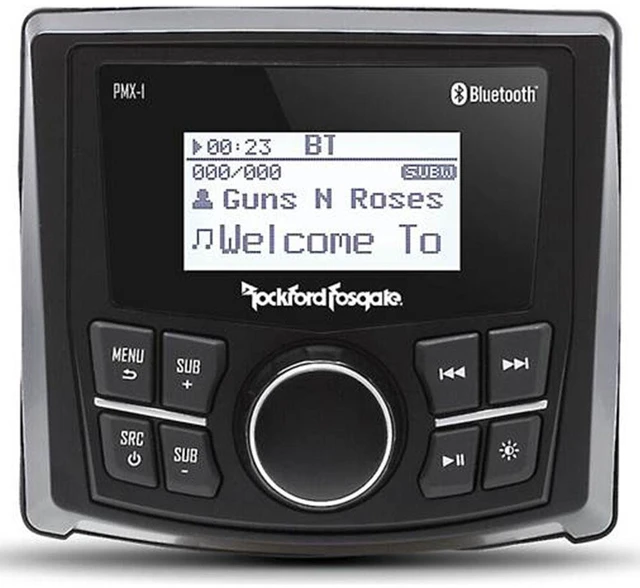

11. Wet bonded 2.3" Full Dot Matrix LCD Display
12. 9H Tempered Glass Screen
13. Compatible with PMX-BTUR Steering Wheel Remote
14. IP6 Marine Grade Front Panel
15. FCC, CE and EN60945 Certified

Multi-Zone/Multi-Source

(Yes/No)

No

Speaker Outputs

(Yes/No)

Yes

Bluetooth®

(Yes/No)

Yes

3.0+EDR, A2DP 1.3

TUNER

Number Of Presets

18 FM / 12 AM / 6 WB

Device Type

Digital-Media Receiver

Pandora® Internet Radio

(Yes/No)

No

Steering Wheel Control Ready

(Yes/No)

No

AUX Input

(Yes/No)

Yes (1 RCA pair)

SiriusXM-Ready®

(Yes/No)

No

Clock

(Yes/No)

No

Frequency Response

RCA: 20 Hz - 20 kHz

High-Level: 20 Hz - 20 kHz

USB Charging

(Yes/No)

Yes

Media Formats

MP3

WMA

MIn. Speaker Impedance

2

Power Output (max)

CEA-2006 Power Rating

25W x 4 @ 4 RMS

50W x 4 @ 2 MAX

1.0% THD+N

FM Tuner

Range: 87.9 - 107.9 MHz

Sensitivity: 8 dB

Frequency Response. 20 - 15 KHz

AM Tuner

Range: 530 - 1710 kHz

Sensitivity: 40 dB

Frequency Response: 45 to 2.4 KHz

Output Impedance

<500

Signal to Noise Ratio

RCA 2V: >85 dB

High-Level CEA-2006: >75 dB

High-Level Max Watts: >85 dB

Channel Separation

RCA: >70 dB

High-Level: >50 dB

Compatible Remotes

N/A

Max Output Voltage

RCA Front: 2 V

RCA Rear/Sub: 2 V

Max THD+N

High-Level: <1.0 @ 4-Ohm

USB Version

2.0

Idle Current

<2 A

Operating Voltage

9 - 16 VDC

USB Output Current

1 A

Fuse Rating

20 A

Shipping Weight

1.22 Lbs. (0.55 Kg)

Dimensions

Width: 4.5" (11.5 cm)

Face Depth: 1.5" (3.8 cm)

Mount Depth: 3.38 (8.6 cm)

Height: 4.2 (10.6 cm)
