Rockford Fosgate M2-500X1 Marine 500 Watt Mono Element Ready Subwoofer Amplifier

Designed to withstand the elements, the M2-500X1 Element Ready amplifier is a 500 watt, class-D model, capable of operating at 4 or 2 mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. Its designed for those who want a reliable with all the power and performance youve come to expect from Rockford Fosgate at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being under rated, easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.

1. 2-Year Warranty
2. RCA pass-thru outputs
3. CEA-2006 Compliant & CE Compliant
4. "Auto-Sense" turn-on with remote out (high level in)
5. C.L.E.A.N. input/output clip detection and indicator LEDs
6. Conformal coated circuit board protects against dust and water
7. UV stable powder coated cast aluminum heatsink
8. Optimized using AudioGraph PowerCube measurement tool

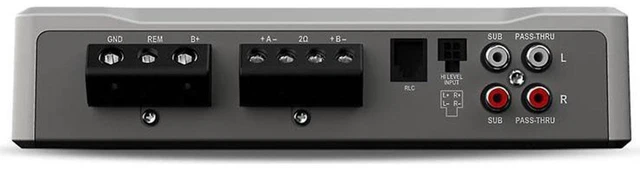

9. Integrated Power and Speaker Terminals
10. Balanced Differential Inputs eliminates noise picked up by signal cables
11. Integration with OEM and Aftermarket Radios
12. Low Impedance Stability
13. RATS (Rockford Automated Testing System) proprietary quality & performance tested

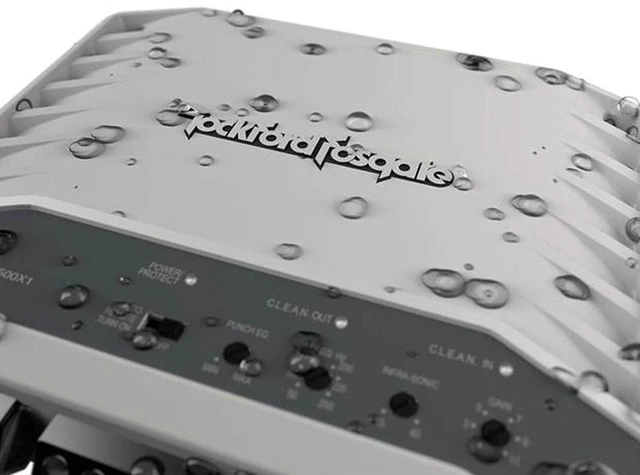

14. Element Ready design protects against outdoor exposure
15. Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
16. Continuously Variable On Board Punch EQ

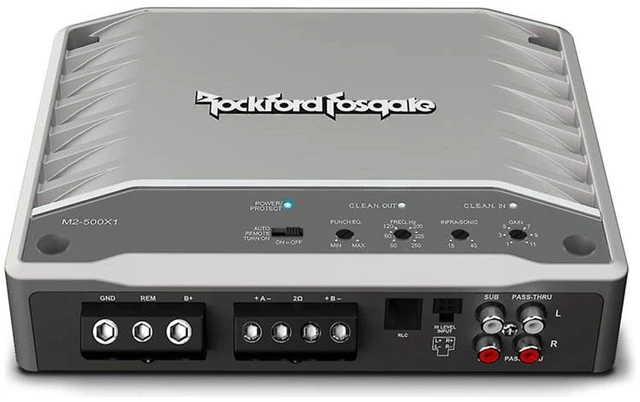

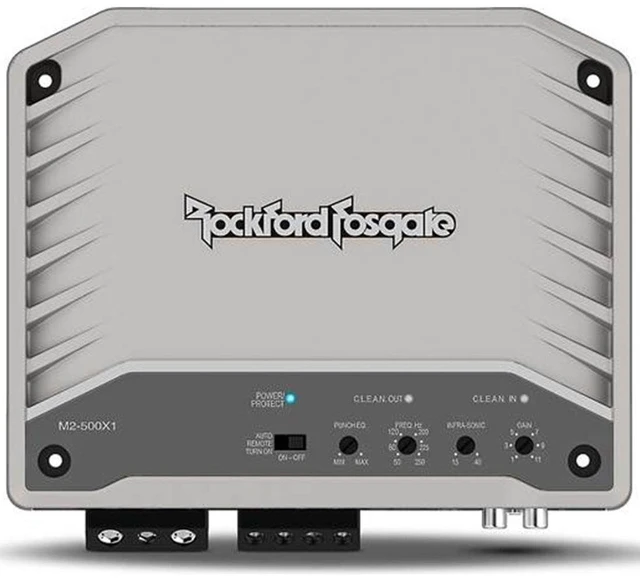

17. Top Mounted Control Panel
18. Short Circuit & Over Current Protection
19. Rollback Protection
20. Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

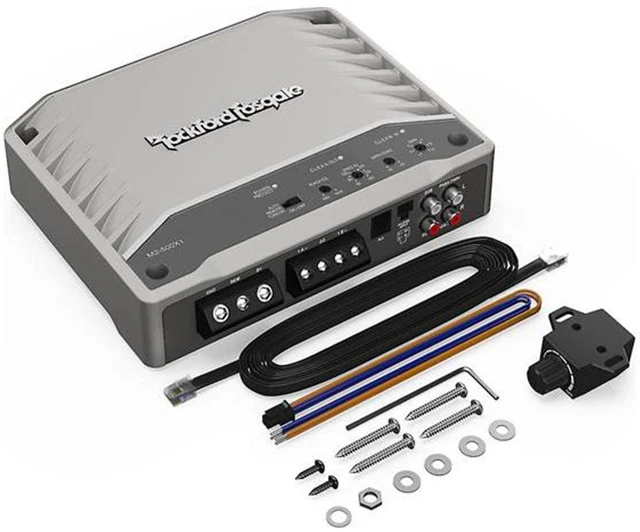

21. Includes RLC Remote Level Control
22. Variable Infrasonic Filter
23. Zinc Nickel-plated Marine grade brass connection terminals

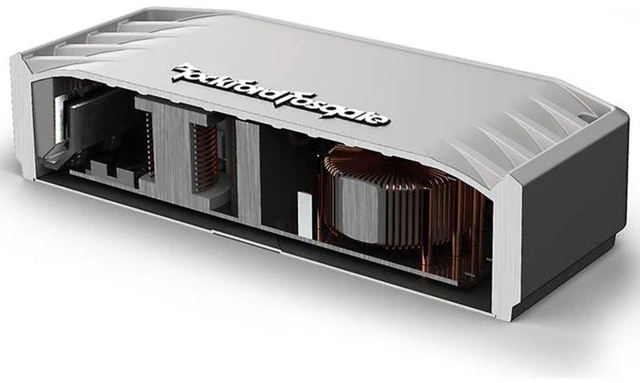

24. Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

Cta-2006 Compliant

Number of Channels

1

Total Power

(Sum of Rated Power)

500 Watts

Rated Power

(RMS Continuous Power)

300 Watts x 1 @ 4

500 Watts x 1 @ 2

Dynamic Power

(PVC/PowerCube®)

350 Watts x 1 @ 4

590 Watts x 1 @ 2

Bridgeable

No

Frequency Response

20 Hz - 250 Hz

Input Sensitivity

Low-Level: 150 mV - 4 V

High-Level: 450 mV - 12 V

Circuit Topology Class

Class D

Efficiency (average)

Total Harmonic Distortion (THD+Noise)

4: <1.0%

2: <1.0%

Signal Input

Low-Level: 2 RCA

High-Level: 4-Pin Molex

Signal Output

Low-Level: 2 RCA

(Pass-Thru active with RCA or Hi-Level input)

Tone Controls

0 to +18 dB @ 45 Hz

Crossover Controls

Low-Pass:

50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic:

15 Hz - 40 Hz @ 12dB/Octave Butterworth

Remote Controls

Yes

Visual Indicators

Power/Protect

C.L.E.A.N. In

C.L.E.A.N. Out

Power Wire Gauge

4 AWG

Power Input Connector

Compression Terminal Block

Speaker Wire Gauge

8 AWG

Speaker Output Connector

Compression Terminal Block

Cooling

Convection

Heatsink

Operating Voltage

9 - 16 VDC

Recommended Fuse

(not included)

80 A

Average Current Draw (13.8V Music) -

Max. Current Draw (13.8V Sinewave)

52 A

Suggested Alternator -

Included In The Box -

Dimensions (H x W x D)

1.9" x 6.8" x 8.5"

(4.9 cm x 17.3 cm x 21.5 cm)

Shipping Weight

4.8 Lbs. (2.18 Kg)
