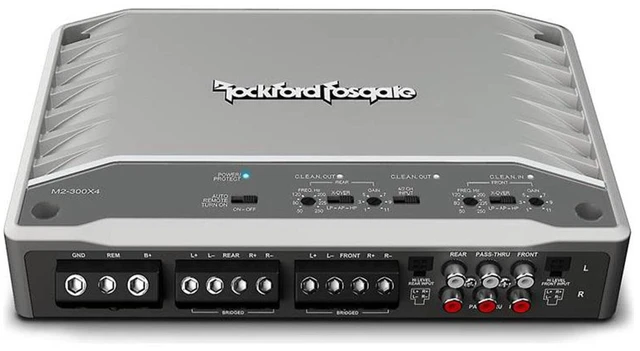

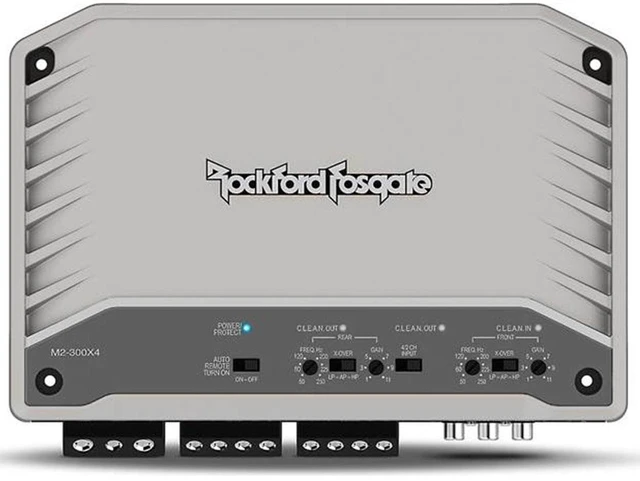

Rockford Fosgate M2-300X4 Marine 300 Watt 4-Channel Element Ready - Amplifier

Designed to withstand the elements, the M2-300X4 Element Ready amplifier is a 300 watt, full-range class-D model, capable of operating at 4 or 2 stereo, and 4 bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.

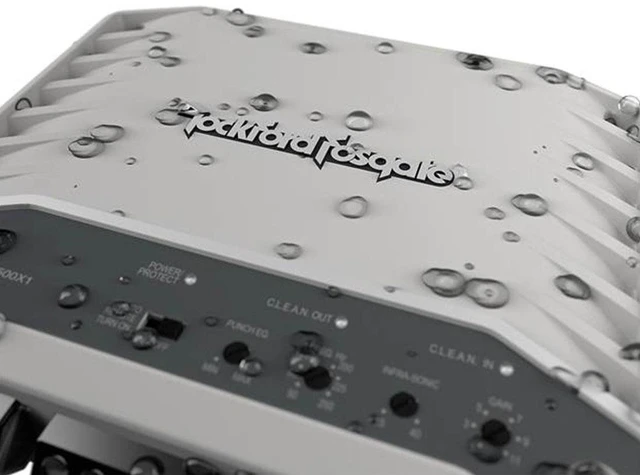

The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. Its designed for those who want a reliable amplifier with all the power and performance youve come to expect from Rockford Fosgate at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being under rated, easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.

1. 2-Year Warranty
2. RCA pass-thru outputs
3. CEA-2006 Compliant & CE Compliant
4. "Auto-Sense" turn-on with remote out (high level in)
5. C.L.E.A.N. input/output clip detection and indicator LEDs
6. Conformal coated circuit board protects against dust and water
7. UV stable powder coated cast aluminum heatsink
8. Optimized using AudioGraph PowerCube measurement tool
9. Integrated Power and Speaker Terminals
10. Balanced Differential Inputs eliminates noise picked up by signal cables
11. Integration with OEM and Aftermarket Radios
12. Low Impedance Stability
13. RATS (Rockford Automated Testing System) proprietary quality & performance tested
14. Element Ready design protects against outdoor exposure
15. Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
16. Top Mounted Control Panel
17. Short Circuit & Over Current Protection
18. Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
19. Zinc Nickel-plated Marine grade brass connection terminals

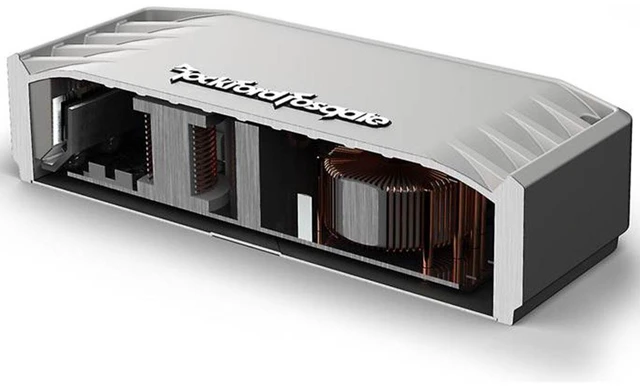

20. Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
21. 2/4 channel input switch

Cta-2006 Compliant

Number of Channels

4

Total Power

(Sum of Rated Power)

300 Watts

Rated Power

(RMS Continuous Power)

50 Watts x 4 @ 4

75 Watts x 4 @ 2

150 Watts x 2 @ 4 Bridged/Mono

Dynamic Power

(PVC/PowerCube®)

70 Watts x 4 @ 4

115 Watts x 4 @ 2

230 Watts x 2 @ 4 Bridged/Mono

Bridgeable

Yes

Frequency Response

20 Hz - 20 kHz

Input Sensitivity

Low-Level: 150 mV - 4 V

High-Level: 450 mV - 12 V

Circuit Topology Class

Class D

Efficiency (average)

Total Harmonic Distortion (THD+Noise)

4: <1.0%

2: <1.0%

Signal Input

Front Low-Level: 2 RCA

Front High-Level: 4-Pin Molex

Rear Low-Level: 2 RCA

Rear High-Level: 4-Pin Molex

Input Switch: 2/4 Input

(works for RCA/High-Level inputs)

Signal Output

Low-Level: 2 RCA

(Pass-Thru active with RCA or Hi-Level input)

Tone Controls

No

Crossover Controls

Front High-Pass:

50 Hz - 250 Hz @ 12dB/Octave Butterworth

Front Low-Pass:

50 Hz - 250 Hz @ 12dB/Octave Butterworth

Rear High-Pass:

50 Hz - 250 Hz @ 12dB/Octave Butterworth

Rear Low-Pass:

50 Hz - 250 Hz @ 12dB/Octave Butterworth

All-Pass: Yes

Remote Controls

No

Visual Indicators

Power/Protect

C.L.E.A.N. In

C.L.E.A.N. Out (front)

C.L.E.A.N. Out (rear)

Power Wire Gauge

4 AWG

Power Input Connector

Compression Terminal Block

Speaker Wire Gauge

8 AWG

Speaker Output Connector

Compression Terminal Block

Cooling

Convection

Heatsink

Operating Voltage

9 - 16 VDC

Recommended Fuse

(not included)

60 A

Average Current Draw (13.8V Music) -

Max. Current Draw (13.8V Sinewave)

39 A

Suggested Alternator -

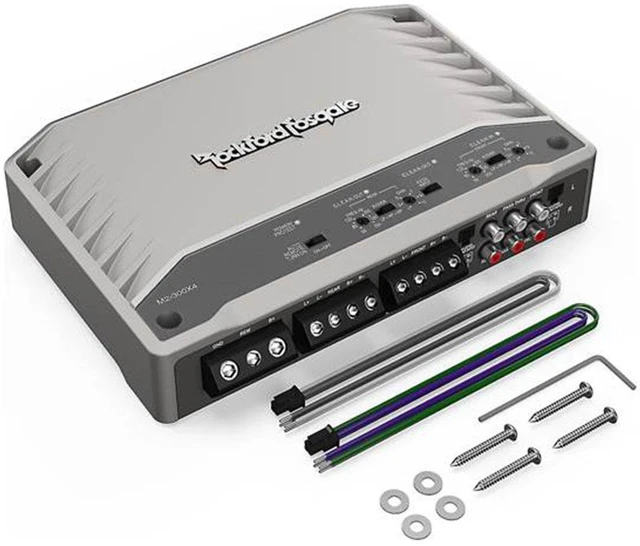

Included In The Box

Dimensions (H x W x D)

1.9" x 6.8" x 10.1"

(4.9 cm x 17.3 cm x 25.5 cm)

Shipping Weight

4.75 Lbs. (2.15 Kg)
