Rockford Fosgate M5-1000X1 1000 Watt Mono Marine Element Ready Subwoofer Amplifier

Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. Youll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification.

Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving once again these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.

- Play all day, easy to integrate, and keep music playing for extended lengths of time
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
- C. L. E. A. N. input/output clip detection and indicator LEDs

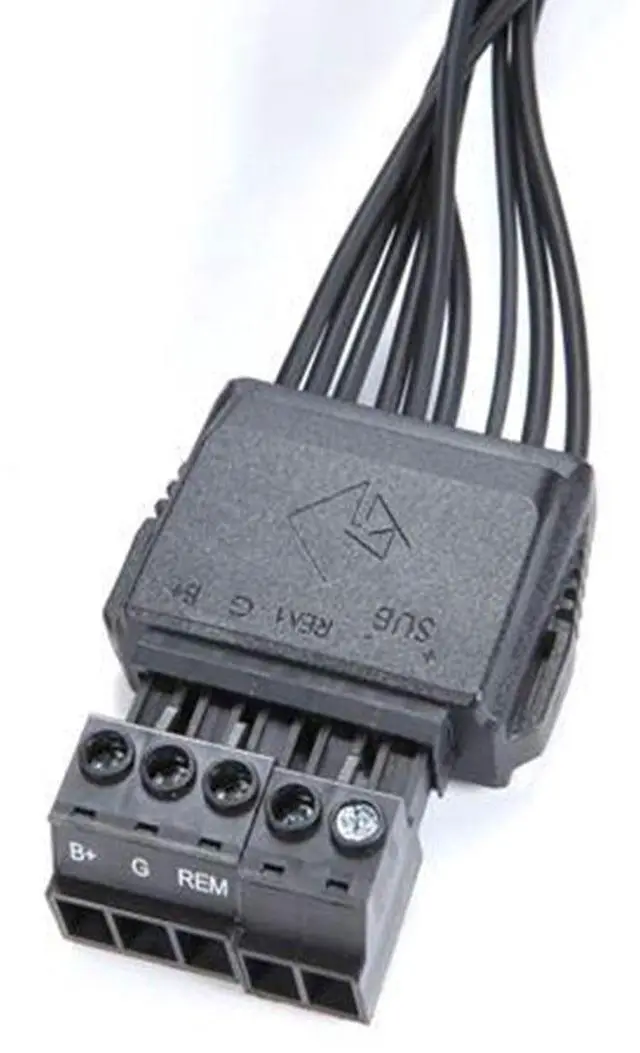

- Element Ready design with integrated harness & panel seals
- Constant Power provides instantaneous delivery of output over varying impedance loads
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Low Impedance Stability
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

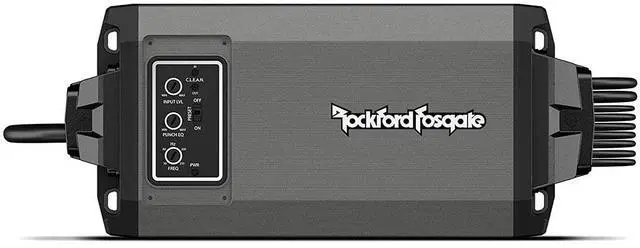

- Top mounted control panel with Element Ready smoked lens cover
- MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
- 2-Year Warranty
- Remote-Out feature when using high level inputs
- Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
- Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
- OEM and aftermarket radio integration inputs
- Class-BD technology provides 75-80% efficiency over traditional class A/B designs

Number of Channels: 1
Circuit Topology Class: Class BD
Frequency Response: 30Hz - 245Hz
Total Power (Sum of Rated Power): 1000 Watts
RMS: 500 Watts x 1 @ 4 / 750 Watts x 1 @ 2 / 750 Watts x 1 @ 1
Dynamic Power: 525 Watts x 1 @ 4 / 900 Watts x 1 @ 2 / 1000 Watts x 1 @ 1
Crossover Controls: Low-Pass - 50 Hz - 250 Hz @ 12dB/Octave /
Infrasonic: 30 Hz @ 12dB/Octave
Dimensions (H x W x D): 1.7" x 4.25" x 8.41" / ( 42.8 mm x 108 mm x 213 mm)
