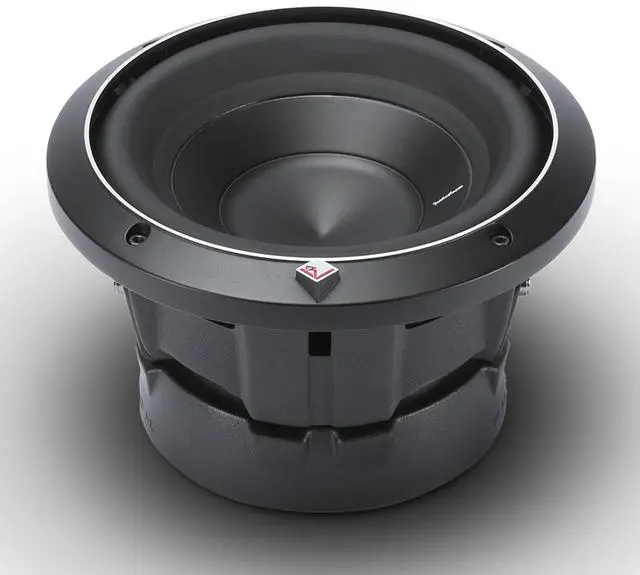

Rockford Fosgate P2D4-8 Punch 8" P2 4-Ohm DVC Subwoofer

The Rockford Fosgate P2 8 subwoofer continues The PUNCH tradition. The P2D4-8 features a Dual 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.

Rockford Fosgate has always been known as "The PUNCH" and the P2 8" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

1. 1 Year Warranty
2. Kevlar fiber reinforced paper cone
3. Diamond cut cast aluminum trim ring with optional grille
4. StampCast basket with integrated spider venting
5. High-temp voice coil with spun-laced Nomex® re-inforcement collar
6. Protective PVC textured magnet cover
7. Extended pole piece and bumped vented backplate
8. Dual linear spider with embedded 16 AWG tinsel leads
9. Custom 10-AWG nickel plated push terminals

Magnet Weight (oz)

49 oz. (1.38 kg.)

Sd (cm²)

221

Nominal Impedance

Dual 4-Ohm

Mounting Depth

4.76 in. (120.8 mm)

Power Handling (Watts RMS)

250 Watts RMS

500 Watts Max

Size

8"

Speaker Connector

Dual 10 AWG compression

Shipping Weight

10.763 Lbs. (4.88 kg.)

Voice Coil Diameter

2.25" (57.7 mm)

SPL (dB @ 1w/1m)

83

Fs (Hz)

43

Cutout Diameter

7.13 in. (181 mm)

Re (Ohms)

6.90

Qts

0.52

Qes

0.58

Qms

5.40

Vas (Liters)

9.9

Xmax (mm)

7.7

Woofer Displacement

0.042 cu. ft. (1.2 Liters)

CEA-2031 Compliant

Le (mH)

4.3

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.23 cu. ft. (6.5 Liters)

Vented Box Volume (Vb)

0.65 cu. ft. (18.4 Liters)
