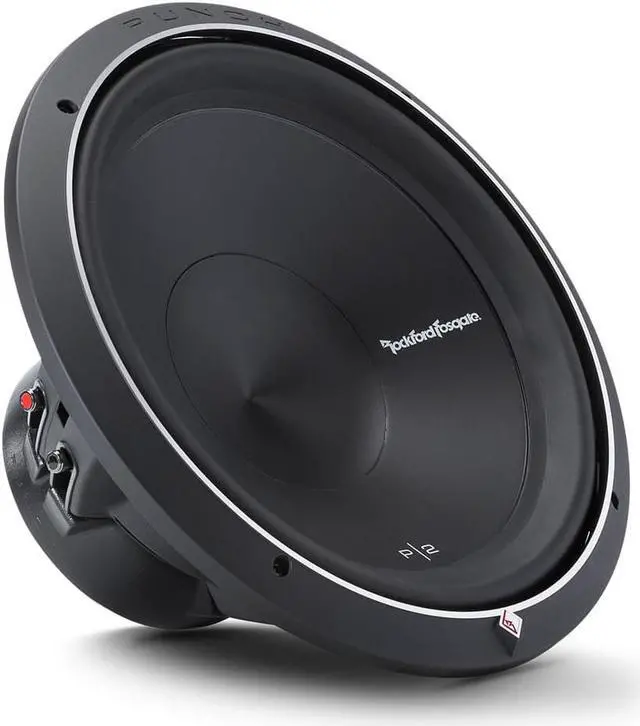

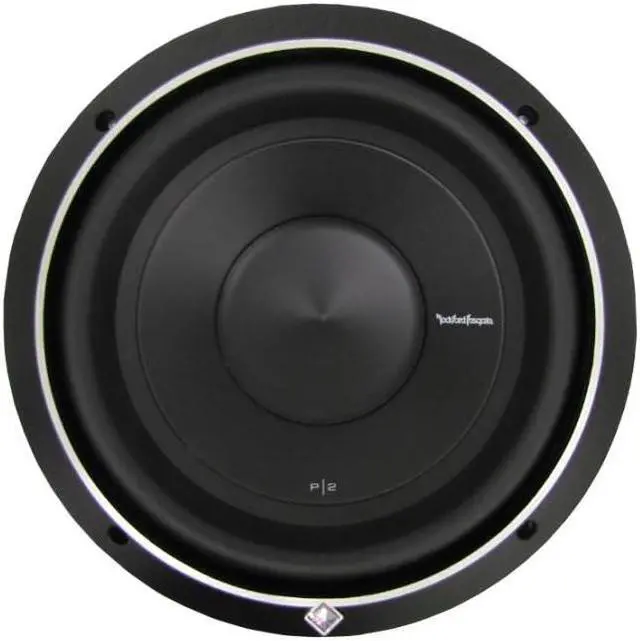

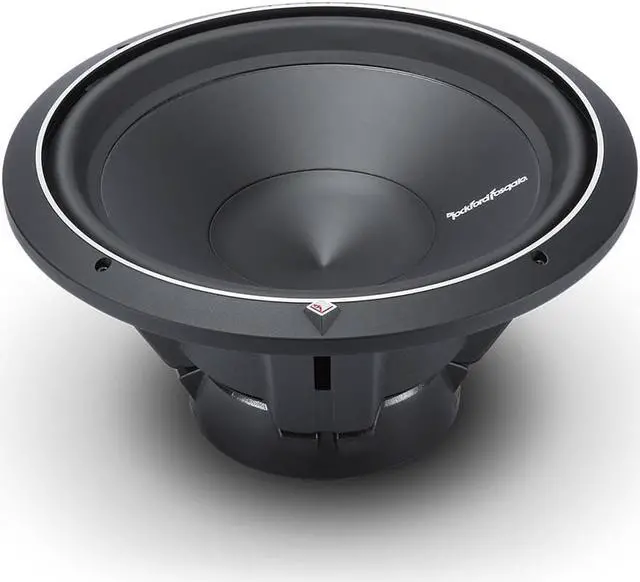

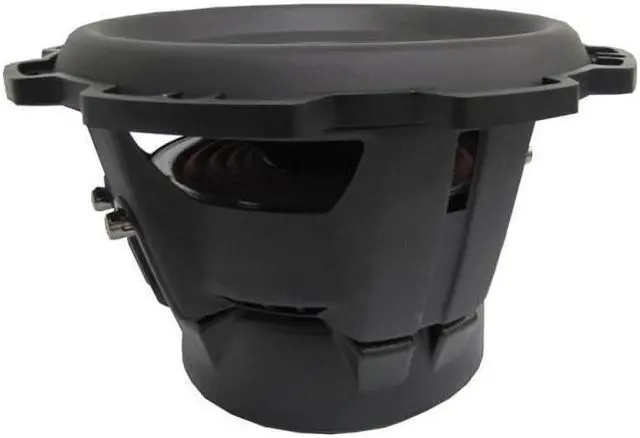

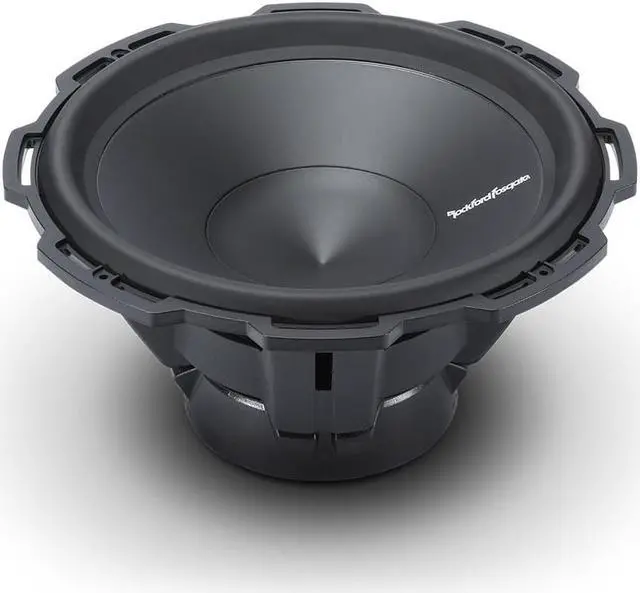

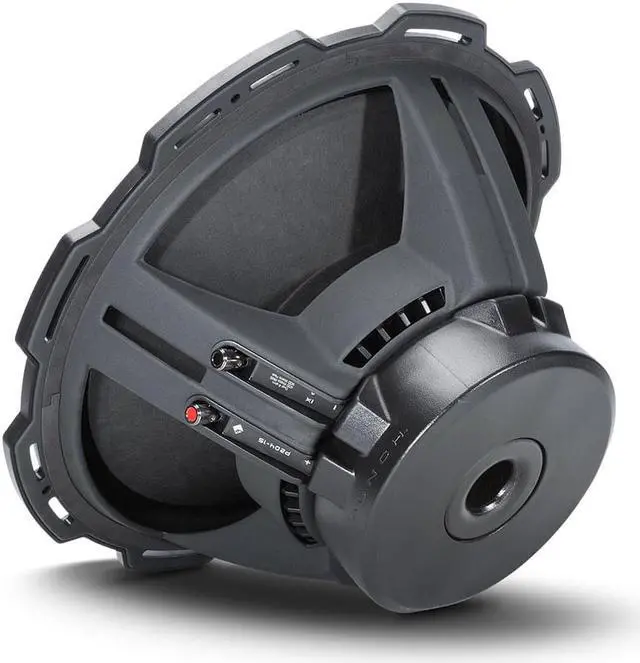

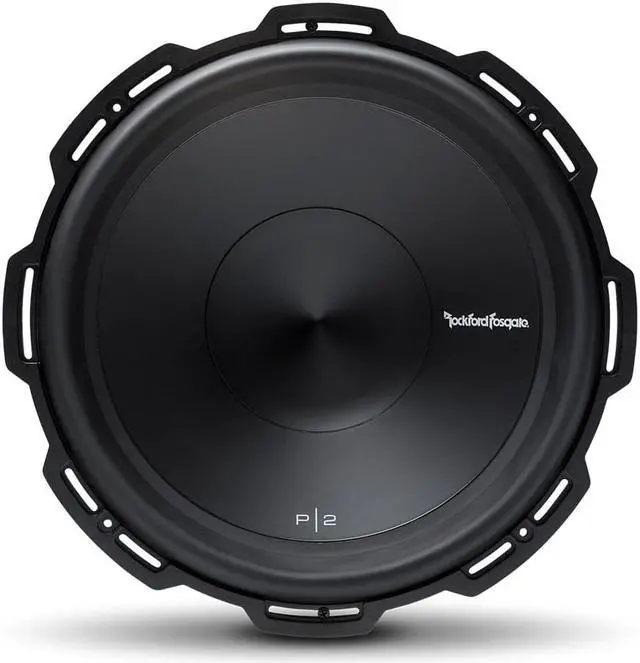

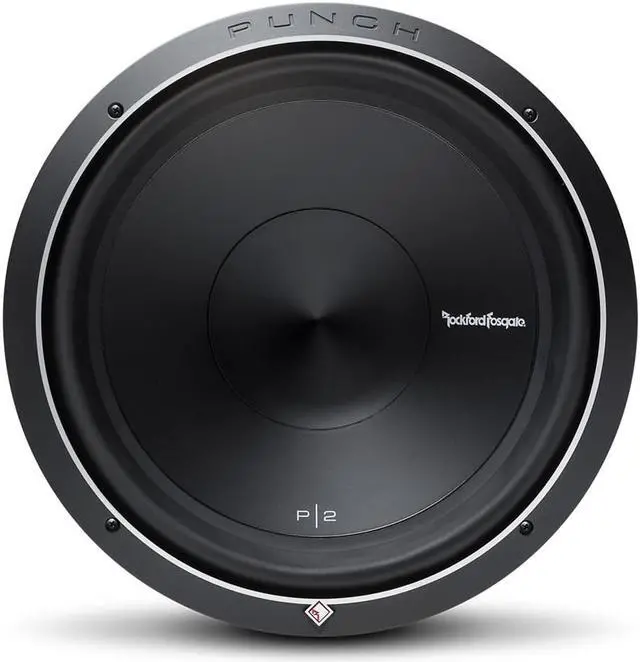

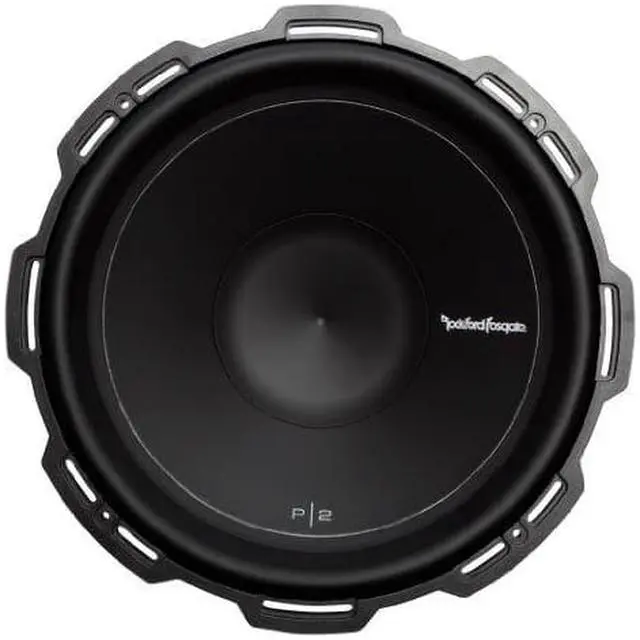

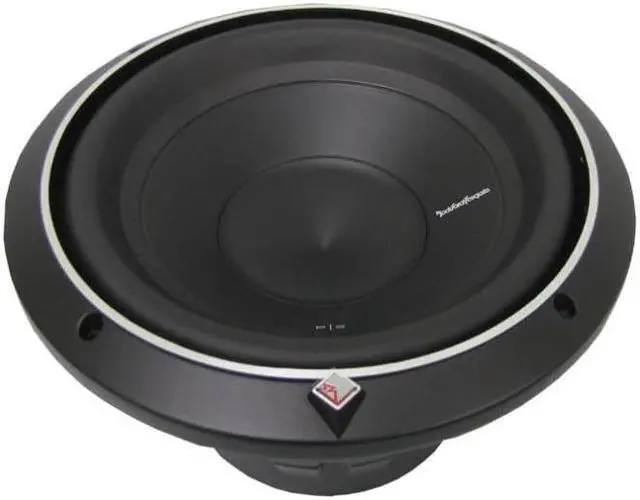

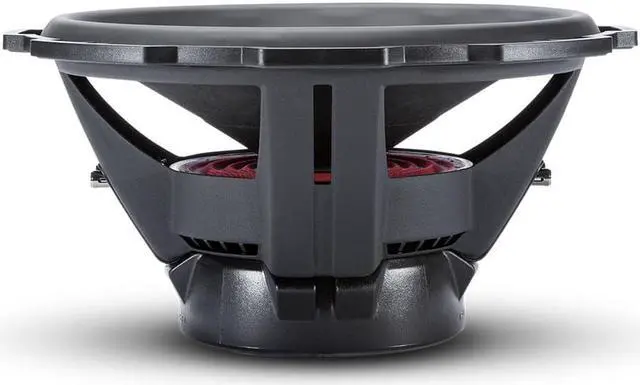

Rockford Fosgate P2D2-15 Punch 15 P2 2-Ohm DVC Subwoofer

The **Rockford Fosgate P2D2-15** 15" 800 Watt 2-Ohm Punch Series Car Audio Subwoofer will provide "The Punch" you desire. This sub features Kevlar fiber reinforced paper cones that will deliver superior bass impact; VAST technology that increases the cone surface area up to 25%; an Anodized Voice Coil Former that provides superior heat dissipation (up to 100° at full power levels); A Flex Fit Basket that allows fine-tuning of the mounting position; Stitched Tinsel Leads that reduces fatigue and possible shorting and increasing reliability and performance. The P2D2-15 sub conforms to CEA-2031 industry standards to offer the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils. If you are looking for thumping bass, look no further than the Rockford Fosgate P2D2-15 15" 800 Watt 2-Ohm Punch Series Subwoofer!

**We are an Authorized Rockford Fosgate Dealer!**

Read the Owner's Manual [here.][1]

Read the Specifications [here.][2]


[1]: //www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/4020118-0_P2Subs-MAN_Rev2.pdf
[2]: //www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/RFPB_P2D2-15-TS_RevD.pdf

• NEW **ROCKFORD FOSGATE P2D2-15** 15" 800 Watt Car Audio Subwoofer
• MAX Power Handling: 800 Watts
• RMS Power Handling: 400 Watts
• Dual linear spider with embedded 16 AWG tinsel leads
• Custom 10-AWG nickel plated push terminals
• Extended pole piece and bumped vented backplate
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Protective PVC textured magnet cover
• Kevlar fiber reinforced paper cone
• StampCast basket with integrated spider venting
• Diamond cut cast aluminum trim ring with optional grille (grille NOT included)
• **Specifications:**
• Size: 15"

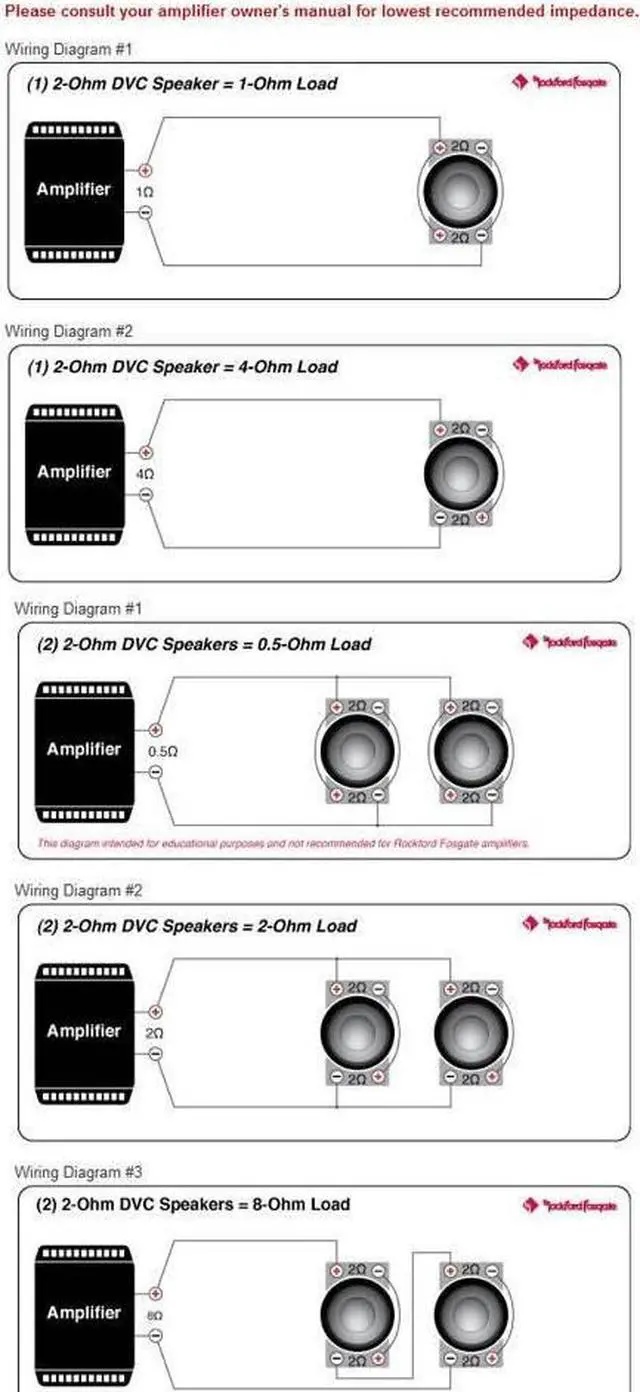

• Nominal Impedance: Dual 2-Ohm
• Voice Coil Diameter: 2.25" (57.7 mm)
• Magnet Weight (oz): 72.8 oz. (2.06 kg.)
• Speaker Connector: Dual 10 AWG compression
• Fs (Hz): 20
• Re (Ohms): 3.30
• Le (mH): 3.4
• Qms: 6.40
• Qes: 0.69
• Qts: 0.62
• Vas (Liters): 219.6
• Sd (cm2): 894
• SPL (dB @ 1w/1m): 86
• Xmax (mm): 13.3
• Woofer Displacement (in): 0.170 cu. ft. (4.8 Liters)
• Cutout Diameter (in): 13.9 in. (353 mm)
• Mounting Depth (in): 7.34 in. (186.5 mm)
• CEA-2031 Compliant
• Weight: 18 lbs
• Product Condition: BRAND NEW!
• Part Number: **P2D2-15**
• Warranty: 2 Year VMInnovations Warranty
