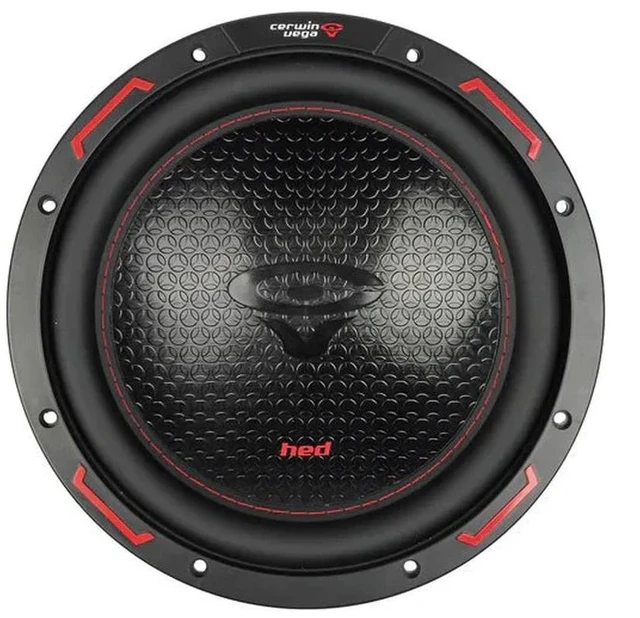

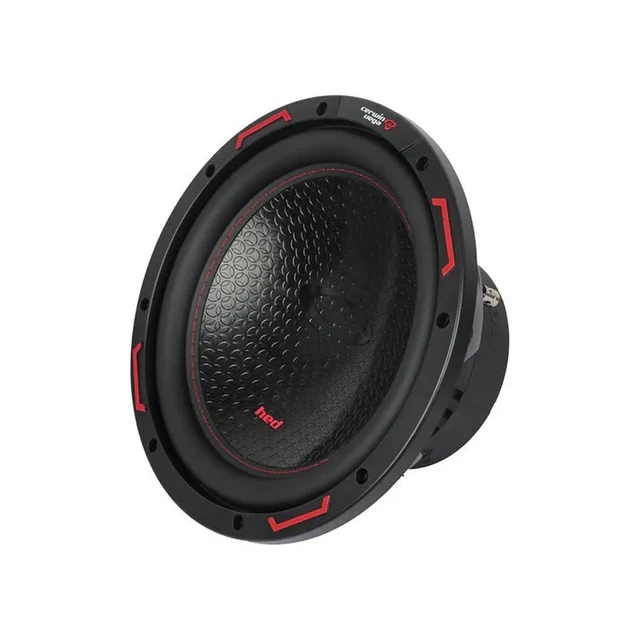

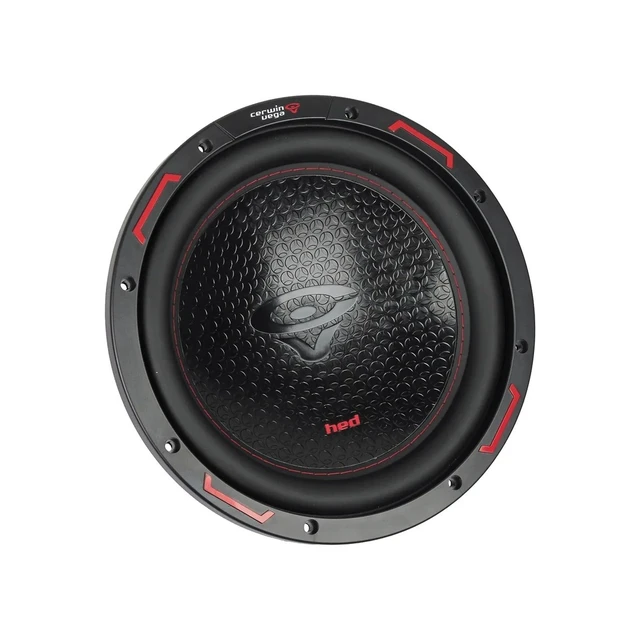

Cerwin Vega H10DV4 HED Series 10" 4-Ohm DVC Car Subwoofer

The Cerwin Vega H10DV4 HED Series 10" subwoofer is designed to deliver deep, powerful bass with the control needed for demanding car audio systems. Its high-excursion design, dual 4-ohm voice coils, polypropylene cone, treated foam surround, and ferrite motor structure provide a strong foundation for tight and impactful low-frequency performance.

The H10DV4 combines 550W RMS power handling with a high-excursion design to support strong bass output at higher listening levels. Its ferrite motor structure helps maintain controlled cone movement while the woofer moves more air for deeper, more aggressive low-frequency performance.

1. 550W RMS power handling
2. 1650W maximum power
3. 8mm Xmax
4. Polypropylene cone
5. Treated foam surround
6. Ferrite ceramic magnet
7. High-excursion design

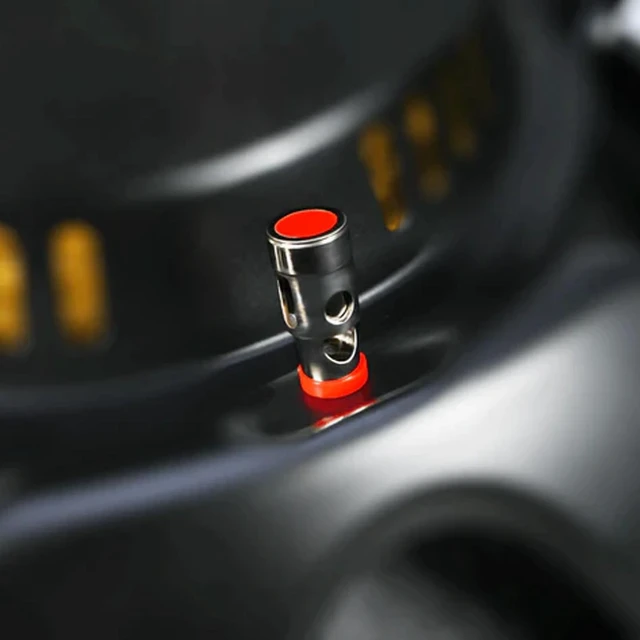

Dual 4-ohm voice coils give the H10DV4 flexible wiring options when configuring your system. Series or parallel wiring allows you to match the subwoofer's impedance to a wide range of mono amplifier setups.

1. Dual 4-ohm voice coil configuration
2. 2.5" voice coil diameter
3. Parallel wiring option
4. Series wiring option
5. Flexible amplifier impedance matching

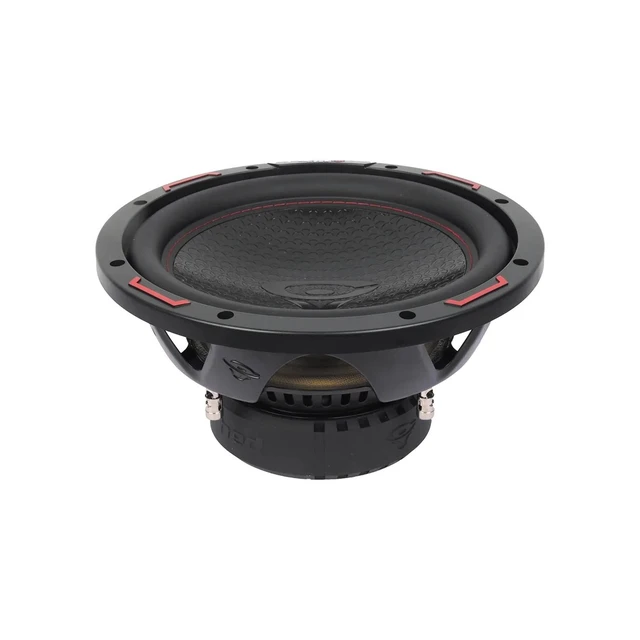

The H10DV4 works with both sealed and ported enclosures, allowing you to choose the type of bass response you want from your system. A sealed enclosure provides tight, musical bass, while a ported design can increase output and low-frequency extension.

1. Compatible with sealed enclosures
2. Compatible with ported enclosures
3. Stamped-steel basket
4. 5.41" mounting depth
5. 9.33" cutout diameter
6. 9.96" overall diameter
