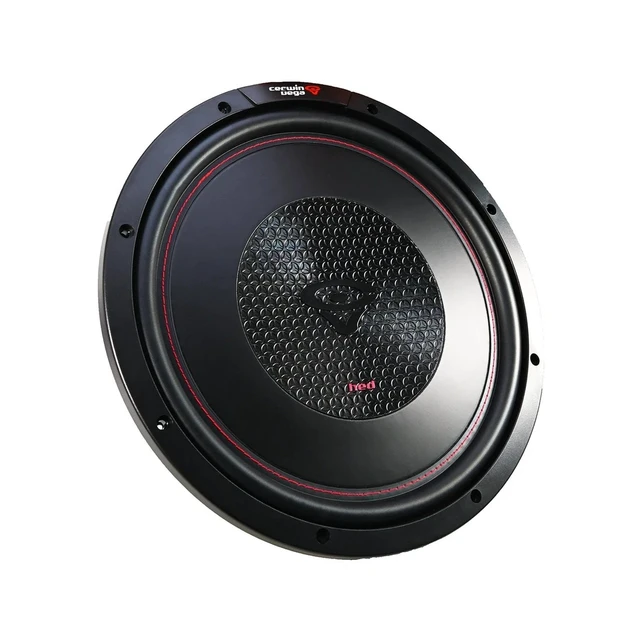

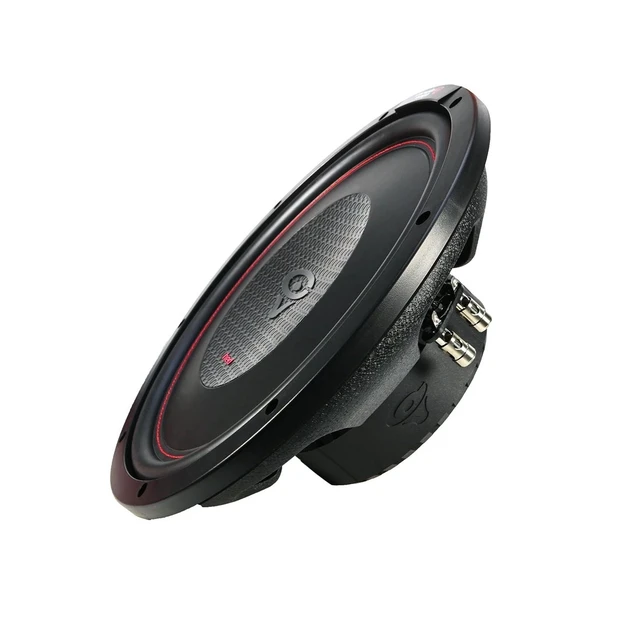

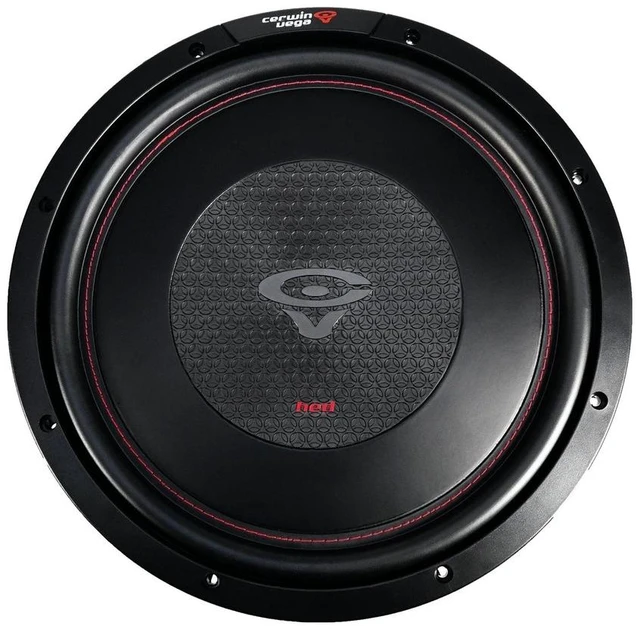

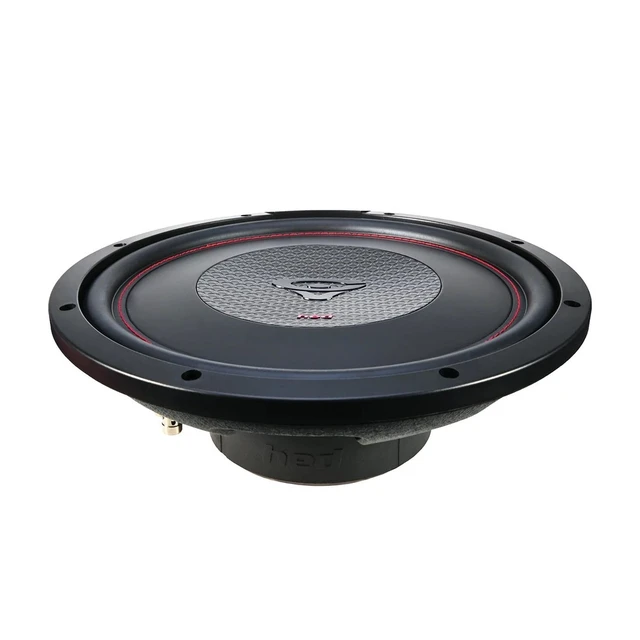

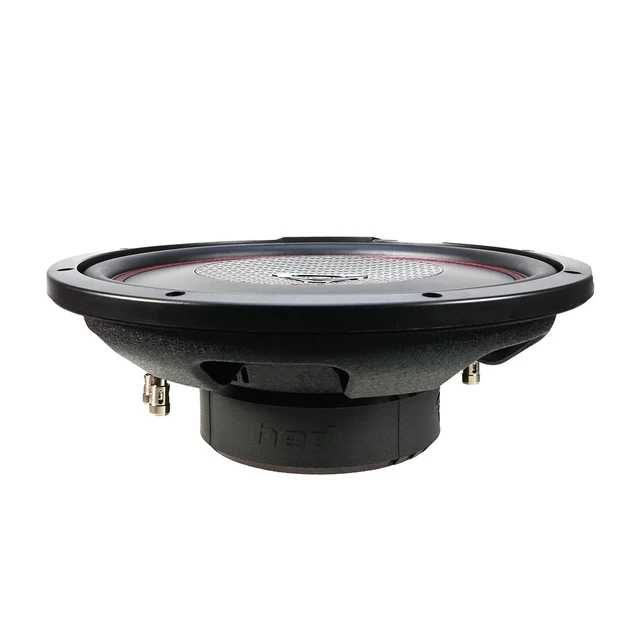

Cerwin Vega HS12DV4 HED Series 12" 4-Ohm DVC Shallow-Mount Subwoofer

The Cerwin Vega HS12DV4 HED Series 12-inch shallow subwoofer delivers deep, controlled bass in installations where space is limited. Its slim 4.25-inch mounting depth, high-excursion design, and dual 4-ohm voice coils make it a flexible choice for compact vehicle audio systems.

The shallow-mount design helps fit powerful low-frequency performance into tighter installation spaces. With an 8 mm Xmax and a 4.25-inch mounting depth, the HS12DV4 is built to move plenty of air without requiring a deep enclosure.

1. 12-inch HED Series shallow-mount subwoofer
2. 4.25-inch (108 mm) mounting depth
3. 11.18-inch (284 mm) cutout diameter
4. 12.56-inch (319 mm) overall diameter
5. 4.84-inch (123 mm) overall height
6. 8 mm Xmax

The HS12DV4 combines a hybrid polypropylene and treated paper cone with a stitch-reinforced TPE foam surround for responsive, controlled bass. Its ferrite motor structure provides strong magnetic control for consistent performance at higher power levels.

1. 400W RMS power handling
2. 1200W maximum power
3. Hybrid polypropylene and treated paper cone
4. Stitch-reinforced TPE foam surround
5. Ferrite motor structure
6. 2.5-inch high-temperature voice coil

The dual 4-ohm voice-coil configuration gives you multiple wiring options for matching the subwoofer to your amplifier. The HS12DV4 can also be used in either sealed or ported enclosures, letting you tailor the bass response to your system.

1. Dual 4-ohm voice coils
2. 4 + 4-ohm series impedance
3. Compatible with sealed enclosures
4. Compatible with ported enclosures
5. Sealed enclosure for tight, controlled bass
6. Ported enclosure for increased output
