Yassdwbn AHD 1080P Reverse Backup Trunk Handle Camera For Benz C Class C180 C200 C260 MB

AHD 1080P Reverse Backup Trunk Handle Camera For Benz C Class C180 C200 C260 MB W204 W205 S204 W212

AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.

Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.

The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Chips components : HD /OV2053HD
* Viewing angle: 170 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1920x1080P (PAL)
* Signal format: NTSC or PAL
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : Fisheye 6 glass Lens .
* Waterproof : IP68
* Working power supply: DC12V
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W

For Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 2011-2013

Tip:

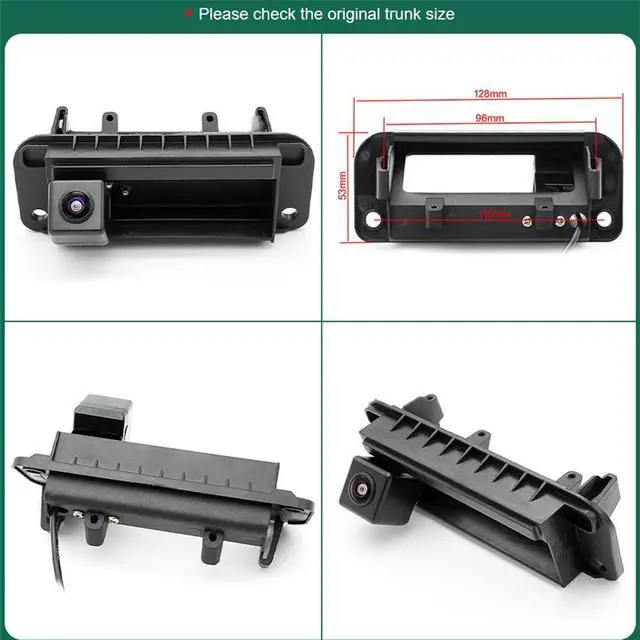

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.
2. If your monitor can not support AHD video signal, please Cut the green wire change to CVBS video signal, please re-connect all cables
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
