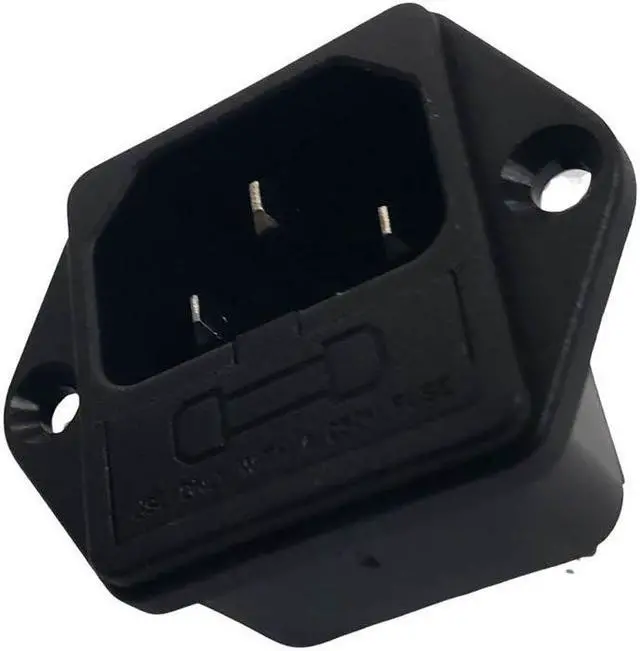

Main image of 719W-00/03 - AC PLUG 3POS 10A 250V QT PLAST BLK W/FUSE HLDR NO FUSE 5X20MM

Visit Sayal electronics Store

719W-00/03 - AC PLUG 3POS 10A 250V QT PLAST BLK W/FUSE HLDR NO FUSE 5X20MM

719W-00/03 - AC PLUG 3POS 10A 250V QT PLAST BLK W/FUSE HLDR NO FUSE 5X20MM...

Overview

Specs

Reviews

IEC 60320 C14 AC Power Inlet with dual 5x20mm Fuse holder (One Active One spare) 0.187 quick disconnect / Solder Terminals

AC 3 PIN RECEPTACLES WITH MALE PINS CHASIS COUNTERSUNK SCREW MOUNT MODULE WITH FUSE HOLDER ( NO FUSE 5X20MM) NOT SWITCHED NOT FILTERED 10 TO +60 c

MATERIAL:
MOULDING: NYLON FLAMMABILITY RATING UL 94 V0
CONTACTS: BRASS PINS NICKEL PLATED TAGS TIN PLATED
RATING: 10A 250V AC
CONTACT RESISTANCE: <10m OHM
INSULATION RESISTANCE: >100M OHM 500VDC MIN
DIELECTRICS STRENGTH: 2000VAC/1mA 1MIN
A.C. BREAKDOWN:
POLEPOLE: 5kV
POLESPANEL: 4.0kV
OPERATING TEMPERATURE: 10 °C TO +60 °C
APPROVALS: UL CSA TUV CCC
DUAL FUSEHOLDER ONE ACTIVE ONE SPARE
FUSES NOT INCLUDED RECOMMENDED SIZE

Certificate of RoHS Compliance

719W00/03 is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU
