Product Details
:

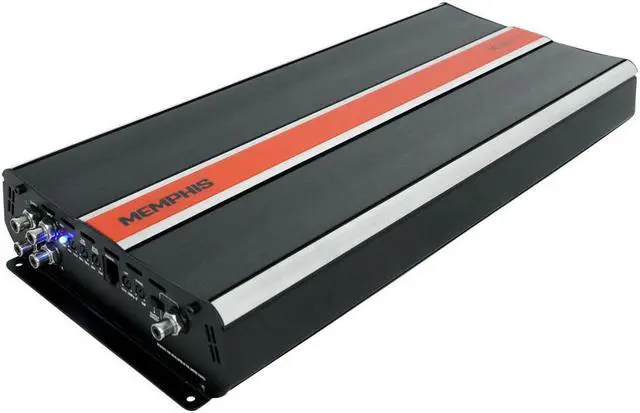

Class D 1 ohms Stable Monoblock Amplifier
RMS Power Rating:
4 ohms: 1275 watts x 1 channel
2 ohms: 2100 watts x 1 channel
1 ohm: 3000 watts x 1 channel
Total RMS power output: 3000 watts
Extruded aluminum Heatsink
Pulse Width Modulated MOSFET power supply
LED Power/Protect Light

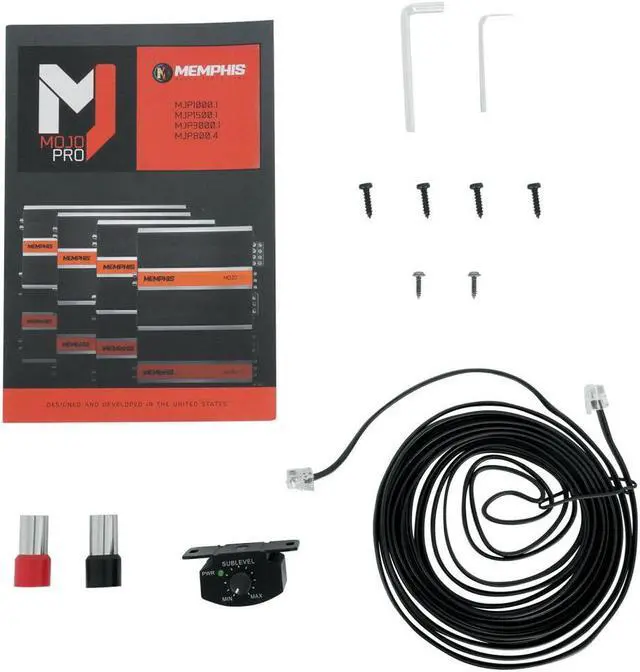

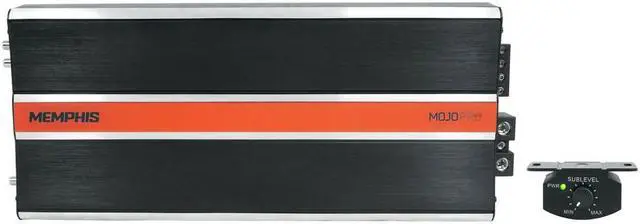

Wired remote bass level control included
Soft start turn-on
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity:
Low level:. 2 - 6 volts
Frequency Response: 11 - 200 Hz
Total Harmonic Distortion (THD): <1%
Variable low-pass filter: 32 - 220 Hz
Subsonic filter: 10 - 50 Hz
Variable Bass Boost: 0 - 12 dB
1/0 AWG gauge power and ground wiring is recommended for installation.
Dimensions: 16.8" W x 7.5" L x 2" H
