Rockford Fosgate R2-250X1 Prime 250 Watt Mono Subwoofer Amplifier

Primed for Performance, the R2-250X1 is a 250 watt, Class-D amplifier, capable of operating at 4 or 2 mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The R2 models are developed for car audio fanatics that want a reliable amplifier with all the power and performance youve come to expect from Rockford Fosgate at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being under rated, easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

1. 1 Year Warranty
2. CEA-2006 Compliant & CE Compliant
3. Class-D Topology
4. Cast aluminum heat sink
5. Features C.L.E.A.N. Set-up
6. Balanced Differential Inputs with RCA Pass Through Outputs
7. High Level Input Capable
8. Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
9. Variable Input Gain adjustment level
10. Continuously Variable On Board Punch EQ

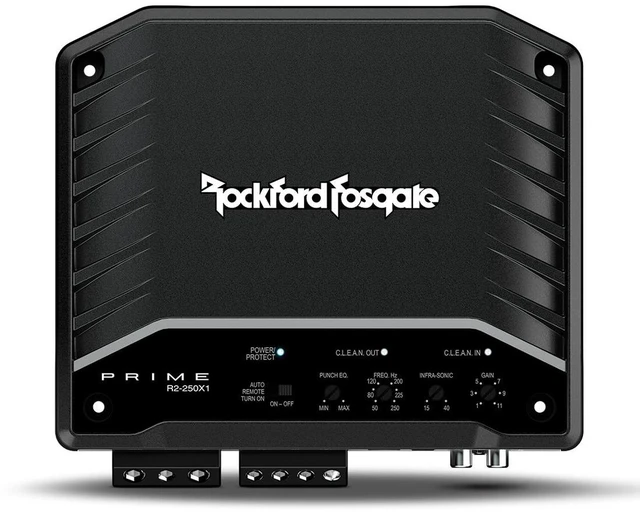

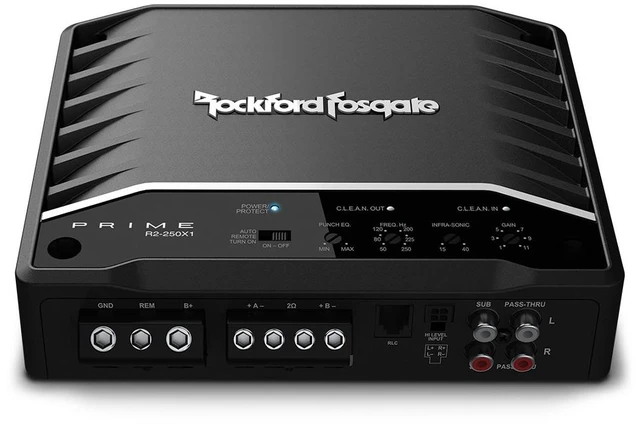

11. Top Mounted Control Panel
12. Short Circuit & Over Current Protection
13. Rollback Protection
14. Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

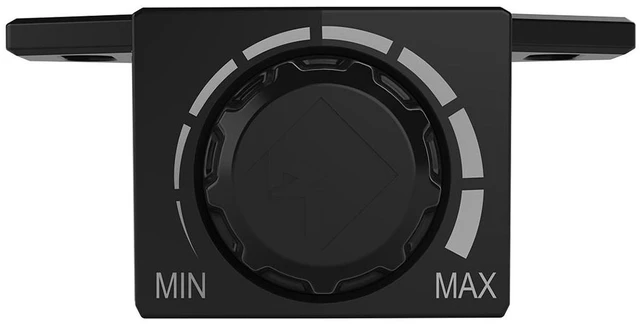

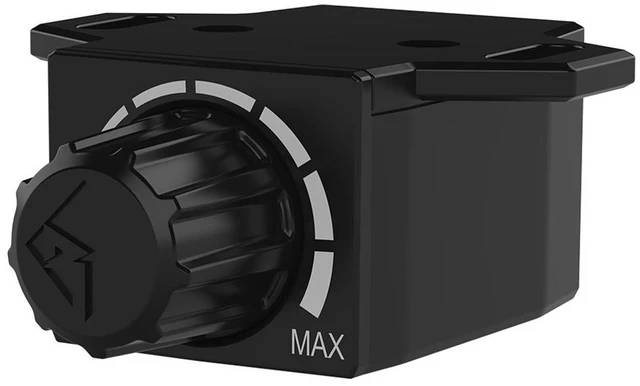

15. Includes RLC Remote Level Control
16. Variable Infrasonic Filter

Cta-2006 Compliant

Number of Channels

1

Total Power

(Sum of Rated Power)

250 Watts

Rated Power

(RMS Continuous Power)

150 Watts x 1 @ 4

250 Watts x 1 @ 2

Dynamic Power

(PVC/PowerCube®)

209 Watts x 1 @ 4

328 Watts x 1 @ 2

Bridgeable

No

Frequency Response

20 Hz - 250 Hz

Input Sensitivity

Low-Level: 150 mV - 4 V

High-Level: 450 mV - 12 V

Circuit Topology Class

Class-D

Efficiency (average)

Total Harmonic Distortion (THD+Noise)

4: <1.0%

2: <1.0%

Signal Input

Low-Level: 2 RCA

High-Level: 4-Pin Molex

Signal Output

Low-Level: 2 RCA

(Pass-Thru active with RCA or Hi-Level input)

Tone Controls

0 to +18 dB @ 45 Hz

Crossover Controls

Low-Pass:

50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic:

15 Hz - 40 Hz @ 12dB/Octave Butterworth

Remote Controls

Yes

Visual Indicators

POWER (Blue) / PROTECT (Red)

C.L.E.A.N. IN (Red)

C.L.E.A.N. OUT (Blue/Red)

Power Wire Gauge

4 AWG

Power Input Connector

Compression Terminal Block

Speaker Wire Gauge

8 AWG

Speaker Output Connector

Compression Terminal Block

Cooling

Convection

Heatsink

Operating Voltage

9 - 16 VDC

Recommended Fuse

(not included)

50 A

Average Current Draw (13.8V Music)

Max. Current Draw (13.8V Sinewave)

30 V

Suggested Alternator

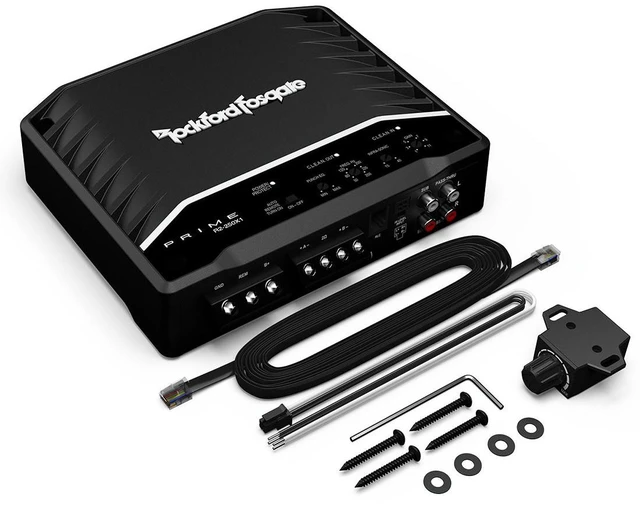

Included In The Box

Dimensions (H x W x D)

1.9" x 6.8" x 8.1"

(4.9 cm x 17.3 cm x 20.5 cm)
