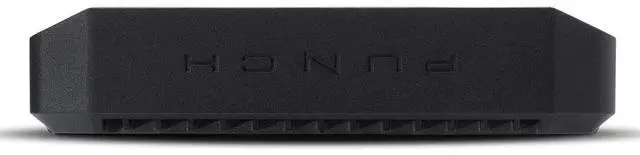

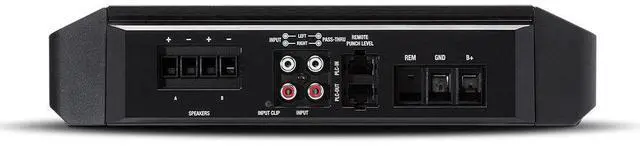

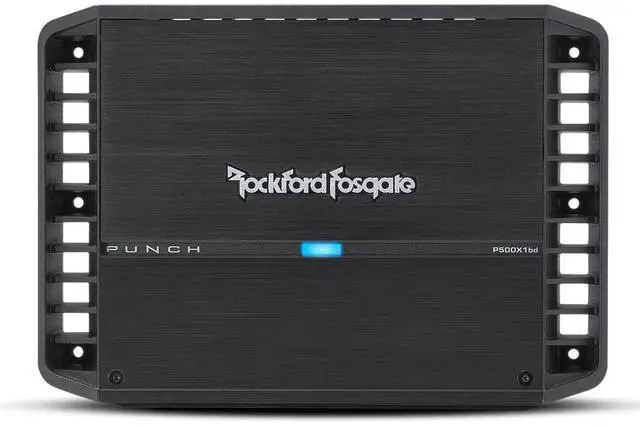

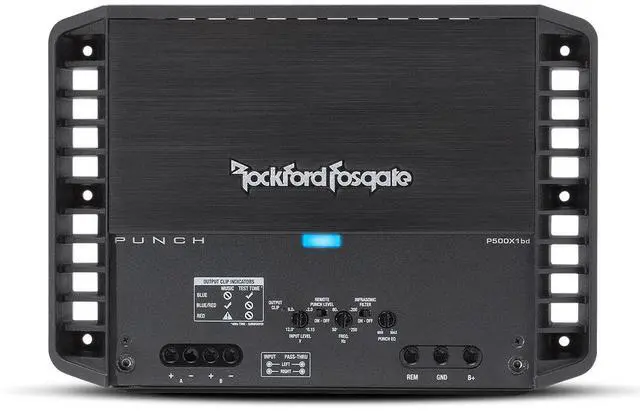

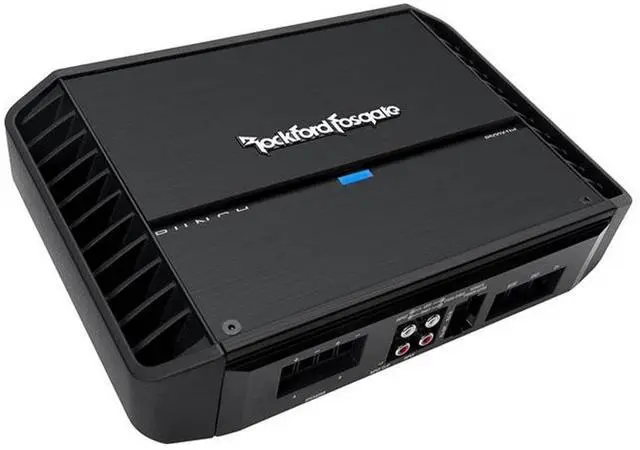

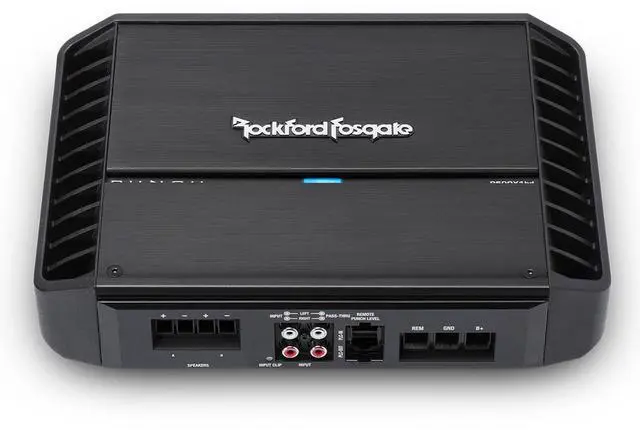

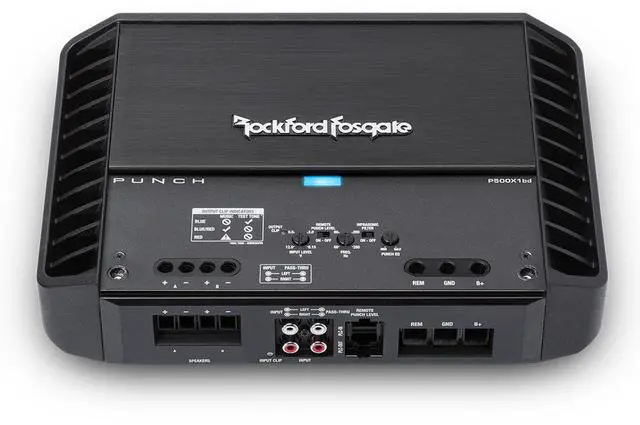

Rockford Fosgate P500X1BD Punch 500 Watt Mono Subwoofer Amplifier
- 150 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
- 500 watts RMS x 1 at 1 ohm
- Variable low-pass filter filter (50-250 Hz, 12 dB/octave)
- Selectable subsonic filter (28Hz, 12 dB/octave)
- Class-BD amplifier design
+
+
Overview
Specs
Reviews
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
- Features C. L. E. A. N. Set-up
- 12dB/octave Butterworth crossover
- RCA pass-thru outputs
- High level input capable with Auto Turn-On circuit
- Short circuit protection
- Over current protection
- Infrasonic filter
- Cast aluminum heatsink
- Stealth top mounted control panel
- Muted turn on
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 1 Year Warranty
- On-board Punch EQ with +18dB boost @ 45Hz
Number of Channels: 1
Circuit Topology Class: Class BD
Frequency Response: 20Hz to 250kHz +/- 1.0 dB
Total Power (Sum of Rated Power): 500 Watts
RMS: 150 Watts x 1 @ 4-Ohm / 300 Watts x 1 @ 2-Ohm / 500 Watts x 1 @ 1-Ohm
Dynamic Power: 224 Watts x 1 @ 4-Ohm / 410 Watts x 1 @ 2-Ohm / 787 Watts x 1 @ 1-Ohm
Crossover Controls: Low Pass, Infrasonic Filter
Dimensions (H x W x D): 2.38 x 7.76 x 11.03 (in) / 6.05 x 19.71 x 28.02 (cm)
- Features C. L. E. A. N. Set-up
- 12dB/octave Butterworth crossover
- RCA pass-thru outputs
- High level input capable with Auto Turn-On circuit
- Short circuit protection
- Over current protection
- Infrasonic filter
- Cast aluminum heatsink
- Stealth top mounted control panel
- Muted turn on
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 1 Year Warranty
- On-board Punch EQ with +18dB boost @ 45Hz
Number of Channels: 1
Circuit Topology Class: Class BD
Frequency Response: 20Hz to 250kHz +/- 1.0 dB
Total Power (Sum of Rated Power): 500 Watts
RMS: 150 Watts x 1 @ 4-Ohm / 300 Watts x 1 @ 2-Ohm / 500 Watts x 1 @ 1-Ohm
Dynamic Power: 224 Watts x 1 @ 4-Ohm / 410 Watts x 1 @ 2-Ohm / 787 Watts x 1 @ 1-Ohm
Crossover Controls: Low Pass, Infrasonic Filter
Dimensions (H x W x D): 2.38 x 7.76 x 11.03 (in) / 6.05 x 19.71 x 28.02 (cm)
