Cerwin Vega VCU85 VEGA Series 5-Channel Full Range Class D Amplifier (VCU85)

The Cerwin Vega VCU85 VEGA Series 5-channel Class D amplifier packs substantial power into a compact design. With flexible output configurations, clean signal performance, and a water-resistant conformal-coated PCB, it is built to support mids, highs, and subwoofer applications while fitting neatly into a wide range of car audio systems.

The VCU85 delivers up to 1900W of maximum power with multiple output configurations for different system designs. Whether you're powering speakers, a subwoofer, or both, its flexible channel options make it easier to build around your specific setup.

1. 150W x 4 + 350W x 1 @ 2 ohms
2. 80W x 4 + 200W x 1 @ 4 ohms
3. 300W x 2 bridged @ 4 ohms + 350W x 1
4. Up to 1900W maximum power output

Boosted RFI rejection and a powerful IR chipset help maintain clean audio output while reducing unwanted interference. With low total harmonic distortion and a strong signal-to-noise ratio, the VCU85 is designed to keep your music clear at higher output levels.

1. 0.05% THD
2. -101.1 dBA signal-to-noise ratio
3. Boosted RFI rejection
4. Powerful IR chipset

The VCU85 uses a water-resistant, conformal-coated 4-layer PCB for added protection against the elements. SMD technology and DirectFET MOSFET outputs also contribute to an efficient internal design while the matching heatsink platform helps manage operating temperatures.

1. Water-resistant conformal-coated 4-layer PCB
2. SMD technology
3. DirectFET MOSFET outputs
4. Matching heatsink platform

High- and low-level inputs supporting up to 12V make the VCU85 suitable for different audio system configurations. The Remote Turn-On Configurator provides REM, DC, and VOX options, while variable crossover controls give you additional control over your system's sound.

1. High-level and low-level inputs up to 12V
2. Remote Turn-On Configurator with REM/DC/VOX
3. Variable high-pass crossover
4. Variable low-pass crossover
5. Variable sub-sonic crossover

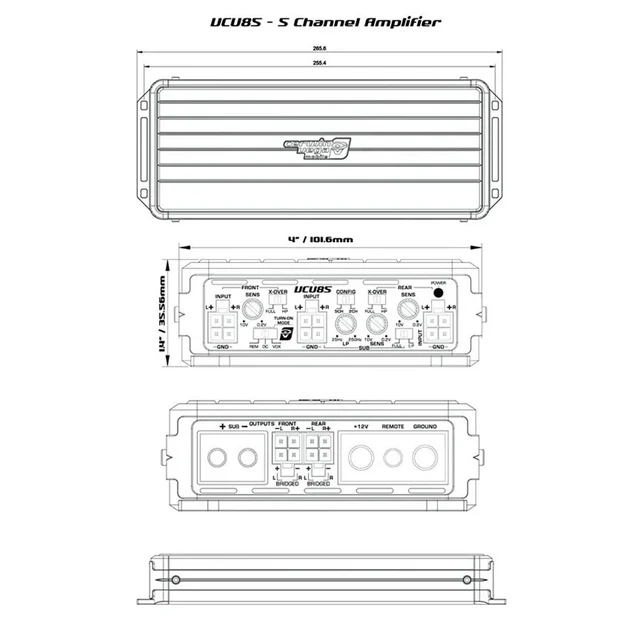

The VCU85 combines its five-channel output with a compact footprint measuring just 10.45" x 4.02" x 1.4". Its sleek design and matching heatsink platform provide a clean appearance while helping the amplifier fit into space-conscious installations.
