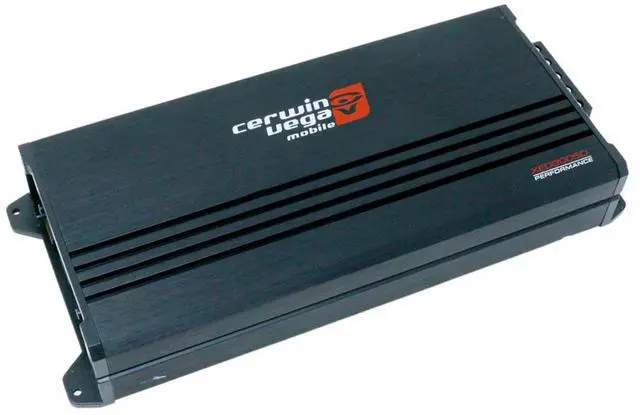

Cerwin Vega XED8005D XED Series Class-D 5-Channel Amplifier

Upgrade your vehicles audio system with the Cerwin-Vega XED8005D XED Series 5-Channel Class-D Amplifier, a powerful all-in-one amplifier designed to deliver dynamic sound performance, efficient power output, and exceptional reliability. Built using Cerwin-Vegas Xtreme Energy Design, this amplifier provides the perfect balance of power, clarity, and versatility for modern car audio systems.

The XED8005D 5-channel amplifier is engineered to power an entire audio system from a single compact unit. With dedicated channels for both speakers and a subwoofer, this amplifier allows you to drive your front and rear speakers while simultaneously powering a subwoofer for deep, impactful bass. This makes it an ideal solution for upgrading factory audio systems or building a powerful aftermarket sound setup.

Utilizing advanced Class-D amplifier technology, the XED8005D delivers high-efficiency performance that produces strong output while generating less heat compared to traditional amplifier designs. This efficient operation ensures consistent sound quality even during extended listening sessions, making it perfect for daily drivers and high-performance car audio builds.

The lightweight aluminum chassis not only gives the amplifier a sleek, modern appearance but also functions as an effective heat sink to help dissipate heat and maintain stable operating temperatures. Combined with premium internal components and precision engineering, the XED8005D offers long-term reliability and dependable performance.

Designed for enthusiasts who want powerful sound without sacrificing space, the Cerwin-Vega XED Series amplifier provides clean, distortion-free audio across the entire frequency range. From tight bass response to clear mids and crisp highs, the amplifier delivers the energy and clarity needed to bring your music to life.

Key Features:

5-channel full range Class-D car audio amplifier

All-in-one solution for speakers and subwoofer systems

High-efficiency Class-D technology for powerful output

Lightweight aluminum chassis for improved heat dissipation

Clean, distortion-free sound reproduction

Ideal for full-system car audio upgrades

Experience the power and precision of Cerwin-Vega XED Series amplifiers with the XED8005D, designed to unleash extreme energy and elevate your car audio system.

POWER RATING

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ

RMS POWER PER CHANNEL 4 65W X 4 & 200W X 1

RMS POWER PER CHANNEL 2 90W X 4 & 300W X 1

POWER SUPPLY

1. Power Supply: Full PWM
2. Power Supply Threshold: 10.0V-16.0V (DC)
3. Idle Current: (0.7A)

DISTORTION

1. THD 4 (100Hz @4): <0.1%
2. S/N Ratio (A weighted @1W): -85dBA
3. S/N Ratio (A weighted @FP): -101.1dBA

INPUT SENSITIVITY

1. Low Input Level: 500mV-12V
2. High Input Level:

INPUT IMPEDANCE

1. Low Input Level: 20 K
2. High Input Level: 100

OUTPUT STAGE

1. Output Impedance: 2
2. Damping Factor (50Hz @ 4): >70
3. Bandwidth (-3dB): 10Hz-30KHz/10Hz-250Hz

CROSSOVER (-12dB/Oct)

1. Variable High-Pass: 35Hz-250Hz
2. Variable Low-Pass: 35Hz-250Hz
3. Variable Sub-Sonic:

FUSE RATINGS

1. ATC: 25A x 2 (Inside)

DIMENSIONS

1. L x W x H: 10.3x 4.7x 1.8 (260mm x 120mm x 46.5mm)

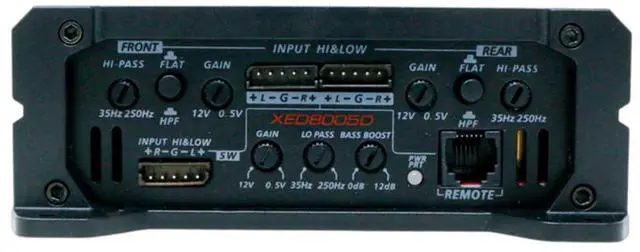

FEATURES

1. Selectable X-Over Front & Rear: Flat/High Pass
2. Bass Boost: 0dB-12dB
3. LED Power/Protect Light Indicator
4. Bass Control Included
5. MFR #: XED8005D
