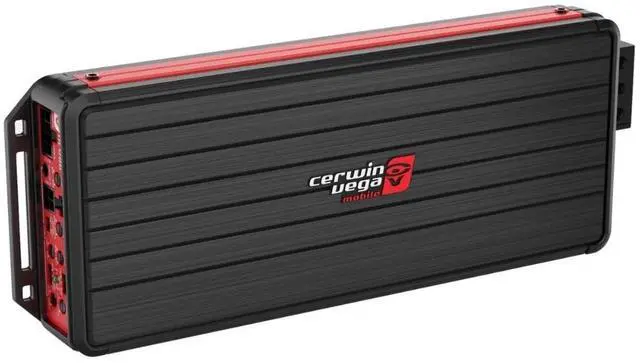

Cerwin Vega VCU82 VEGA Series 2-Channel Full Range Class D Amplifier

Upgrade your car audio system with the Cerwin-Vega VCU82 VEGA Series 2-Channel Full Range Class-D Amplifier, engineered to deliver powerful performance, high efficiency, and exceptional sound clarity in a compact design. As part of the trusted Cerwin-Vega VEGA Series, the VCU82 amplifier combines advanced technology with rugged durability, making it a reliable solution for powering speakers or smaller subwoofer systems.

The VCU82 2-channel amplifier utilizes an updated high-efficiency full-range Class-D digital topology, allowing it to produce strong output while minimizing heat and power consumption. This advanced design ensures maximum performance and improved efficiency, delivering clear and dynamic sound across the entire frequency range.

At the heart of the amplifier is an enhanced Power IR digital chipset, designed to provide superior signal control and stability. This technology helps the amplifier maintain consistent output even under demanding conditions, allowing your speakers to perform with precision and clarity.

Built for long-lasting reliability, the Cerwin-Vega VCU82 amplifier features a conformal-coated 4-layer PCB, which protects internal components from moisture, dust, and environmental wear. This protective design ensures dependable operation and helps extend the lifespan of the amplifier in everyday driving environments.

The VCU82 also offers excellent installation flexibility. It supports both high-level and low-level inputs up to 12 volts, allowing easy integration with factory head units or aftermarket audio systems. The Remote Turn-On Configurator offers multiple activation options including REM, DC offset, and VOX signal sensing, making installation simple in a wide range of vehicles.

To ensure clean audio performance, the amplifier includes enhanced RFI rejection technology, reducing interference and delivering clear sound reproduction.

Key Features:

2-channel full range Class-D amplifier

High-efficiency digital topology for powerful output

Enhanced Power IR digital chipset for precision and stability

Conformal-coated 4-layer PCB for durability

Hi and low-level inputs up to 12V for system compatibility

Multiple turn-on options: REM, DC offset, and VOX

The Cerwin-Vega VCU82 VEGA Series amplifier delivers compact design, powerful performance, and reliable operation, making it an excellent choice for drivers looking to upgrade their car audio system with clean, high-quality sound.

POWER RATING

FREQUENCY RESPONSE (HZ): 40HZ - 400HZ

RMS POWER PER CHANNEL 4 150W X 2

RMS POWER PER CHANNEL 2 250W X 2

RMS POWER PER 2 CHANNELS BRIDGED 4 500W X 1

POWER SUPPLY

1. Power Supply: Full PWM
2. Power Supply Threshold: 10.0V-17.0V (DC)
3. Idle Current: (0.7A)

DISTORTION

1. THD 4 (1KHz @4): 0.05%
2. S/N Ratio (A weighted @1W): -85 dBA
3. S/N Ratio (A weighted @FP): -101.1 dBA

INPUT SENSITIVITY

1. Low Input Level: 200mV-10.0V
2. High Input Level: 200mV-10.0V

INPUT IMPEDANCE

1. Low Input Level: 20 K
2. High Input Level: 20 K

OUTPUT STAGE

1. Output Impedance: 0.0297
2. Damping Factor (50Hz @ 4): >250
3. Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12/-24 dB/Oct)

1. Variable High-Pass: 40Hz-400Hz
2. Variable Low-Pass: 40Hz-400Hz
3. Variable Sub-Sonic:

FUSE RATINGS

1. ATC: 25A

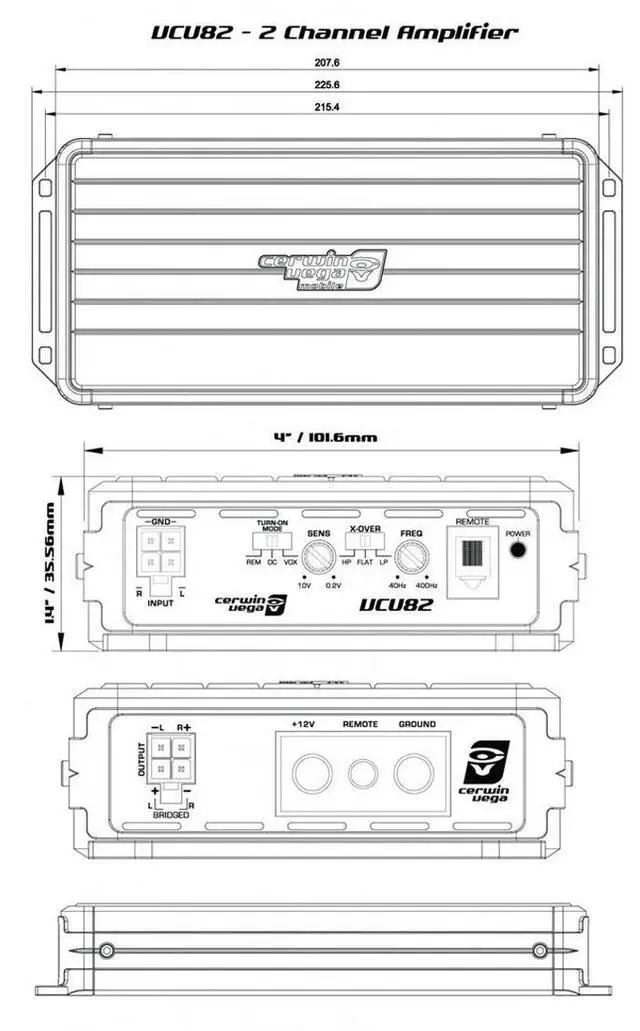

DIMENSIONS

1. L x W x H: 7.7x 4.02x 1.4 (195.6mm x 102mm x 36mm)

FEATURES

1. Full Range Class D IR Chipset
2. DirectFET Power Mosfet Output Stage
3. SMD Technology on 4-Layer PCB Board
4. Water Resistant Conformal PCB Board Coating
5. 1-year Manufacturer's Warranty
6. MFR #: VCU82
7. Marine Grade Certified
8. RMS Power Handling:
9. 300W x 2 @ 2 Ohms
10. 200W x 2 @ 4 Ohms
11. Bridged: 600W x 1 @ 4 Ohms
12. High-Power Full-Range Digital Class D Advanced Technology IR Chipset
13. Surface Mount Component Technology
14. Conformal-Coated IPX Certified 4-Layer Black PCB
15. Remote REM/DC/VOX Turn On Trigger
16. Variable/Switchable Crossovers On Multi-Channel Models
17. Uniform Heatsink Chassis Size/Dimensions
18. Compact Universal All-Weather Application
19. Remote Level Control Included
