800W RMS 1 Channel Amplifier Monoblock Amp 1 Ohm XED Series XED8001D Cerwin Vega

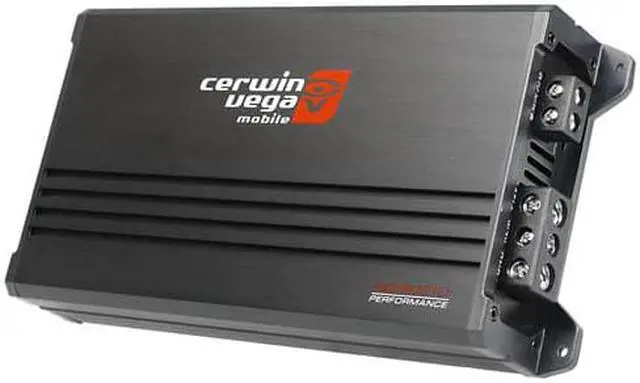

Cerwin Vega 1 Channel Monoblock Amplifier XED Series XED8001D

The Cerwin Vega XED8001D 1 Channel Amplifier is the perfect addition for anyone looking for amazing power in a compact design. The XED8001D features the latest high-efficiency digital Class D topology. This amp offers 800 Watts max in a compact design, giving you all the power you need without wasting space. And to top it all off, the XED8001D features an ambient backlit logo to be the perfect visual accent to your vehicle's audio system.

Features

Latest High-Efficiency Class D Topology
Compact Size with Ambient backlit logo
RCA Pass Thru output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 Stable Stereo and 4 Mono (CH3/4) for 3 Ch mode
Proprietary Vega Bass Boost EQ Up To 12dB
MAX Power Rating 1100W MAX
RMS Power (2) 1 x 800 W
RMS Power (4) 1 x 450 W
Types Class D
Power Supply Full PWM
Power Supply (Threshold) 10.0DVC 16.0DVC
Idle Current ( 0.7A )
Distortion - THD (1KHz@4) <0.1%
Distortion - S/N Ratio (A weight @ 1W) -85dBA
Distortion - S/N Ratio (A weight @ FP) - 101.1 dBA
Input Sensitivity - Hi/Low Input Level 1.1V ~> 20.0V / 250mV 6.0V
Input Impedance - Low Input Level 20 K
Input Impedance - High Input Level 100 K
Output Impedance 2
Damping Factor (50Hz@4) >70
Bandwidth (-3dB) 10Hz-250Hz
Crossover (-12 dB/ Oct) Variable High-Pass N/A
Crossover (-12 dB/ Oct) Variable Low-Pass 35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic 10Hz-50Hz
FUSE Ratings - ATC 2 x 35A
Dimension - Length x Width x Height - Inches (mm) 8.7 x 4.7 x 1.8 (220 x 120 x 46.5 )
