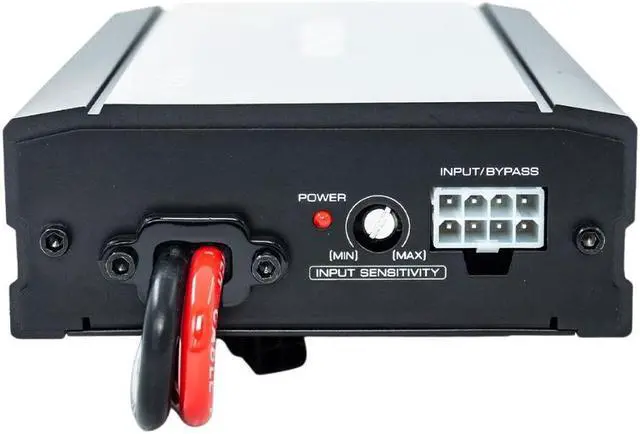

The XM160-2 comes with power, speaker, and input wiring harnesses, as well as mounting plates, all customized to fit in your particular Harley, making installation both straight-forward and pleasantly uncomplicated. The amp uses speaker-level inputs pre-matched and balanced for Harley-Davidson factory radios and almost any other aftermarket receiver or source unit. An input sensitivity control fine-tunes the level for minimum distortion. There are no onboard tone, EQ, or crossover controls on this amp your system's head unit will take care of that kind of signal processing. This amp's one job is to produce power and you'll know it when you hear your music playing loud and clear as you roll down the road.
Product highlights:

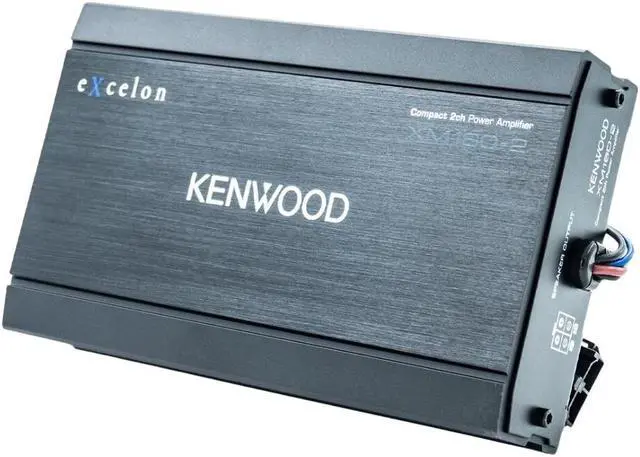

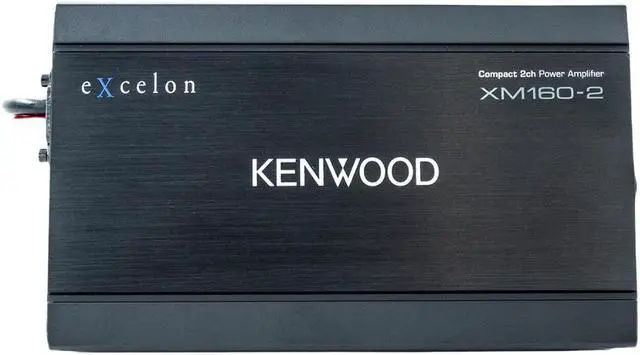

2-channel motorcycle amplifier
80 watts RMS x 2 at 2 ohms
Class D amp technology
designed for select 2014-up Harley-Davidson motorcycles
mounting plates for Road Glide, Street Glide, and Ultra model Harleys included

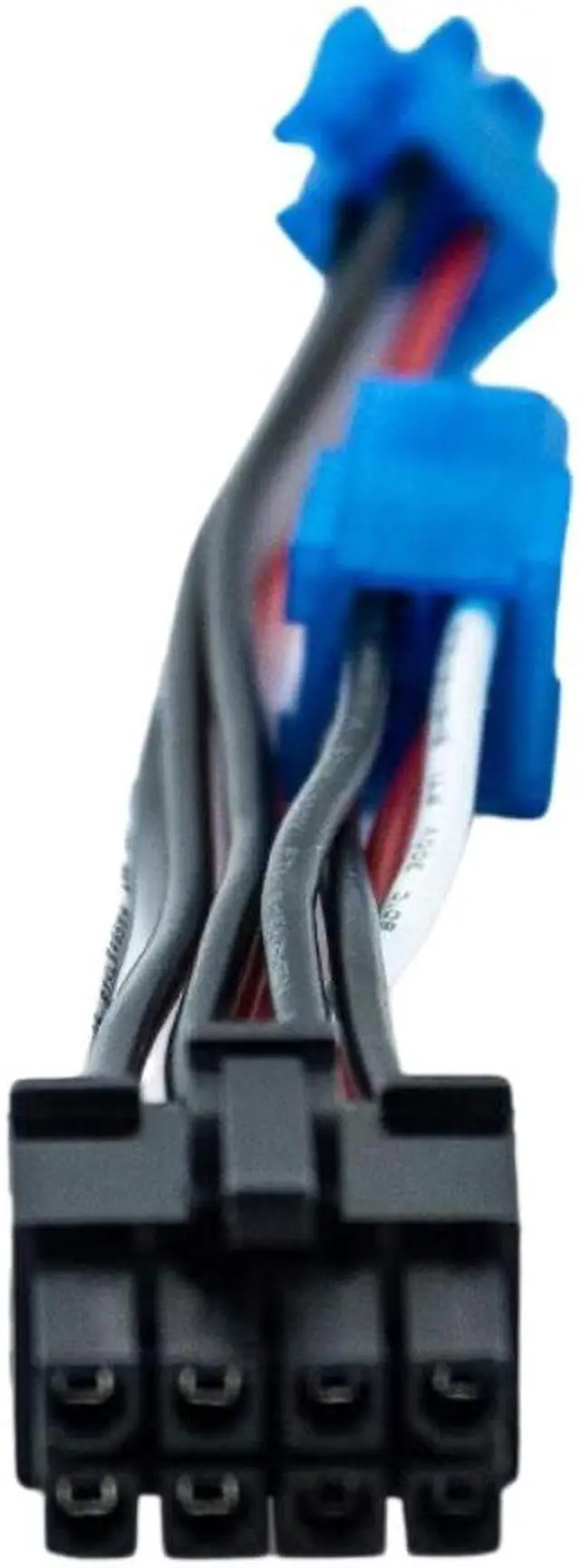

power, speaker, and input wiring harnesses included
speaker-level inputs compatible with factory radios and aftermarket receivers
Bypass Port provides signal for system expansion
fuse rating: 15A x 1
dimensions: 8.1"W x 1.62"H x 4.08"D
MFR # XM160-2

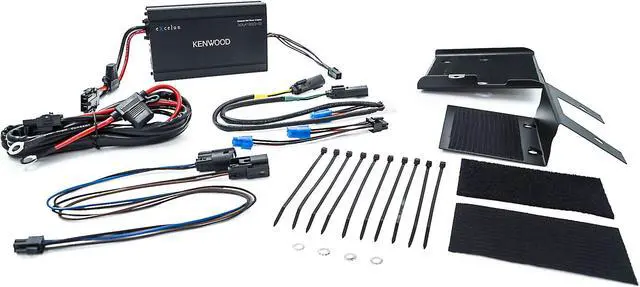

What's in the box:

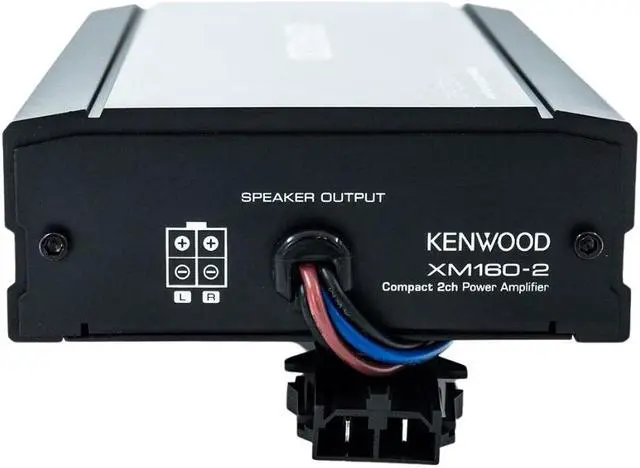

2-Channel amplifier with attached 6" speaker and 8" power/ground harnesses (inline 15A ATO fuse)
Street Glide mounting plate (attached to amplifier)
Road Glide mounting plate

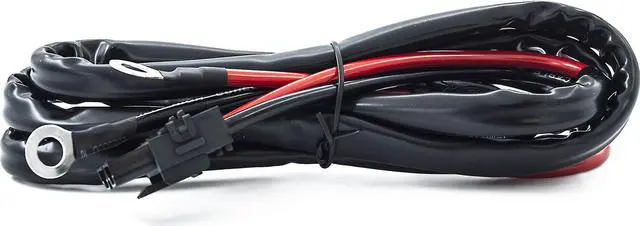

5' Power & ground harness with inline 15A ATO fuse

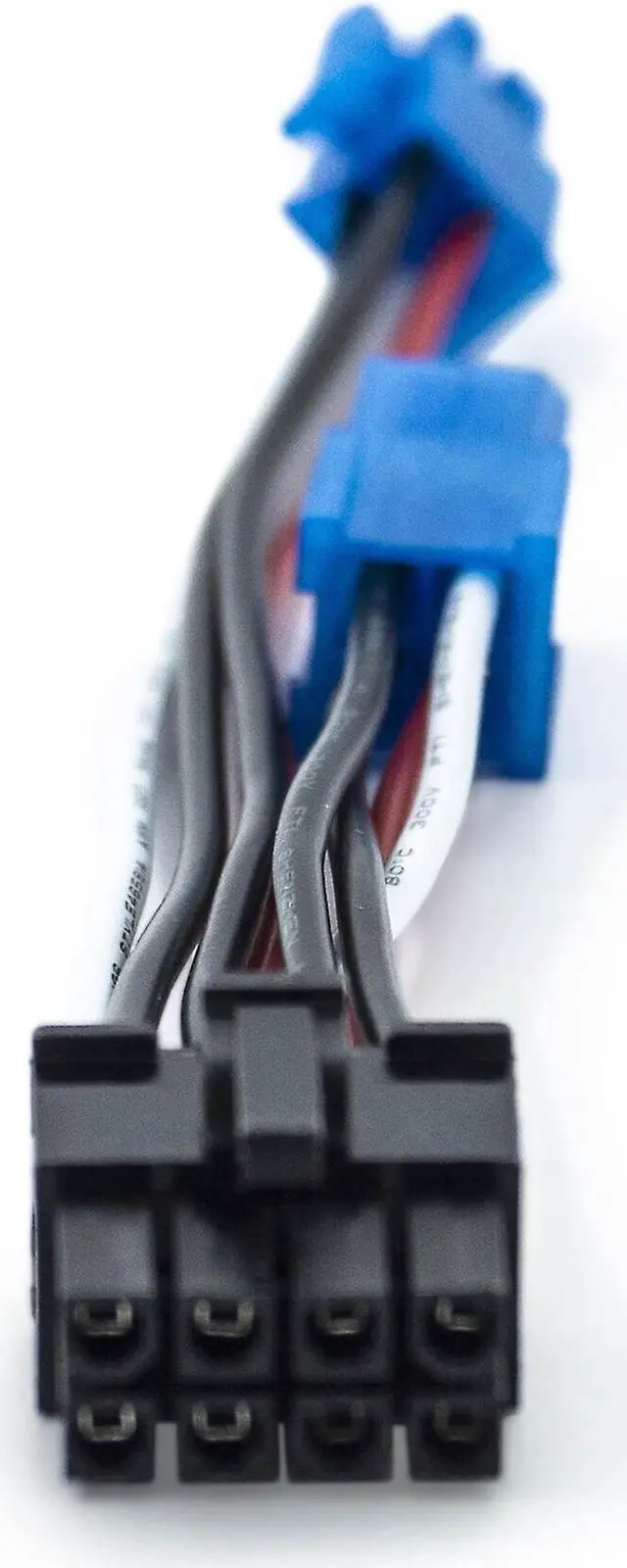

17" Input/Bypass harness
21" Front output harness
6" Input Link harness
Ten 6" wire ties
4 Star washers
Instruction manual
