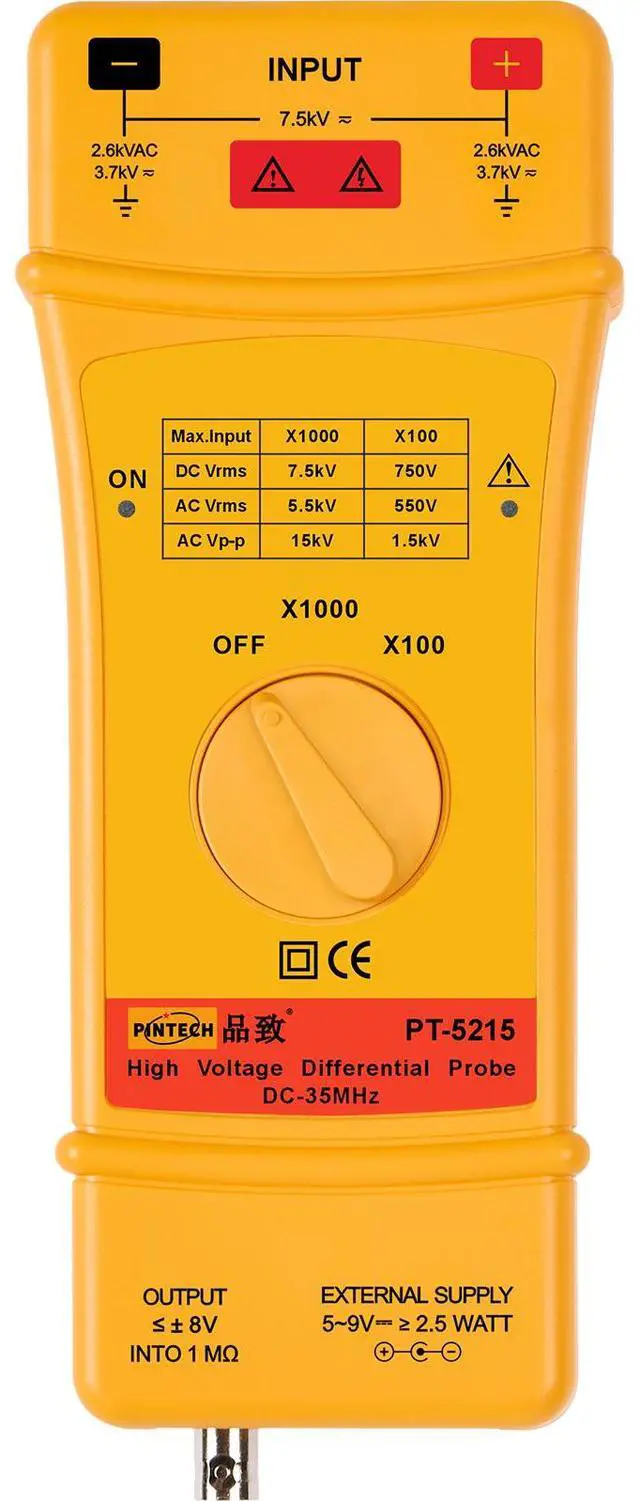

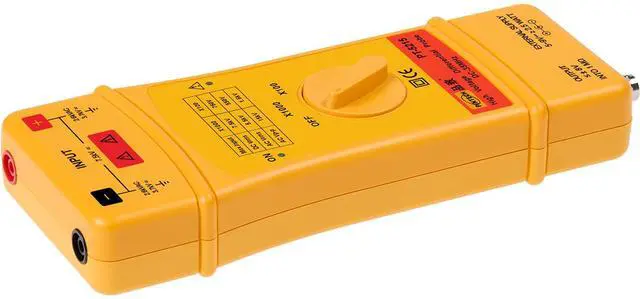

PINTECH High Voltage Differential Probe kit 15kV, 35MHz, 100X/1000X Attenuation Rate, Active Differential Probe for Oscilloscope PT-5215
- Maximum differential test voltage : 15kVp-p. You can test safely high voltage signals.
- DC-35MHz. Accuracy (Typical):±2%, Attenuation Ratio: 100X/1000X.
- Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.
- Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

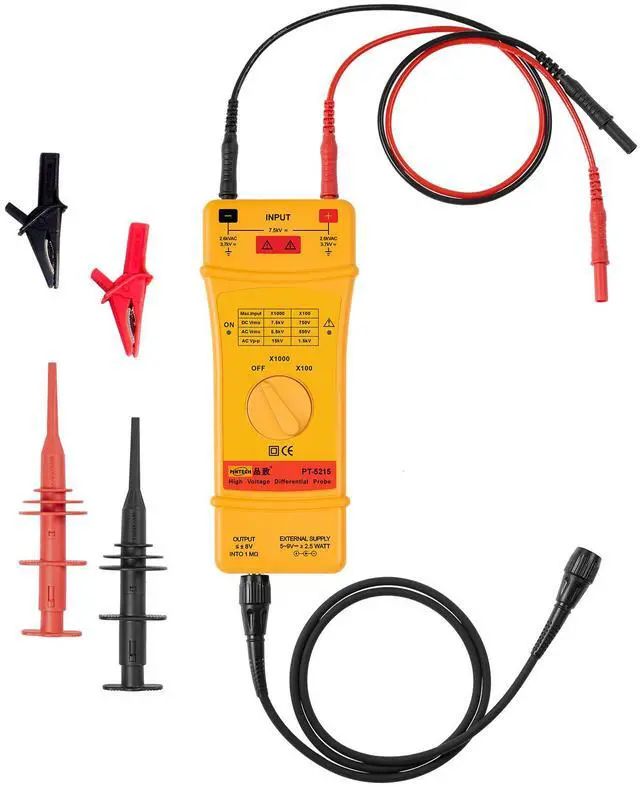

- Package Included: PT-5215 differential probe x 1, Adapter x 1, Probe Hook x 2, Alligator Clip x 2, BNC cable x 1, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews

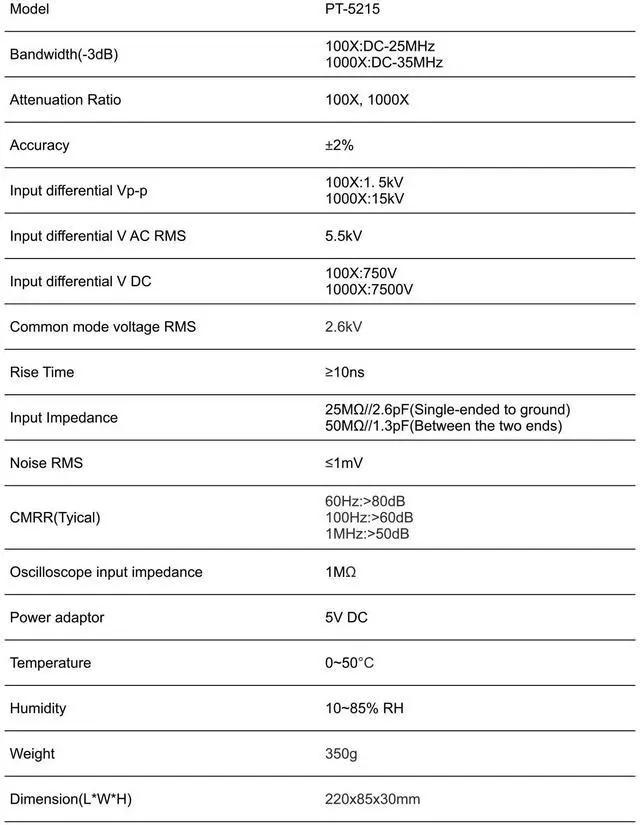

MODEL: PT-5215
Bandwidth (-3dB): DC-35MHz(x1000), DC-25MHz(x100)
Testing Voltage(Vp-p): 1.5kV@1/100, 15kV@1/1000
Input DC Voltage: 750V@1/100, 7.5kV@1/1000
Attenuation Rate: 100X/1000X
Rising Time: 10ns
Accuracy: ±2%
Common-mode voltage RMS: 2.6kV
Noise: 1mV rms
Input Impedance: Between the two ends: 50M//1.3pF, Single-ended to ground: 25M//2.6pF
CMRR: 60Hz:>80dB; 100Hz:>60dB; 1MHz:>50dB
Oscilloscope Input Impedance: 1M
Weight: 350g/0.77lb
Dimension(LxWxH): 220x85x30 mm
