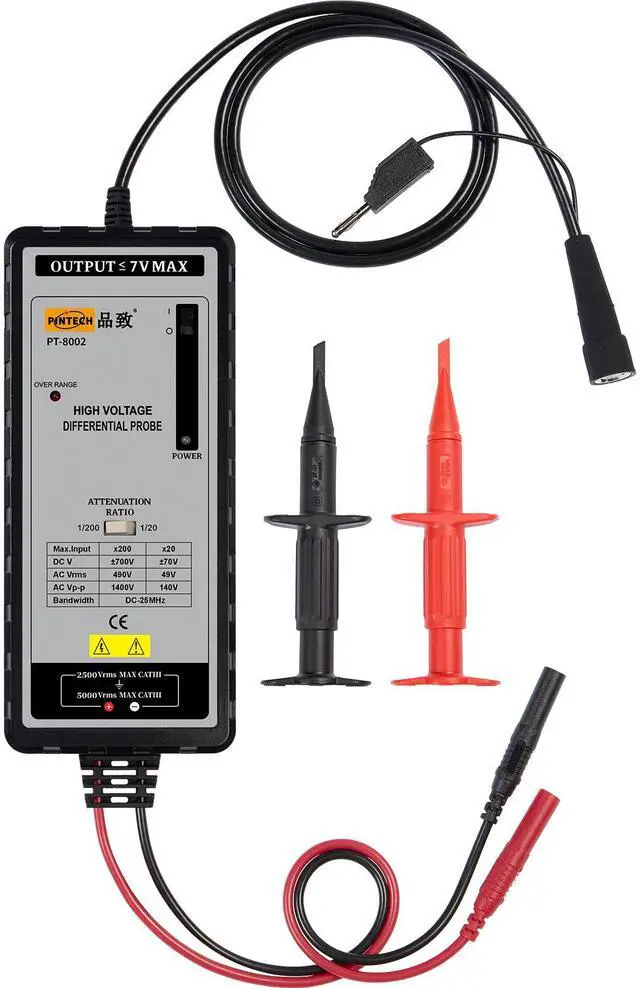

PINTECH Oscilloscope Differential Probe 1400V, 25MHz, 20X/200X Attenuation Rate Oscilloscope Probe with BNC Interface, PT-8002
- Rise Time: 14ns. This differential probe measures signals with very fast rise times.
- DC-25MHz, Accuracy (Typical):±2%, Attenuation Ratio: 20X/200X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
- Package Included: PT-8002 differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews

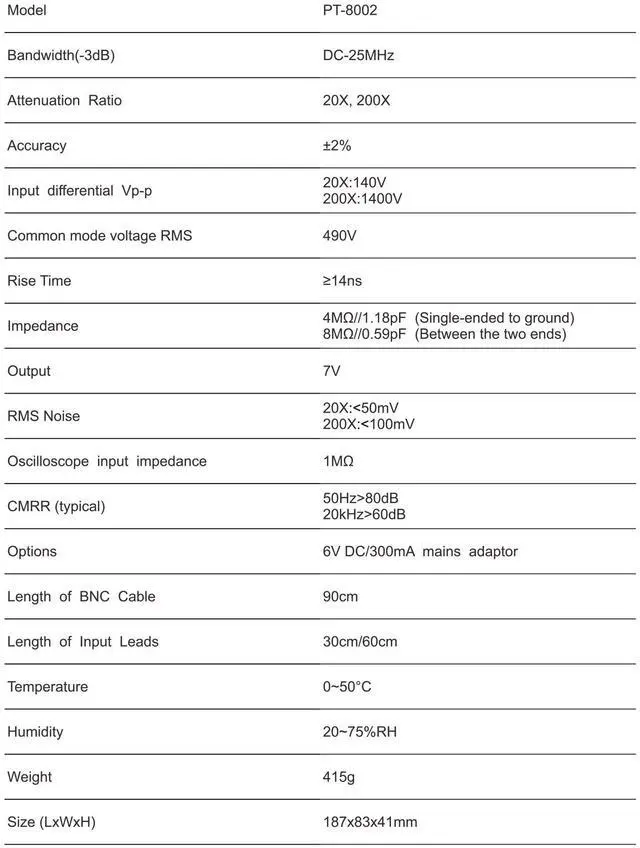

MODEL: PT-8002
Bandwidth (-3dB): DC-25MHz
Input Impedance: Between the two ends: 8M//0.59pF , Single-ended to ground: 4M//1.18pF
Attenuation Rate: 20X/200X
Rising Time: 14ns
Output (into 50K load): 7V
Accuracy: ±2%
-Offset(typical): <±5mV
Oscilloscope Input Impedance: 1M
CMRR: 50Hz:>80dB;20kHz:>60dB
Input Voltage(Vp-p): 20X:140V; 200X:1400V
Input DC Voltage: 20X:70V; 200X:700V
Common-mode Voltage (RMS):490V
RMS Value: 490V
Noise RMS: 20X:<50mV; 200X:<100mV
Weight: 400g/0.88lb
Dimension(LxWxH): 186x84x38 mm
