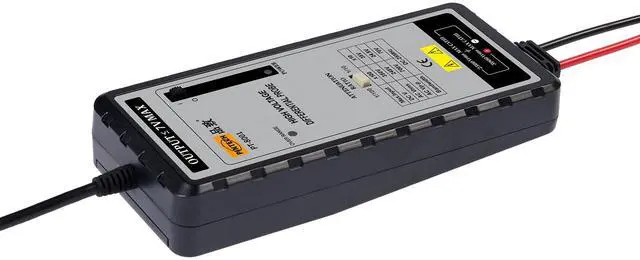

PINTECH Oscilloscope Differential Probe 700V, 25MHz, 10X/100X Attenuation Rate Oscilloscope Probe with BNC Interface, PT-8001
- Rise Time: 14ns. This differential probe measures signals with very fast rise times.
- DC-25MHz, Accuracy (Typical):±2%, Attenuation Ratio: 10X/100X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

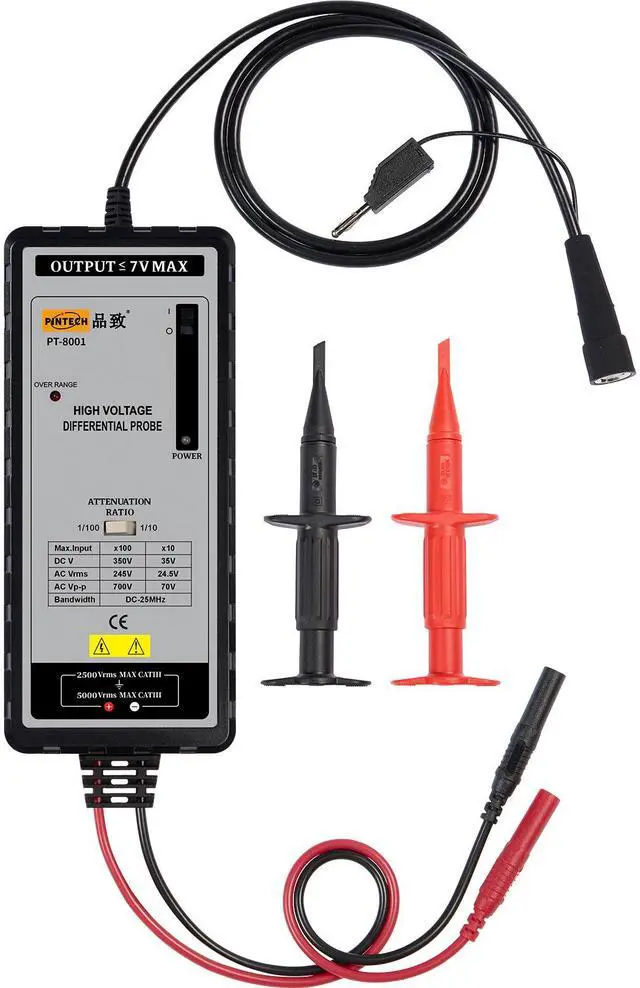

- Package Included: PT-8001 differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews

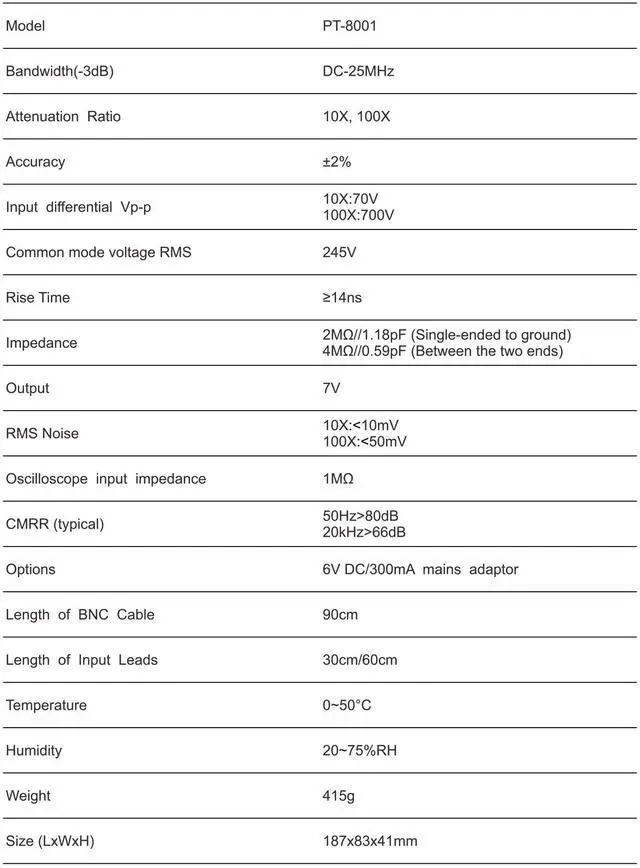

MODEL: PT-8001
Bandwidth (-3dB): DC-25MHz
Input Impedance: Between the two ends: 4M//0.59pF, Single-ended to ground: 2M//1.18pF
Attenuation Rate: 10X/100X
Rising Time: 14ns
Output (into 50K load): 7V
Accuracy: ±2%
-Offset(typical): <±5mV
Oscilloscope Input Impedance: 1M
CMRR: 50Hz:>80dB;20kHz:>66dB
Testing Voltage: 10X: 70V; 100X: 700V
Input DC Voltage: 10X: 35V; 100X:350V
Common-mode Voltage (RMS): 245V
RMS Value: 245V
Noise RMS: 10X: <10mV; 100X: <50mV
Weight: 400g/0.88lb
Dimension(LxWxH): 186x84x38 mm
