Package List
- 1 x Probe
- 2 x Probe Hook
- 1 x Adapter
- 1 x User Manual
Your Browsing History
Meet Your Seller

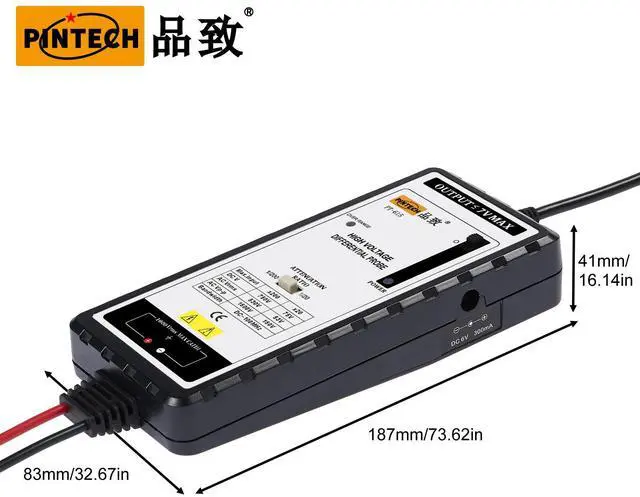

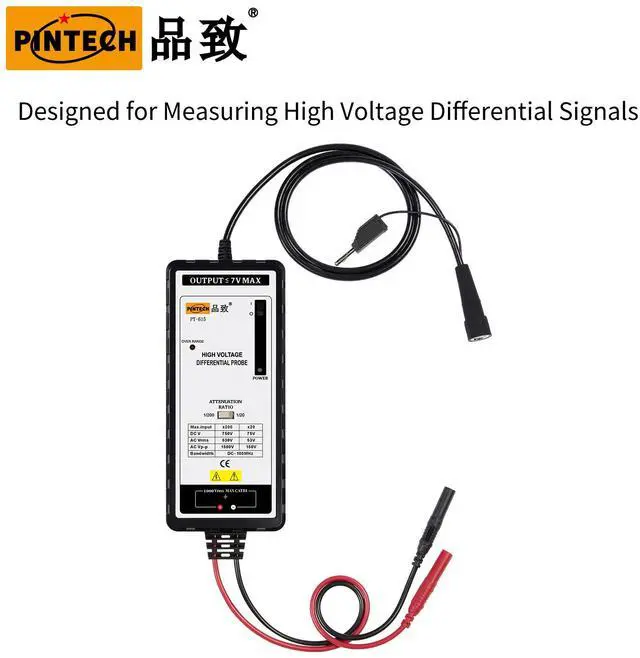

PINTECH Oscilloscope Probe 1500V, 100MHz High Voltage Differential Probe kit 3.5ns Rise Time 20X/200X Attenuation Rate, PT-615

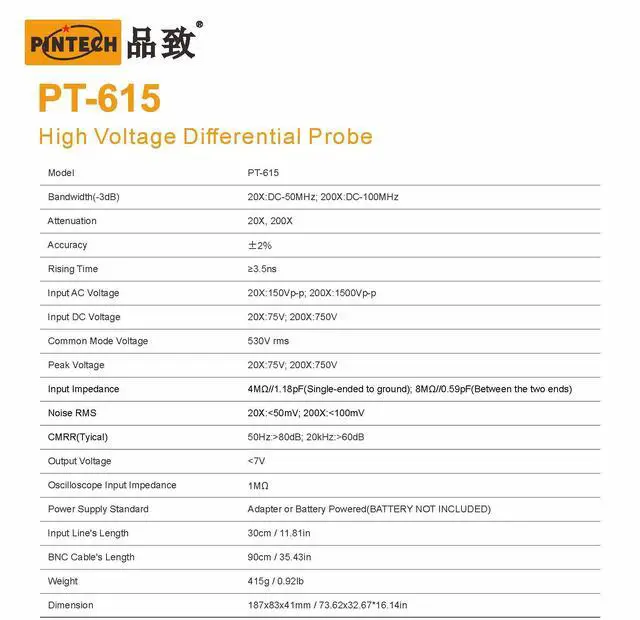

- Rise Time: 3.5ns. This differential probe measures signals with very fast rise times.
- DC-100MHz. Accuracy (Typical):±2%, Attenuation Ratio: 20X/200X.

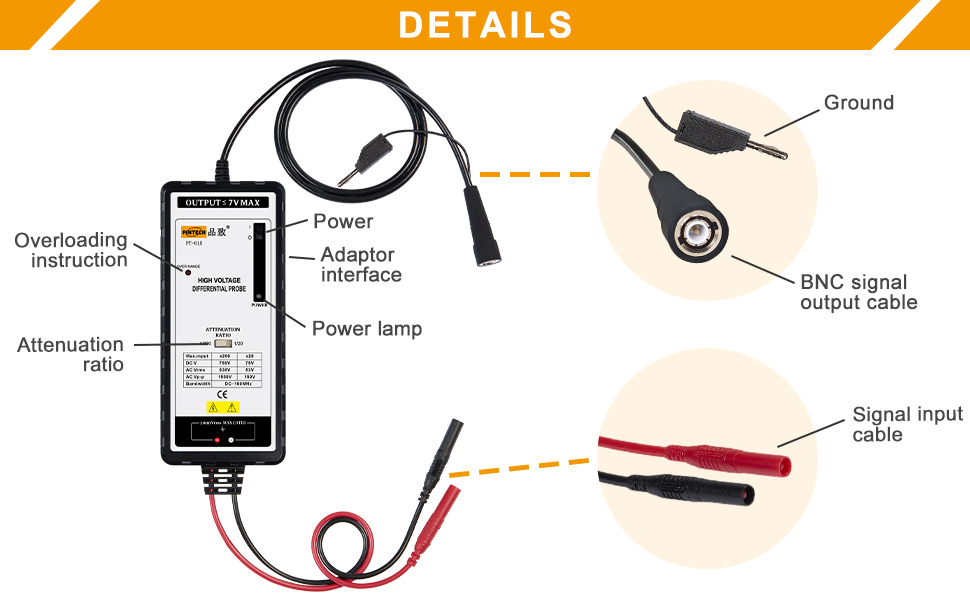

- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.

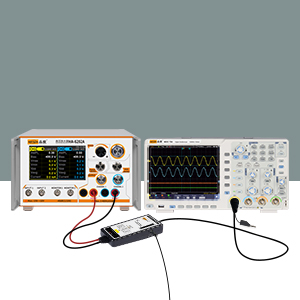

- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

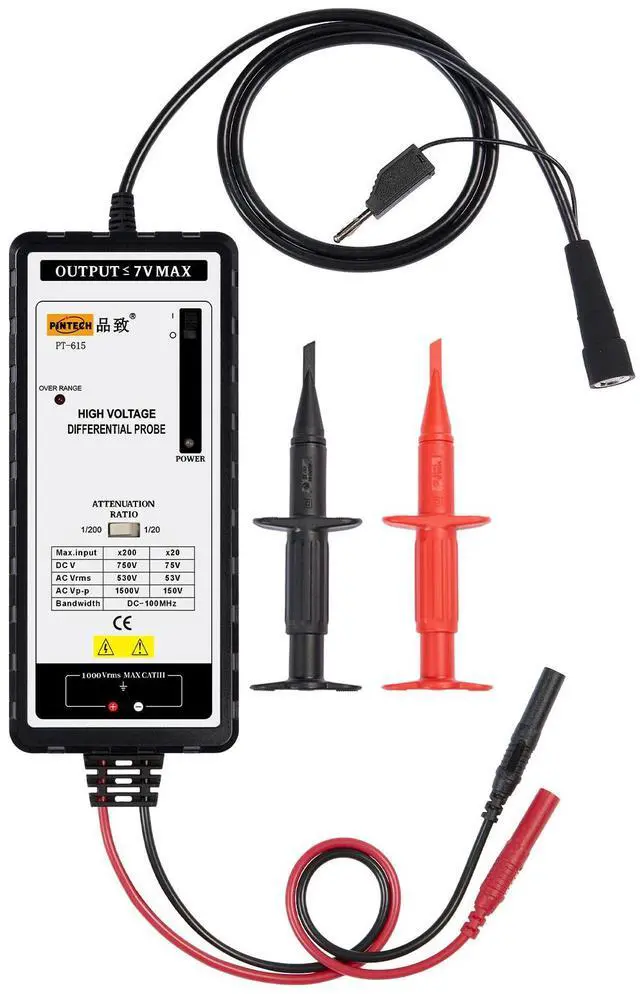

- Package Included: PT-615 differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
