FNB18 USB Color Screen Tester DC Digital Voltmeter Amperemeter Current Voltage Meter Amp Volt Ammeter Detector
- Features:

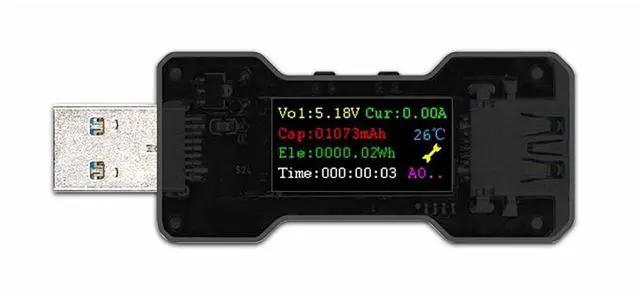

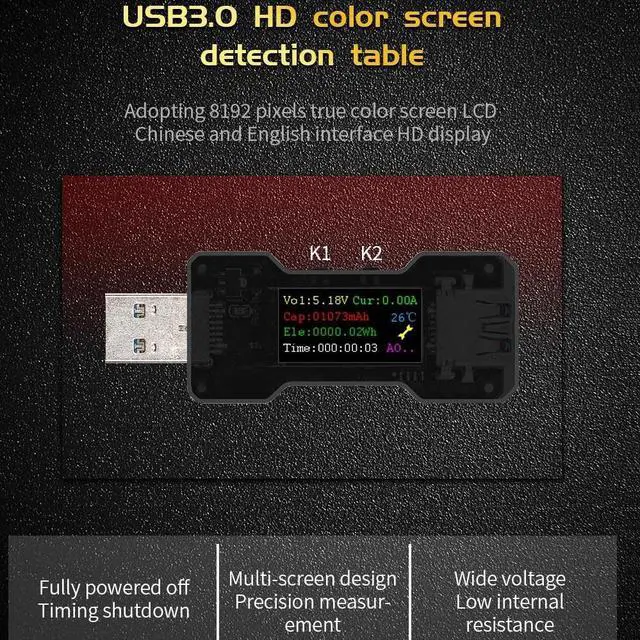

- Adopting 8192 pixels true color screen LCD HD display.
- Fully powered off, timing shutdown, multi-screen design, precise measurement, wide voltage, low internal resistance.

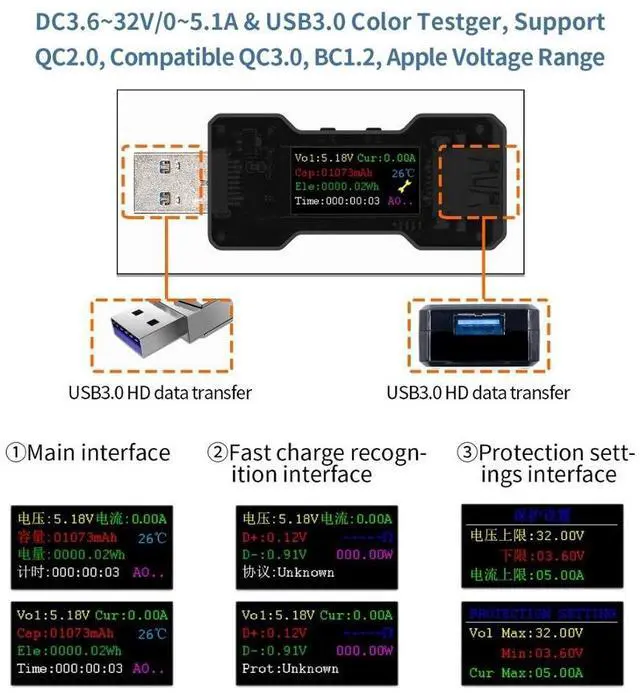

- You can switch between different test content interfaces by short pressing the multi-function button.
+
+
Overview
Specs
Reviews
Specifications:
Material: ABS
Color: black
Measurement ranges (and resolution accuracy):
Voltage: 3.60-32.0V (0.01V)
Current: 0.00-5.00A (0.01A)
Capacity accumulation: 0–99999mAh (0.001Ah)
Power accumulation: 0–9999.99Wh (0.01Wh)
Power calculation: 0.00-160.00W (0.01W)
Impedance: 0.0- 6000.0o (0.1o)
Temperature: 0-100c (1c)
Timing time: 999H59M59S (1S)
USB D+ voltage: 0-3.30V (0.01V)
USB D- voltage: 0-3.30V (0.01V)
Input interface: USB
Output interface: USB
Timed charge reminder settings: 24-hour countdown
Full charge threshold parameters:
Refresh time: 500mS / time
Measurement rate: about 0.5 time / S
Alarm mode: siren sound
Display type: micro-power LCD module LCM white font
Current consumption:
Operating temperature: -10 to +60c
Working humidity: 10 to 80 (no frost)
Work pressure: 80-106Kpa
Item size: 76 30.5 15.6mm / 3.0 1.2 0.6in
Package size: 85 40 20mm / 3.3 1.6 0.8in
Package weight: 23.35g / 0.8ounce
Material: ABS
Color: black
Measurement ranges (and resolution accuracy):
Voltage: 3.60-32.0V (0.01V)
Current: 0.00-5.00A (0.01A)
Capacity accumulation: 0–99999mAh (0.001Ah)
Power accumulation: 0–9999.99Wh (0.01Wh)
Power calculation: 0.00-160.00W (0.01W)
Impedance: 0.0- 6000.0o (0.1o)
Temperature: 0-100c (1c)
Timing time: 999H59M59S (1S)
USB D+ voltage: 0-3.30V (0.01V)
USB D- voltage: 0-3.30V (0.01V)
Input interface: USB
Output interface: USB
Timed charge reminder settings: 24-hour countdown
Full charge threshold parameters:
Refresh time: 500mS / time
Measurement rate: about 0.5 time / S
Alarm mode: siren sound
Display type: micro-power LCD module LCM white font
Current consumption:
Operating temperature: -10 to +60c
Working humidity: 10 to 80 (no frost)
Work pressure: 80-106Kpa
Item size: 76 30.5 15.6mm / 3.0 1.2 0.6in
Package size: 85 40 20mm / 3.3 1.6 0.8in
Package weight: 23.35g / 0.8ounce
