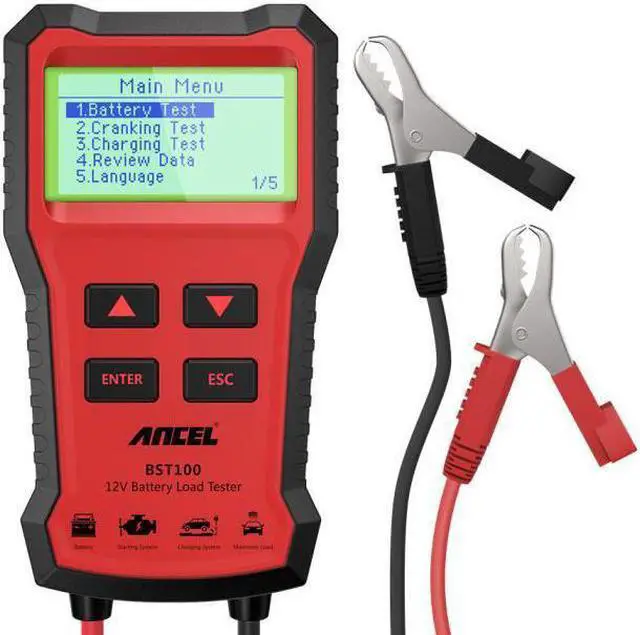

ANCEL BST100 12V Car Battery Tester
Ancel BST100 battery tester is used for testing the conditions of the 12V lead-acid starting battery: cranking system and charging system. It comes with a large backlight LCD screen and it supports classic touch-tone to help you read and operate more efficiently. It utilizes the 4-wire Kelvin method to complete the collection of a series of complicated data for calculating every testing data with a build-in precise circuit and improved digital processor. Moreover, some circuit improvements including polar reversal protection, over-voltage input protection, and loose lead detection, ensure safety and convenience during testing.
Features:
1. Fast and smooth running speed with STM-32 chip set hardware
2. Accurate test results, using high precision amplifier and calibrated by professional battery testing tool. BST100 reading accuracy up to 99%.
3. Wide testing range cover from CCA 100- 2000, 3- 220 AH, best in the market.
4. Industry initiative graphical battery voltage real time monitoring, can analyze battery data more accurately.
5. Unique battery results display in percentage and meter mode.
6. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
7. Polarity reverse connection protection. Reverse connection will not damage the tester or affect the vehicle and battery.
8. Directly test the battery with loss of electricity, no need to full charge before testing.
9. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
10. BST100 is used to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL EPB cell
Ancel BST100 battery tester is used for lead-acid starting battery, along with checking the following conditions of the battery, starting up, charging, and loading. With great design, easy operation, precise reading, complete functions, this tester supply the readings by a large LCD and hints by sound and light when testing. It utillizes 4-wire kelvin method to complete collection of a series of complicated data for calculating every testing data with build-in precise circuit and improved digital processor. moreover some circuit improvements including polar reversal protection, over voltage input protection, loose lead detection, ensure safety and convenience during testing.
So this is the best tool in the fields of battery sales, vehicle repair and battery inspection in equipment system associated with lead-acid starting battery.

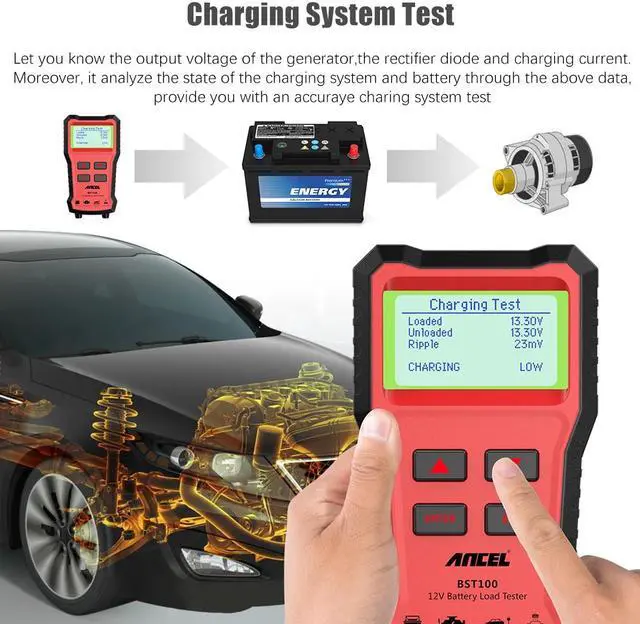

----AncelBST100Description: 1. Identify battery status Good or Replace 2. Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. 3. Check Internal resistance value (Ohm) 4. Display battery life in percentage (%) 5. Battery Cranking Test, load test 6. Battery Charging Test, Ripple Test 7. Support battery ripple test and review test data ----BST100 12V
BatteryTesterFeatures: 1. Fast and smooth running speed with STM-32 chip set hardware 2. Accurate test results, using high precision amplifier and calibrated by professional battery testing tool, BST100 reading accuracy up to 99%. 3. Wide testing range cover from CCA 100- 2000, 3- 220 AH, best in the market. 4. Industry initiative graphical battery voltage real time monitoring, can be analysis battery data more accurate. 5. Unique battery results display in percentage and meter mode. 6. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc. 7. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery. 8. Directly test the battery with loss of electricity, no need to full charge before testing. 9. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB. 10. BST100 is used to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL EPB cell ----BST100
SupportLanguages: English, French, German, Russian, Spanish, Italian ----FAQ
Area: 6-1 What is the measurement principle of this tester? The battery will gradually be aged with an increase in time. The main reason is that it can no longer generate some effectively chemical reaction because of the aging of the surface of the battery plate. International Electric and Electronic Engineer Association (IEEE) formally looks the Conductivity Test as one of the standards of checking lead-acid storage batteries. It points out from
IEEEstandard1118-1996that: Conductivity Test is used to test AC current generated by putting the known frequency and amplitude AC signal to both sides of the battery. AC conductivity value is the ratio of AC current signal which keeps the same phase with AC voltage and the AC voltage. This tester is designed from this principle actually. 6-2 Is the result affected by the installation of negative current for the vehicle? All the negative currency will affect the result. Therefore please remove the negative currency before checking, to achieve the accurate data. 6-3 Can this tester predict when the battery goes down? The internal resistance of the sealed lead-acid battery is complicated. It is generated by ohm internal resistance, concentration polarization internal resistance, chemical reactions internal resistance and interference effect caused by double capacitances charging. The ingredient of internal resistance and its relative content will change with different
