MikroTik - MTAS-5G-19D120 - (MANT 19s) 19 dBi Sectorial Antenna with Angle of Opening of 120 with Frequency Range of

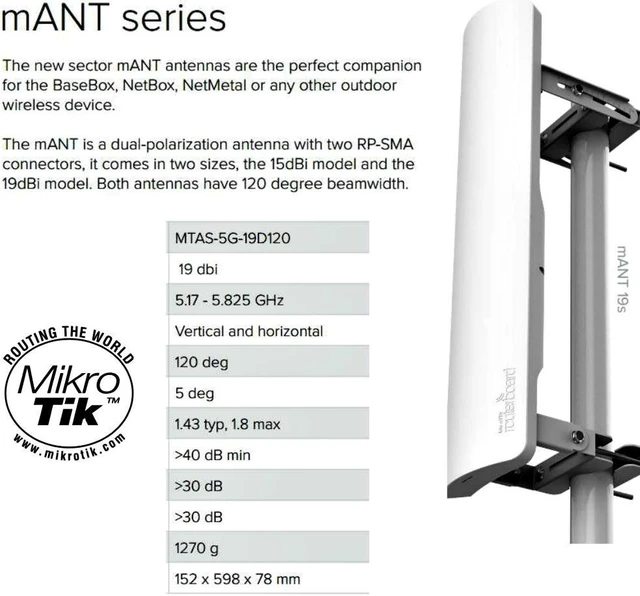

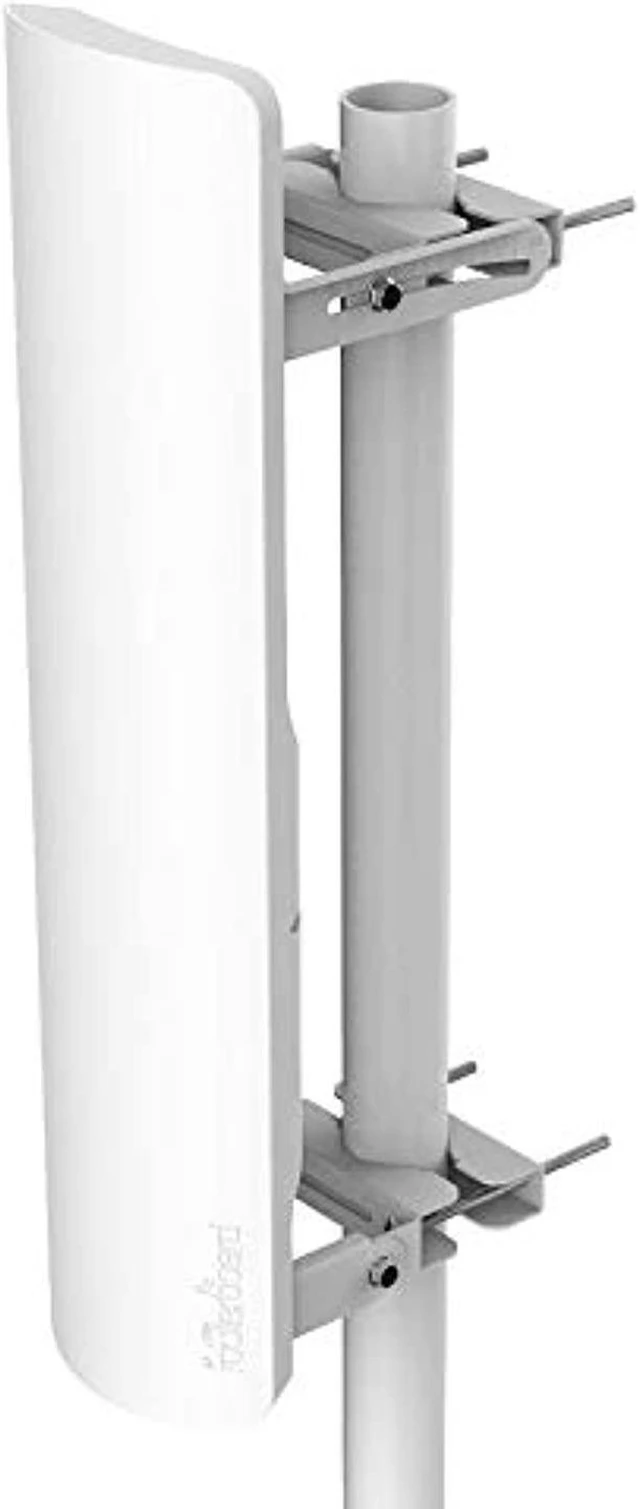

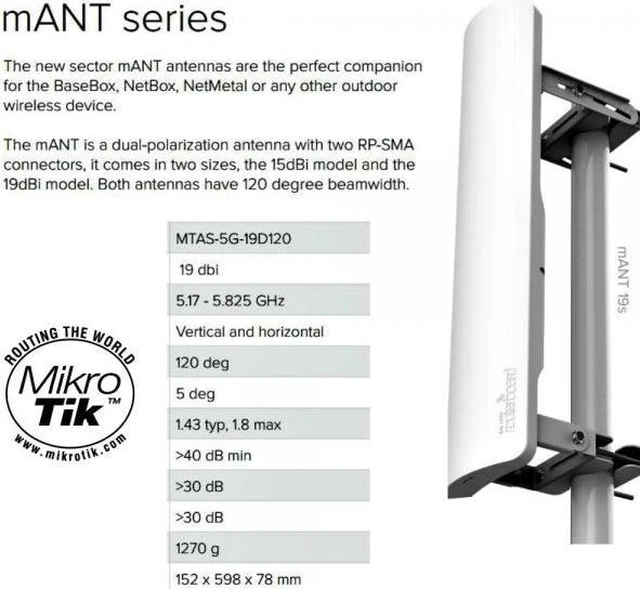

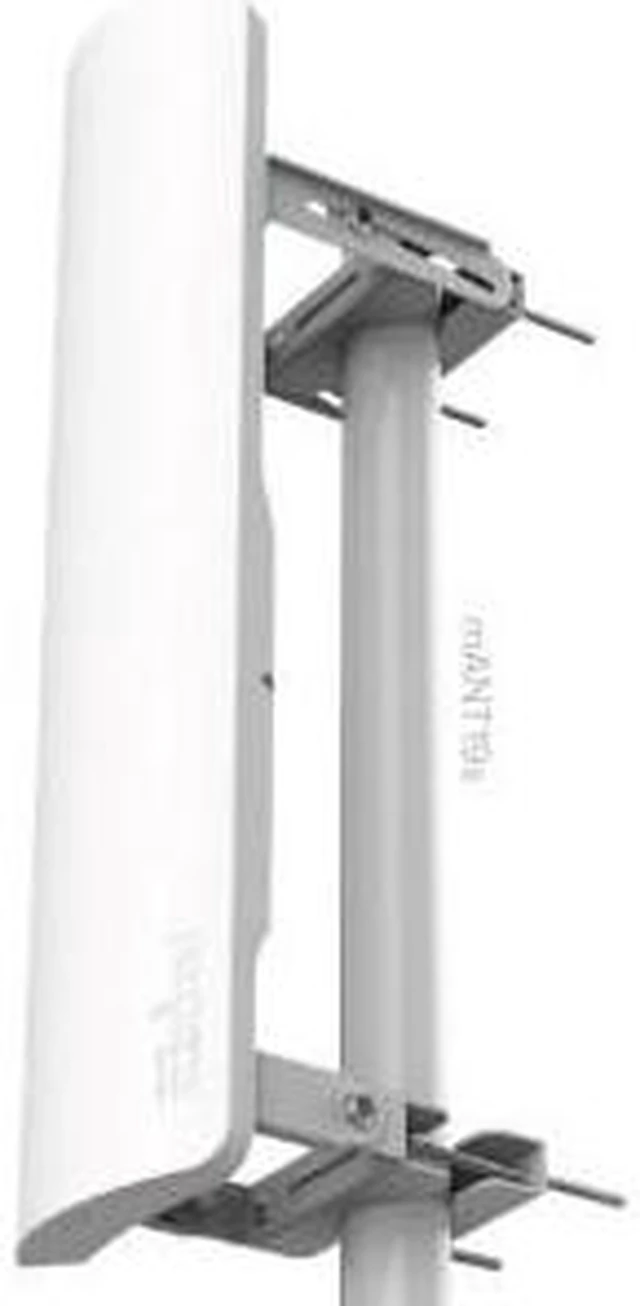

MTAS-5G-19D120 - The mANT is a dual-polarization antenna with two RP-SMA connectors. mANT series - 19dBi Model. The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth. The mANT19s comes with metallic U bolt type mounts.
Product Specifications: •
Antenna Gain: 19dBi •
Frequency Range: 5.17 - 5.825GH z •
Polarization: Vertical and horizontal • 3DB
Beamwidth - azimuth: 120deg • 3DB
Beamwidth - elevation: 5deg •
VSWR: 1, 43typ, 1.8 max •
Port to port isolation: >40dB min •
Front-to-back ratio: >30dB •
Cross Polarization: >30dB •
Connector: 2 x RP-SMA Technical Data Sheets and
User Manuals: mANT19s Data Sheet Sector m ANT antennas are the perfect companion for the Base Box, Net Box, Net Metal or any other outdoor wireless device. The m ANT is a dual-polarization 19d Bi 120-degree beamwidth antenna with two RP- SMA connectors. It comes with metallic U bolt type mounts.
NOTA IMPORTANTE: No incluye Jumpers Product specifications Details Product code MTAS-5 G-19 D120 Beamwidth 120 deg (azimuth) 5 deg (elevation) Connector two RP- SMA Cross Polarization >30 d B Diameter x Depth 152 x 598 x 78 mm Frequency Range 5.17 - 5.825 GHz Front-to- Back Ratio >30 d B MTBF Approximately 100'000 hours at 25 C Polarization Vertical and horizontal Port to Port Isolation >40 d B min VSWR 1.43 typ, 1.8 max Weight 1270 g
