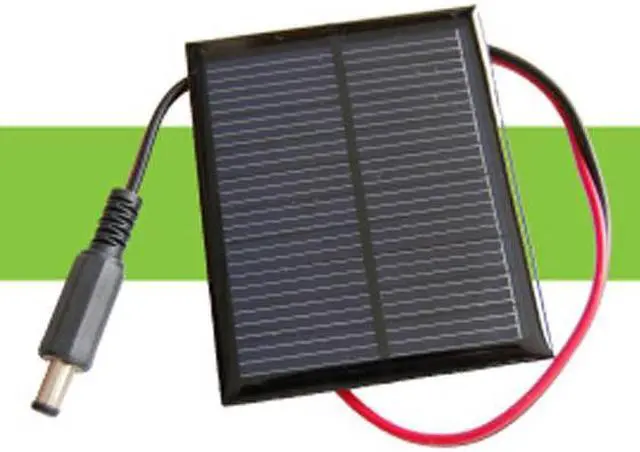

SC20036 - SOLAR PANEL 36V 200MA 33X33IN. W/2.1MM PLUG TERMINATION

Maximum efficiency MonoCrystalline solar cells. Encapsulated with low reflecting water clear epoxy to protect against physical impact and harsh outdoor environments. ^{Helpful Tips}

Calculating Watts Power [Watt] = Voltage [Volt] x Current [Ampere]

Wiring Multiple Solar Panels

^{Series Wiring}

If your application needs a higher voltage supply source you can wire multiple solar panels in series. You can wire the positive terminal of solar panel #1 to the load and connecting the negative terminal of solar panel #1 to the positive terminal of solar panel #2. In this wiring the total voltage delivered to the load will be doubled and the rated current supply will remain the same.

^{Parallel Wiring}

If your application needs more power you can wire multiple solar panels in parallel. By connecting the positive terminal of solar panel #1 to the positive terminal of solar panel #2 and connecting the negative terminal of solar panel #1 to the negative terminal of solar panel #2 the maximum current that can be delivered to the load will be doubled. The rated voltage will remain the same.
