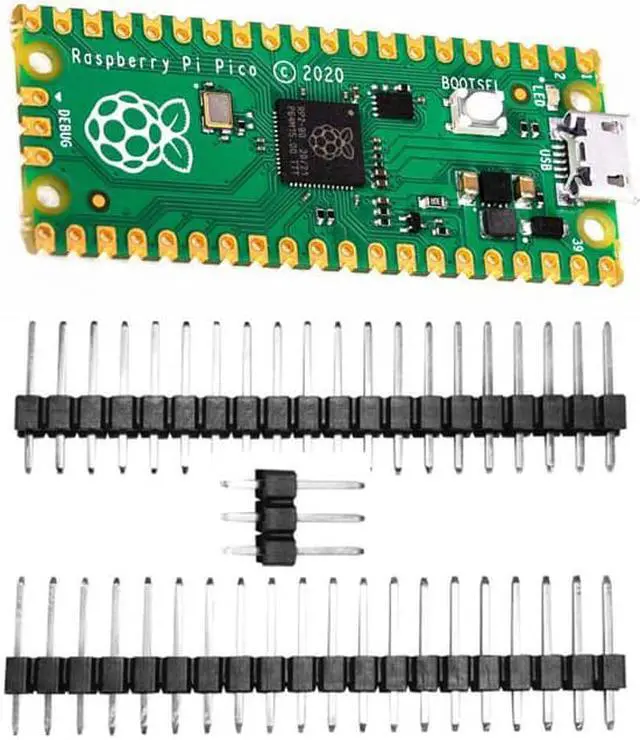

1432 - RASPBERRY PI PICO AND HEADER SET

The Raspberry Pi Pico is the first product built on silicon designed inhouse at Raspberry Pi (Raspberry Silicon). At its heart is RP2040 a Raspberry Pidesigned chip which features two ARM CortexM0+cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

A a solderin header (like two sets of  cut into 2x20 strips and 1x3 strip) Once the header pins are in place the Pico can be attached directly to a breadboard for wiring and prototyping.

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dualcore Arm Cortex M0+ processor flexible clock running up to 133 MHz
• 264KB of SRAM and 2MB of onboard Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Lowpower sleep and dormant modes
• Draganddrop programming using mass storage over USB
• 26 × multifunction GPIO pins (3.3V ONLY)
• 2 × SPI 2 × I2C 2 × UART 3 × 12bit ADC 16 × controllable PWM channels
• Accurate clock and timer onchip
• Temperature sensor
• Accelerated floatingpoint libraries onchip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
