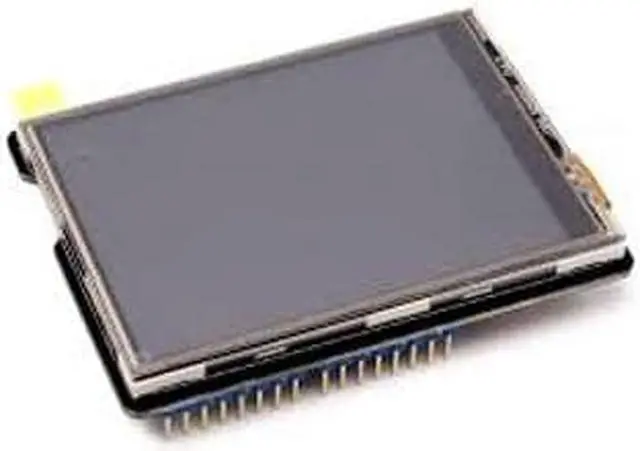

2760382 - TFT SHIELD 28IN COLOR W/MICROSD SLOT COMPATIBLE WITH ARDUINO

2.8 diagonal color touchscreen TFT
240x320 resolution 18bit (262 000) color our library uses 16 bit color mode
ILI9341 (datasheet) controller with built in video RAM buffer
STMPE610 touch screen controller
High speed SPI display with digital SPI touchscreen driver
The display uses digital pins 139. Touchscreen controller requires digital pin
8. microSD pin requires digital #4. That means you can use digital pins 2 3 5
6 7 and analog 05. Pin 4 is available if not using the microSD
Works with any classic Arduino '328. Solder closed three jumpers to use the ICSP
header for use with Leonardo or Mega
Onboard 3.3V @ 300mA LDO regulator current draw depends on usage but is about
100mA for the display and touchscreen
4 white LED backlight. On by default but you can connect the transistor to a
digital pin for backlight control
4wire resistive touchscreen attached to STMPE610 controller
