NETIS PE6108H Unmanaged 8-Port Ethernet Switch with 4 PoE Port 62W IEEE802.3af
- 8 10/100Mbps RJ45 port, including 4 PoE ports (Port 1-Port 4)
- 4K MAC Address Table
- PoE
Specs
Reviews (1)
Learn more about the Netis Systems PE6108H
| Brand | NETIS |
|---|---|
| Model | PE6108H |
| Format | Desktop |
|---|---|
| Standards | IEEE 802.3u 100BASE -TX, IEEE 802.3 10BASE -T, IEEE 802.3af, IEEE 802.3x Flow Control |
| Primary Ports | 8 10/100Mbps RJ45 port, including 4 PoE ports (Port 1-Port 4) |
|---|---|
| Primary Port Speed | 10/100Mbps |
| MAC Address Table | 4K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | No |
| PoE | 15.4 Watts (Max. each port) 62 Watts (Max. all ports) |
|---|---|
| Stackable | No |
| SNMP | No |
| QoS | No |
| LACP | No |
| Layer | 1 |
| Port Mirroring | No |
| Module Support | No |
| Power | 100-240 V AC/50-60Hz PoE Power: 48V/1.45A |
| Features | 8 10/100Mbps Auto-Negotiation RJ45 ports with PoE function(Port 1-4) Complies with IEEE 802.3af standards Supports PoE power up to 15.4W for each PoE port, 62W for all PoE ports Supports PoE IEEE 802.3af compliant Powered Device (PD) Supports 4K MAC address table, MAC address auto-learning & auto-aging Supports IEEE 802.3x flow control for Full-duplex mode, Back-pressure flow control for Half-duplex mode ports Plug and play, no configuration required Steel desktop design, with internal power supply |
|---|
| Dimensions | 11.02" x 6.81 x 1.69" (L x W x H) |
|---|---|
| Weight | 4.5 |
| Temperature | Operating Temperature: 0 degree~40 degree Storage Temperature: -40 degree~70 degree |
|---|---|
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |

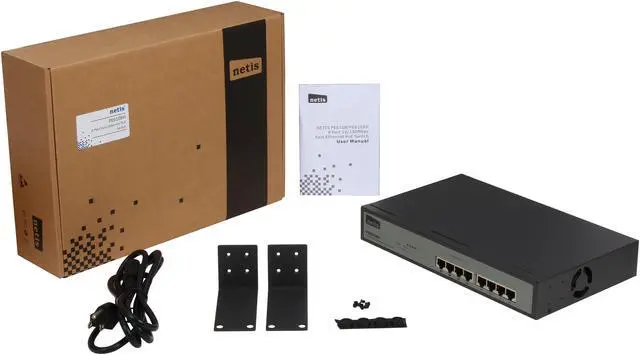

| Package Contents | 1xPE6108H 1xQuick Installation Guide 2xBrackets 1xPower Cord |
|---|
| Case | Metal Case |
|---|
| First Listed on Newegg | February 12, 2014 |
|---|
