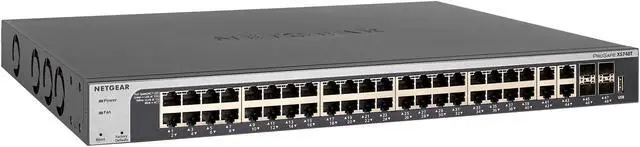

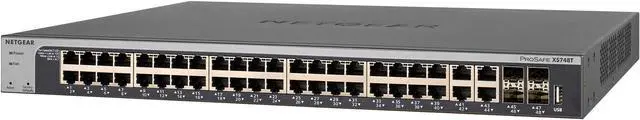

NETGEAR 48-Port 10G Ethernet Smart Switch (XS748T) - Managed with 4 x 10 Gigabit SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection

Name: NETGEAR 48-Port 10G Ethernet Smart Switch (XS748T) - Managed with 4 x 10 Gigabit SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
Brand: Netgear Inc.
SKU: N82E16833122845
Price: 6299.00 CAD
Availability: InStock
Rating: 4 (15 reviews)

(15) Write a Review

44 10G Ethernet ports
4 x 1G/10G SFP+ ports
Management software with easy-to-use GUI interface offers refined control for secure setup, access, and SNMP (NMS 300) management.
Supports desktop or rackmount placement, and includes all the necessary mounting hardware in the box
Reduces fan noise to protect your home office or business environment.
Covered by ProSAFE Lifetime, an industry-best Lifetime Limited Hardware Warranty, Next Business Day Replacement and 24/7 chat with a NETGEAR expert
Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode.
Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.
Dimensions in Inches: 17.3L x 12.2W x 1.7H; Weight in Pounds: 13.8

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (15)

MAIN OVERVIEW FEATURES:

Total Number of Network Ports: 44
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 44 x 10 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet,Gigabit Ethernet
Network Technology: 10GBase-SR,1000Base-SX,1000Base-LX,10GBase-LR,10GBase-T
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Shared SFP Slot: Yes
Number of SFP+ Slots: 4
Layer Supported: 3
Manageable: Yes
Power Source: Power Supply
Redundant Power Supply Supported: No
Compatible Rack Unit: 1U
Form Factor: Rack-mountable,Desktop
Height: 1.7"
Width: 17.3"
Depth: 12.2"
Weight (Approximate): 13.78 lb

Brand	NETGEAR
Series	ProSafe
Model	XS748T-100NES

Format	Rackmount
Standards	IEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4) IEEE 802.3z Gigabit Ethernet 1000BASE-SX / LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad Trunking (LACP) IEEE 802.1AB LLDP with ANSI / TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service IEEE 802.1D Spanning Tree (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1x RADIUS Network Access Control IEEE 802.3az Energy Efficient Ethernet (EEE)
Network Management Type	Smart

Primary Ports	44 x 1G/10G copper ports + 4 (dedicated) 1G/10G SFP+ (fiber) ports
Primary Port Speed	10 Gbps

MAC Address Table	16K
Switching Method	Store and Forward
VLAN Support	Yes
Jumbo Frames	10KB

Temperature	Operating temperature: -5 degree to 55 degree Celsius (23 degree to 131 degree Fahrenheit) Storage temperature: -10 degree to 70 degree Celsius (-14 degree to 158 degree Fahrenheit)
Humidity	Operating Humidity: 90% maximum relative humidity (RH), non-condensing Storage Humidity: 95% maximum relative humidity, non-condensing

NETGEAR 48-Port 10G Ethernet Smart Switch (XS748T) - Managed with 4 x 10 Gigabit SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection

Learn more about the Netgear Inc. XS748T-100NES

Customer Reviews of the Netgear Inc. XS748T-100NES

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Buffer Memory	3MB
SNMP	Yes
Port Mirroring	Yes
Power	Max power (worst case, all ports used, line-rate traffic) (Watts): 262.8W Min power (link-down standby) (Watts): 97.6W Heat Dissipation (max and min) (BTU / hr): Max: 897.17 BTU, Min: 333.14 BTU

Dimensions & Weight
Dimensions	1.69" x 17.32" x 12.20"
Weight	13.78 lbs.
