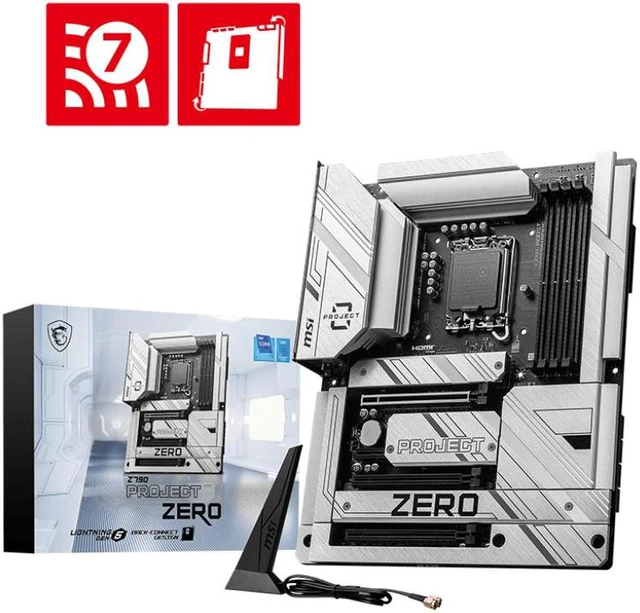

Main image of MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

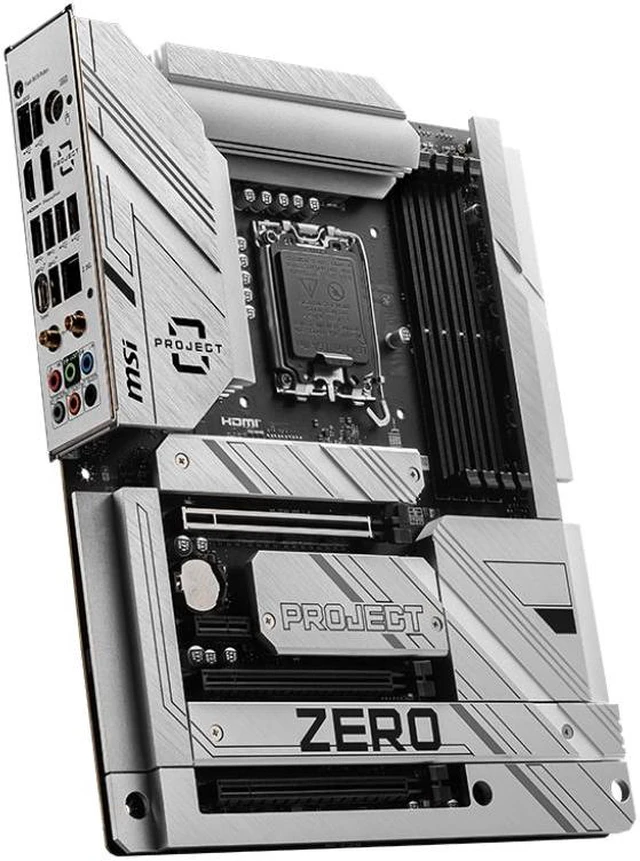

Alt view image 2 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

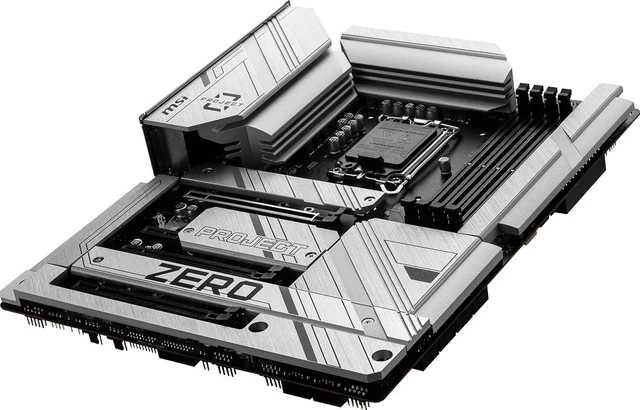

Alt view image 3 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

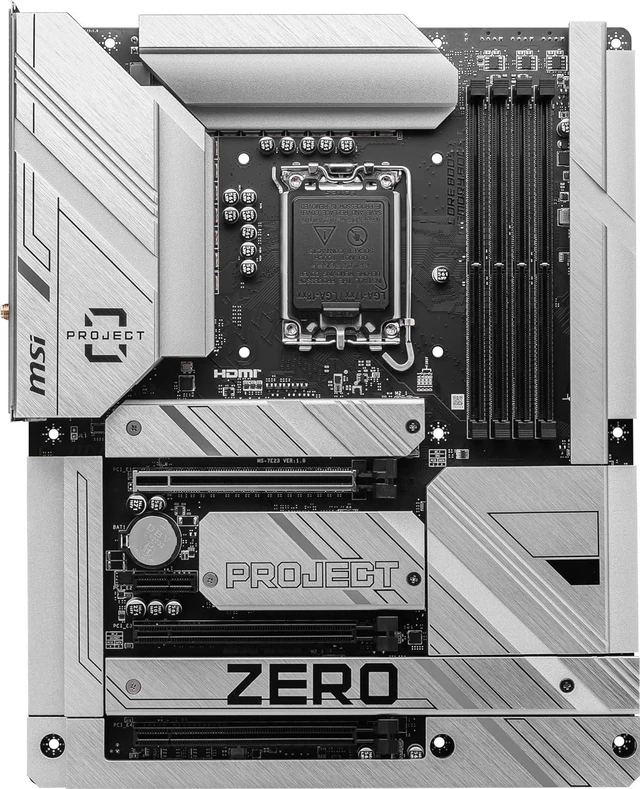

Alt view image 4 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

Alt view image 5 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

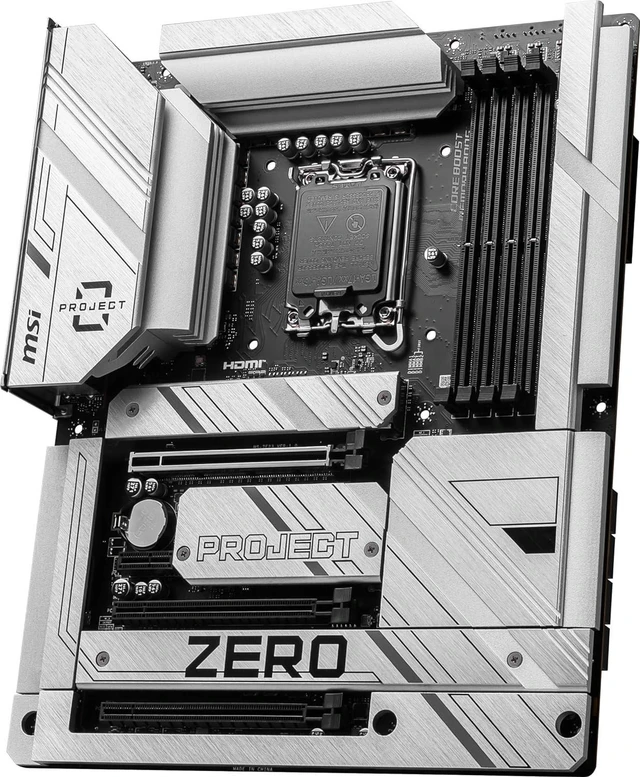

Alt view image 6 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

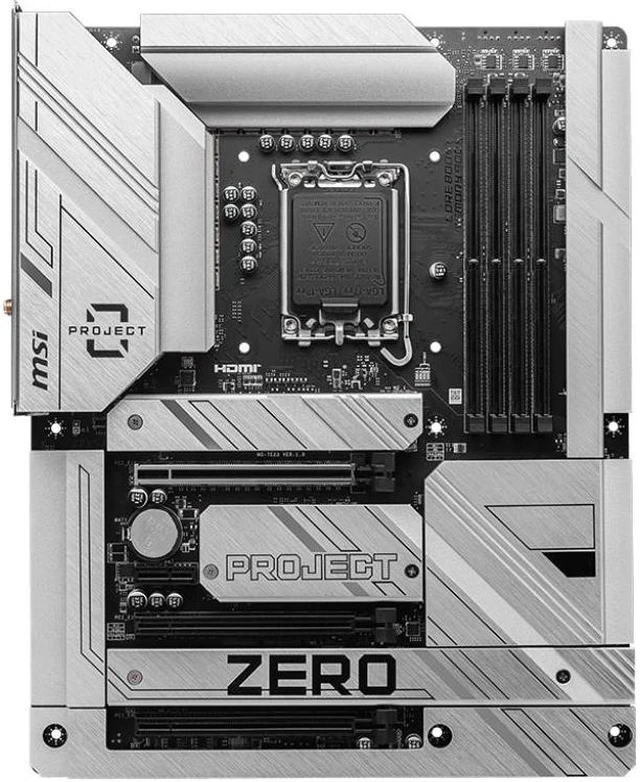

Alt view image 7 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

Alt view image 8 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

Alt view image 9 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

Alt view image 10 of 10 - MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

Shop All MSI Products | Visit Soft_9 Store

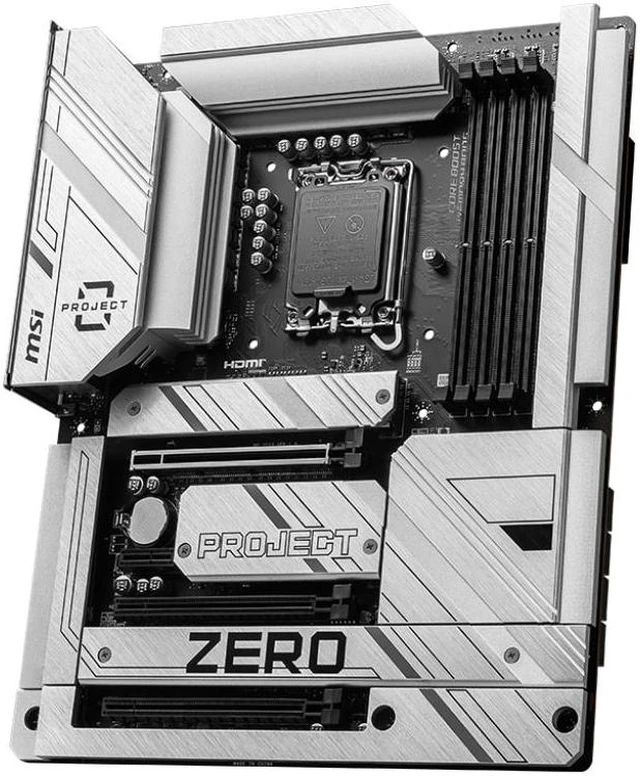

MSI Z790 PROJECT ZERO LGA1700 Wi-Fi 7 DDR5 Back Connect Design ATX Motherboard

REFURBISHED

Be the first to review this product...

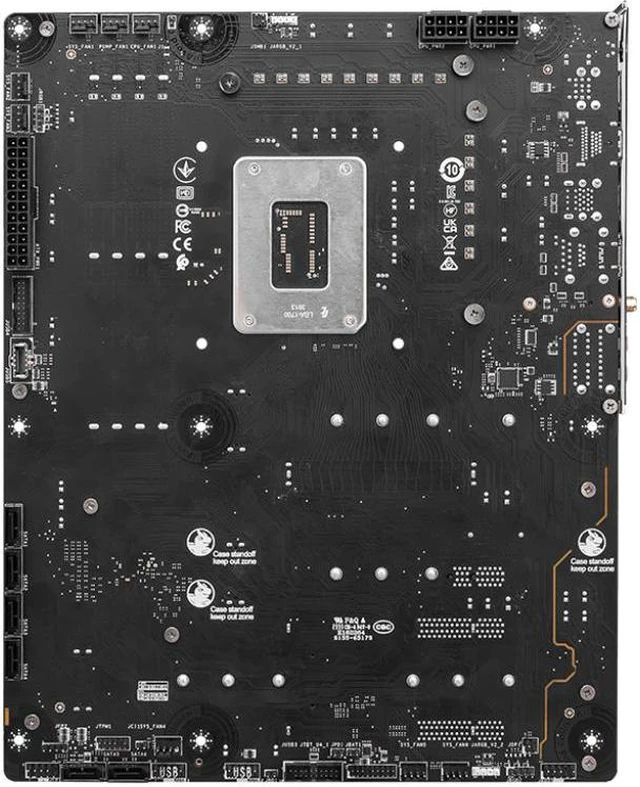

Back-Connect Design:Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable
management.
Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 7:The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network
experience.
Lightning USB 20G:Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR:M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Core Boost:With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost

Overview

Specs

Reviews

Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable
management.
Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 7: The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8G bps, which is 2.4 times faster than Wi-Fi 6/6E.
2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network
experience.
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M. 2
Shield FROZR: M. 2 thermal accessory keeps M. 2 SSDs safe while preventing throttling, making them run faster.
Core Boost: With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost

Model
Brand	MSI
Model	Z790 PROJECT ZERO

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Maximum Memory Supported	192GB
Channel Supported	Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x16	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Onboard Audio
Audio Channels	Realtek® ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output

Onboard LAN
Max LAN Speed	Intel® 2.5Gbps LAN
Wireless LAN	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Bluetooth	Yes

Rear Panel Ports

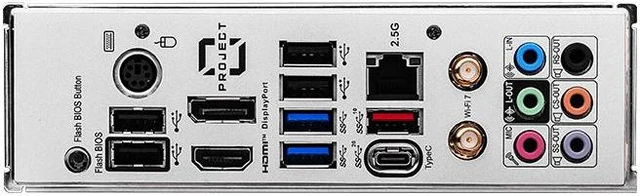

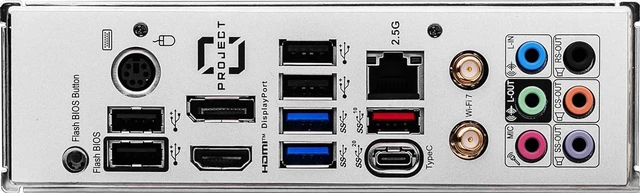

Back I/O Ports	Mouse / Keyboard DisplayPort 1.4 USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors Flash Bios Button USB 2.0 HDMI™ 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A

Internal I/O Connectors
Other Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)

Software Feature
Windows 11	Support for Windows® 11 64-bit, Windows® 10 64-bit

Physical Spec
Form Factor	ATX (Back Connect)
Dimensions (W x L)	243.84mmx304.8mm

Features
Features	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR5 Memory, up to 7200+(OC) MHz Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works Audio Boost: Reward your ears with studio grade sound High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
