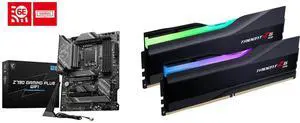

MSI Z790 GAMING PLUS WIFI LGA 1700 Intel Z790 SATA 6Gb/s ATX DDR5 PCI-E x16 slot Wi-Fi 6E 2.5Gbps LAN 4x M.2 EZ Debug LED Motherboard
- Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Latest DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory
- Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
- maximum transfer speed.
- Extended Heatsink Design:MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Quadruple M.2 Connectors:Onboard quadruple M.2 connectors for the maximum storage performance.
- M.2 Shield FROZR:M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Core Boost:With premium layout and fully digital power design to support
- more cores and provide better performance.
- 2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network
- experience.
- * BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
Specs
Reviews (1,038)
Learn more about the MSI Z790 GAMING PLUS WIFI
| Best Seller Ranking | #72 in Intel Motherboards |
|---|
| Brand | MSI |
|---|---|
| Model | Z790 GAMING PLUS WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Max. overclocking frequency: - 1DPC 1R Max speed up to 7200+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PCI Express 5.0 x16 | PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16 |
|---|---|
| PCI Express 4.0 x16 | PCI_E3 supports up to PCIe 4.0 x4 |
| PCI Express 3.0 x16 | PCI_E4 supports up to PCIe 3.0 x1 |
| PCI Express x1 | PCI_E2 supports up to PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 (Support PCIe 4.0 x4 & SATA) / 2 x M.2 (Support PCIe 4.0 x4) |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio |
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Bluetooth 5.3 ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Back I/O Ports | 1 x Keyboard / Mouse 1 x DisplayPort 3 x USB 2.0 1 x 2.5G LAN Port 1 x Wi-Fi / Bluetooth Antenna 6 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI 2.1 Port 2 x USB 3.2 Gen 1 5Gbps Type-A 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x USB 3.2 Gen 2 10Gbps Type-A |
|---|
| Onboard USB | 4 x USB 2.0 ports 4 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports |
|---|---|
| Other Connectors | 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector (JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector (JRGB) 1 x TPM pin header (Support TPM 2.0) 1 x USB4 card connector (JTBT_U4_1, supports RTD3) |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | 4 x EZ Debug LED |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x Power Connector (ATX_PWR) 2 x Power Connector (CPU_PWR) |
| First Listed on Newegg | January 16, 2024 |
|---|
