$250^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from United States.

Sold by soft_9

5 (2 seller ratings)

Shipped by soft_9

Price alert

Add to Wish List

Meet Your Seller

soft_9

See Seller Store

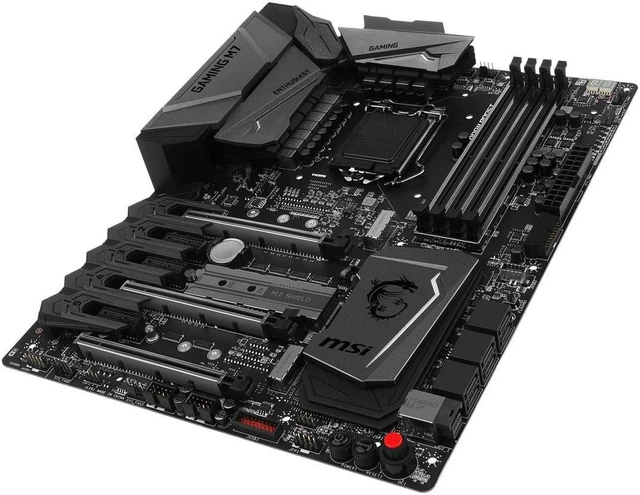

Main image of MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

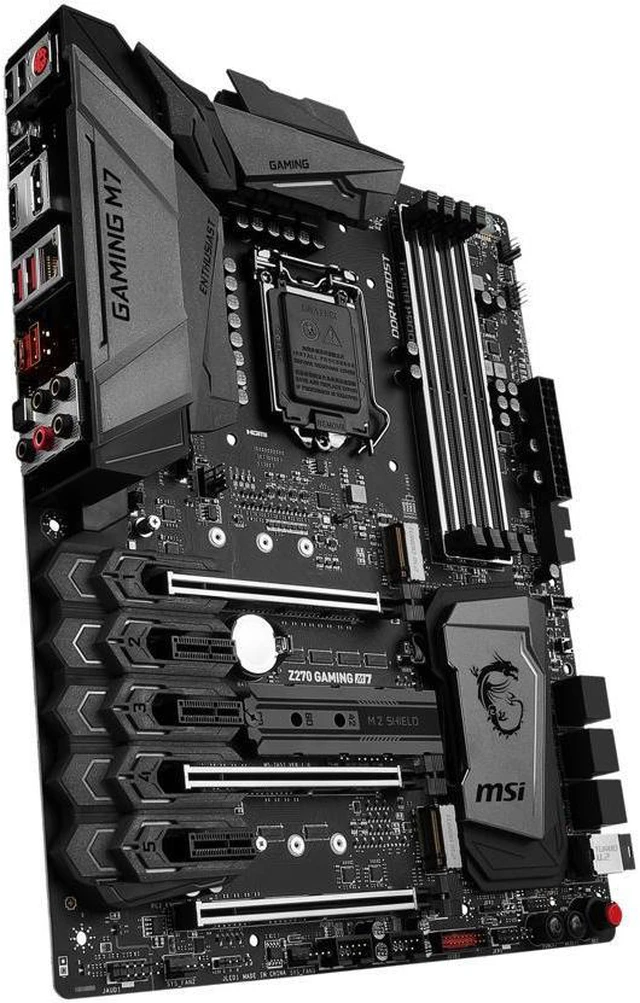

Alt view image 2 of 6 - MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

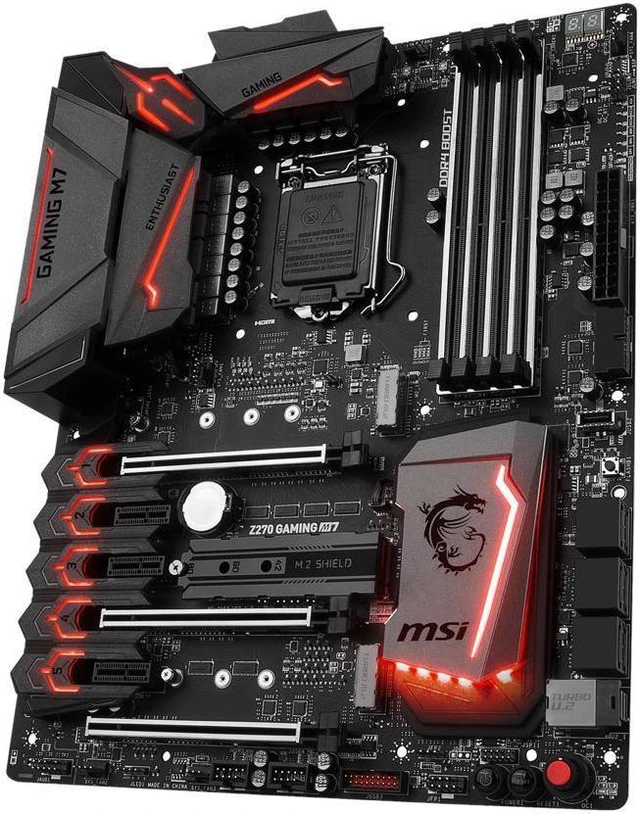

Alt view image 3 of 6 - MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

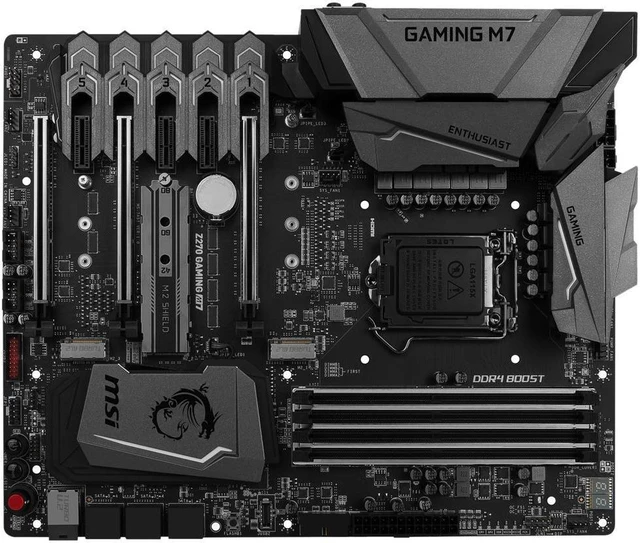

Alt view image 4 of 6 - MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

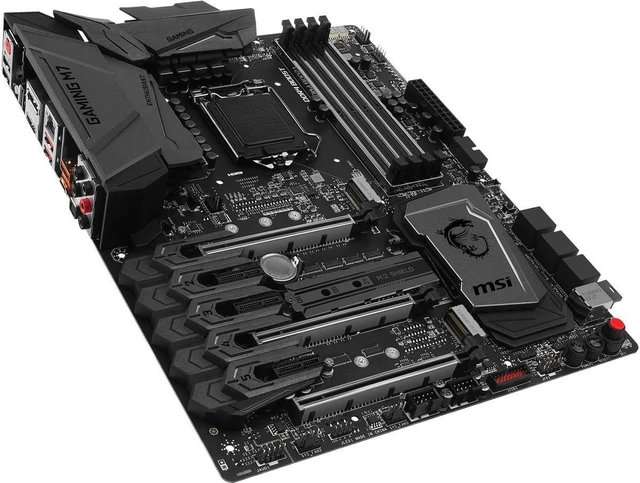

Alt view image 5 of 6 - MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

Alt view image 6 of 6 - MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

Shop All MSI Products | Visit Soft_9 Store

MSI Z270 GAMING M7 LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboards

REFURBISHED

Be the first to review this product...

Intel Z270
Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
7th Gen processors support DDR4 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133

Overview

Specs

Reviews

The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

Model
Brand	MSI
Model	Z270 GAMING M7

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Supported CPU Technologies	* Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel Z270

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	7th Gen processors support DDR4 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	3 x PCIe 3.0 x16 slots (support x16/x0/x0, x8/x8/x0, x8/x4/x4 modes)
PCI Express x1	3 x PCIe 3.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s ports/ *
M.2	1 x U.2 port ** - Supports up to PCIe 3.0 x4 NVMe U.2 SSD 3 x M.2 slots (Key M)* - M2_1 slot supports up to PCIe 3.0 x4 and SATA 6Gb/s standards, 2242/2260/2280/22110 storage devices - M2_2 slot supports up to PCIe 3.0 x4 standard, 2242/2260/2280 storage devices - M2_3 slot supports up to PCIe 3.0 x4 and SATA 6Gb/s standards, 2242/2260/2280 storage devices - Intel Optane Memory Ready for all M.2 slots* * M.2 and SATA ports maximum support 2 x M.2 PCIe SSDs + 6 x SATA HDDs. The M2_3, U2_1 and SATA 5~6 share the same bandwidth. * Intel Optane Technology is only supported when using 7th Gen processors. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Dual Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Killer E2500
Max LAN Speed	1Gbps

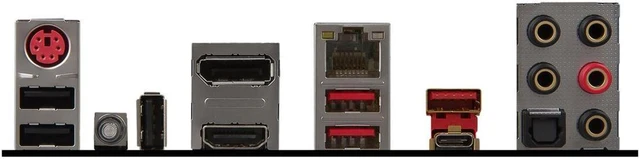

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Gen1 Type-A ports 1 x USB 3.1 Gen2 Type-A port 1 x USB 3.1 Gen2 Type-C port
USB 1.1/2.0	3 x USB 2.0 Type-A ports
S/PDIF Out	1 x Optical
Audio Ports	5 x OFC audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen2 Type-C connector 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x RGB LED connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Low Temperature Booting Jumper 1 x 2-pin Slow mode jumper 1 x 2-pin OC retry jumper 1 x 2-pin OC Force enter BIOS jumper 1 x 2-pin Discharge jumper 1 x 2-Digit Debug Code LED

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-4133+(OC) Memory DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness Mystic Light RGB and Mystic Light Sync: 7 colors / 5 effects controlled in one click with GAMING APP or a mobile device Triple Turbo M.2, Steel Armor, M.2 Shield. Intel Optane Memory Ready, Turbo U.2, Lightning USB 3.1 Gen2 Audio Boost 4 PRO with Nahimic 2: 2x dedicated audio processors for the most immersive gaming experience GAMING LAN with LAN Protect, powered by Killer: The best online gaming experience with lowest latency and bandwidth management BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory and VGA card Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI & AMD Crossfire In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

Additional Information
First Listed on Newegg	August 11, 2026
